Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NB4033HD50 | 3.6 V | 10 Ah | 36 Wh | 1S2P | Active |
| NB4037HD50 | 7.2 V | 5 Ah | 36 Wh | 2S1P | Active |
| NB4037QE50 | 7.2 V | 5 Ah | 36 Wh | 2S1P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

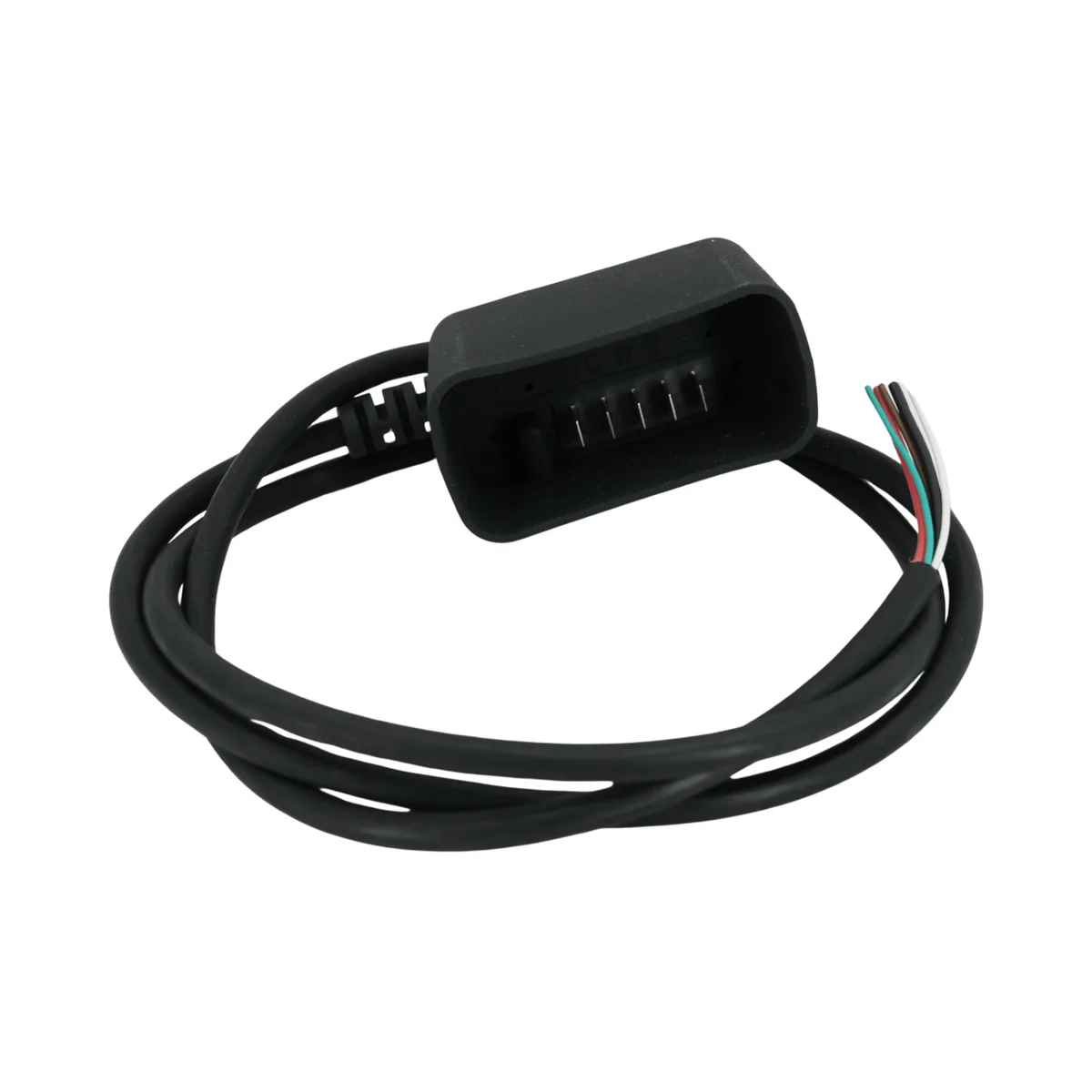

3FT, 5-conductor straight cable for NB403x li-ion smart battery packs. (2) 18awg power conductors (3) 24awg conductors for SMbus
