Specifications (nominal & typical)
Source: datasheet Rev 1.0
Charging
| Functions | Charge |
|---|
Power
| Power supply included | Yes |
|---|---|
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 226.75 × 165.85 × 123.5 mm (8.92 × 6.53 × 4.85 in) |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

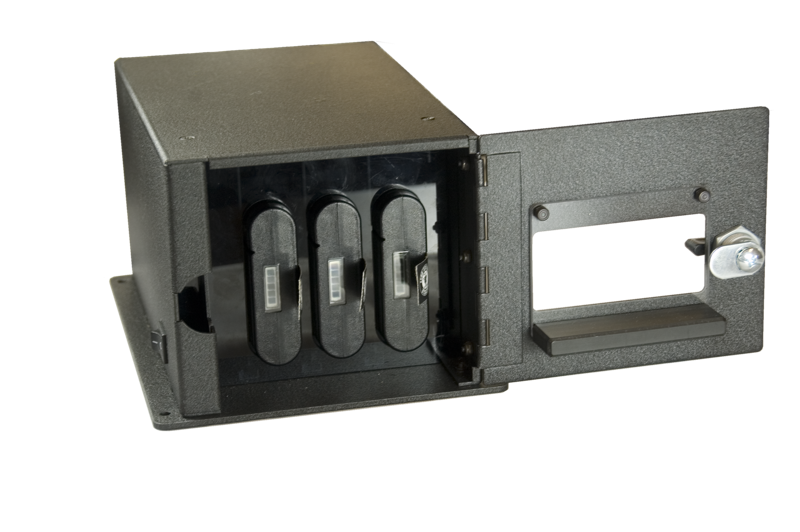

3X POWER BOX PROVIDES UPS POWER WITH INTEGRATED CHARGING. 24VDC/150W output with 150W input charge power for simultaneous charging of on-board batteries.
Ideal for backup power on rack equipment or electronic cart applications.
The new power pack from Inspired Energy works with our 8-cell, 98Wh NH2054QE34 battery packs (sold separately) & includes the following features:
- Onboard chargers with globally compliant AC/DC power adaptor included.
- 24VDC/150W voltage output.(Output Mate: Lemo ERA.1S.302.CLL or PCA.1S.302.CLLC62Z)
- Battery fuel gauge remains visible at all times through the windowed door.
- On-off power switch for full output isolation.
- Ruggedized dustproof case.
- Locking output connector for a secure connection.
To place an order or for additional quantity pricing, please contact us.
