CR10
10-bay battery charger
No longer manufactured. Contact us about the current equivalent.
Specifications (nominal & typical)
Source: current catalog record
Charging
| Bays | 10 |
|---|---|
| Functions | Charge |
Power
| AC cord options | US |
|---|
Mechanical and interface
| Dimensions (L × W × H) | 266.7 × 482.6 × 133.4 mm (10.5 × 19 × 5.25 in) |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

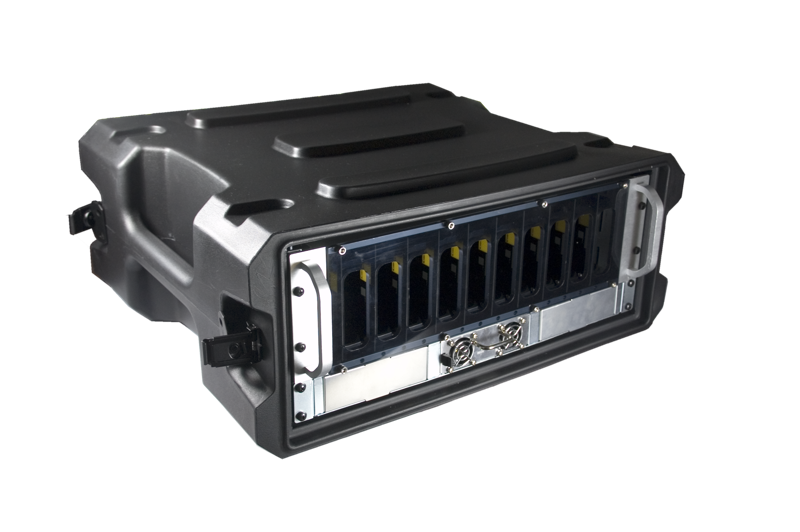

The 10-bay 19-inch rack mountable unit is capable of simultaneous charging, reducing the cycle time for multi battery applications.
The CR-10 is compatible with most of our P-Series batteries, charging each at their maximum rate.
The modular design allows multiple CR-10s to be stacked to provide charging for any quantity of battery packs, and a 48VDC power supply can be specified to suit the quantity of units required.
The unit fits all 19″ racks.(Note: Flight case and 48VDC power supply sold separately) Fully assembled units (QK) are available for purchase.
Please contact us for additional information.
