Specifications (nominal & typical)
Source: datasheet Rev 2.4
Electrical
| Output | Battery voltage or input, whichever is higher |
|---|
Mechanical
| Dimensions (L × W × H) | 2.34 × 3 × 6 in |
|---|
Compliance
| Certifications | CE, FCC Part 15 Class B |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

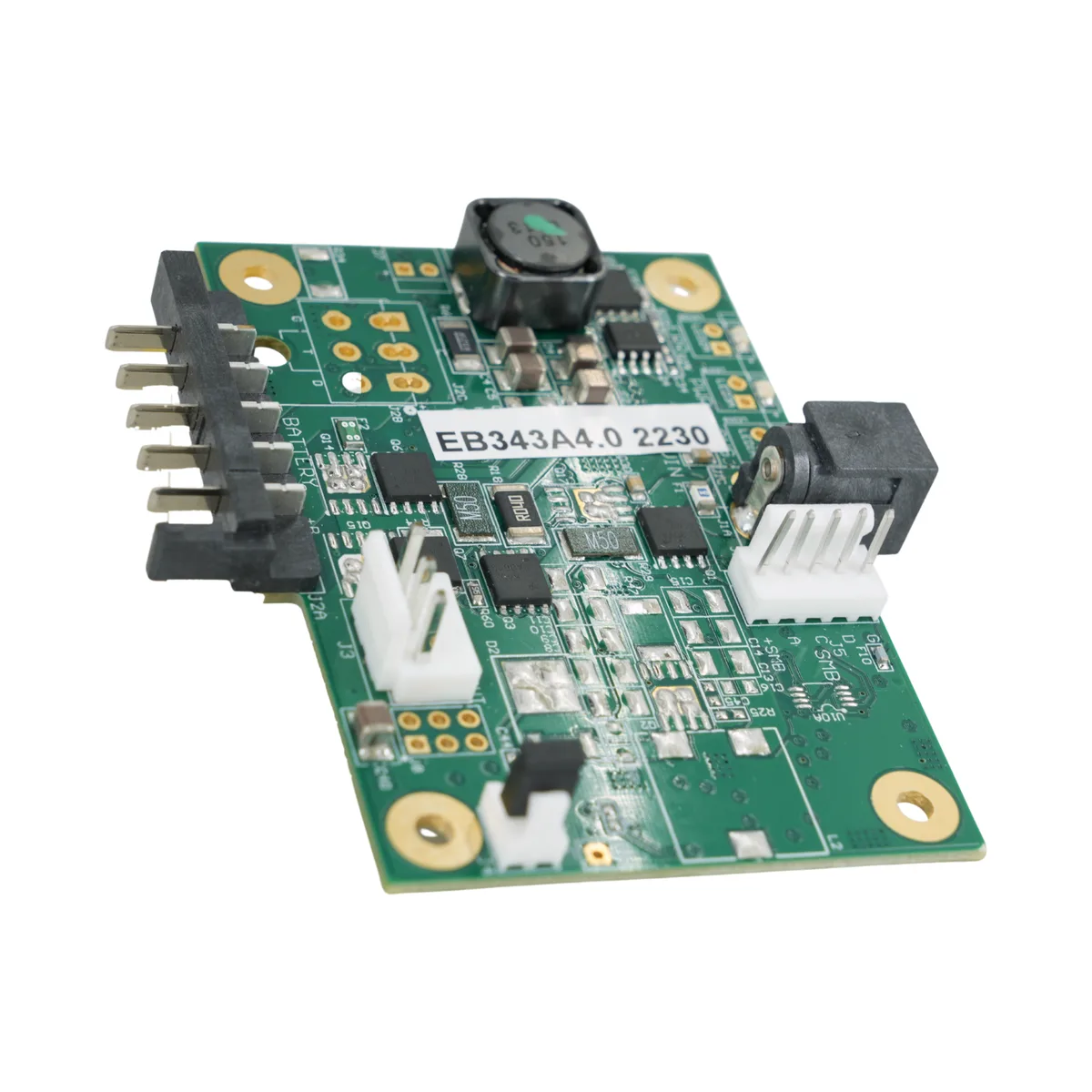

Single Battery Charger Board, N-series (3.6 to 14.4V battery). 24VDC, 60W input. 24VDC input voltage passes thru when present.
Vin: 24VDC Nom Batt V: 3.6 to 14.4V Vo: Batt or Vin
