Specifications (nominal & typical)
Source: datasheet Rev 1.0
Electrical
| Output | Battery voltage or input, whichever is higher |
|---|
Mechanical
| Dimensions (L × W × H) | 2.75 × 5.25 × 6 in |
|---|
Compliance
| Certifications | CE, FCC Part 15 Class B |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

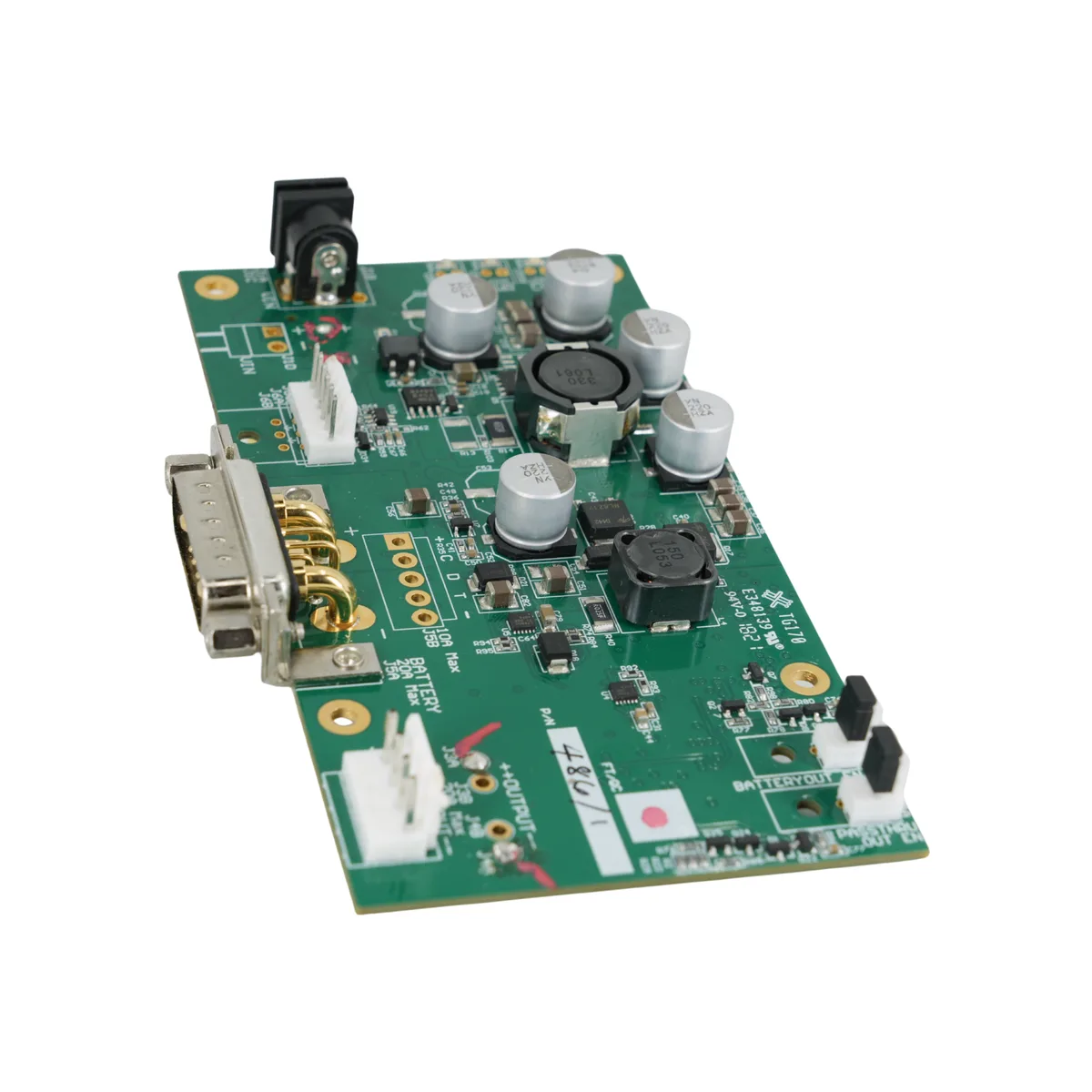

Single Battery Charger Board, P-Series (3.6 to 28.8V battery). 10-40VDC, 60W input.
Vin: 10-40VDC Nom Batt V: 3.6-28.8V Vo: Batt or Vin
