Specifications (nominal & typical)
Source: current catalog record
Charging
| Functions | Charge |
|---|---|
| Packs supported | 2 listed below |
Power
| Power supply included | Yes |
|---|---|
| AC cord options | US, EU, UK |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| ND2057HD34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
| ND2057QE34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

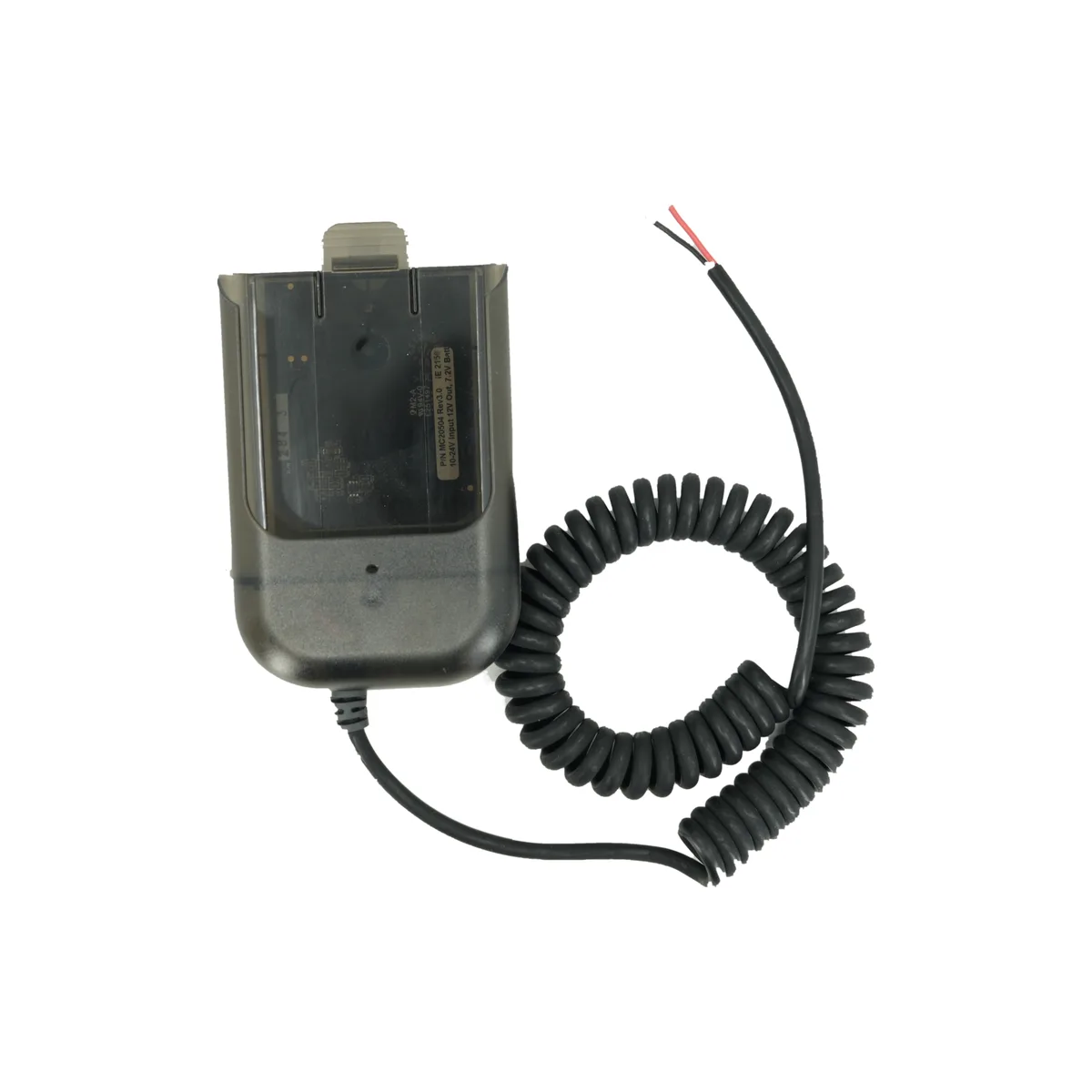

Belt pack holster for NDx057 batteries with integrated charger. 2-wire 6' coiled cable to bare leads (no connector) with 12Vdc output. 10-24Vdc input with power supply, AC mains cord and vehicle cable.
Compatible with 4 cell, ND2057 & ND3057 battery packs To place an order or for additional quantity pricing, please contact us.
