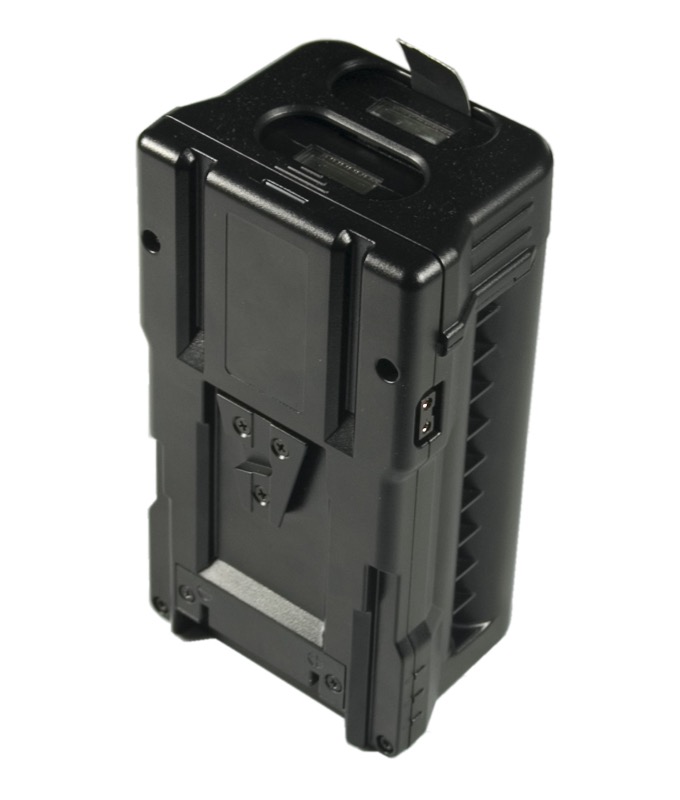

Introducing our standard V-mount holsters.
Coupled with our NH2054 battery yields an output rated at 14.4V, 16A, 196Wh of available power.
Complete with (2) D-tap at 14.4V, 5A and (1) USB 2.0 Type A output at 5V, 2.1A for peripheral support.
The adapter will function with one battery allowing for hot-swapping of the batteries.
Redundant safety protection is provided by constant communications between the battery and adapter by monitoring the battery reported temperature, voltage and current.
Contact Inspired Energy for further details.
