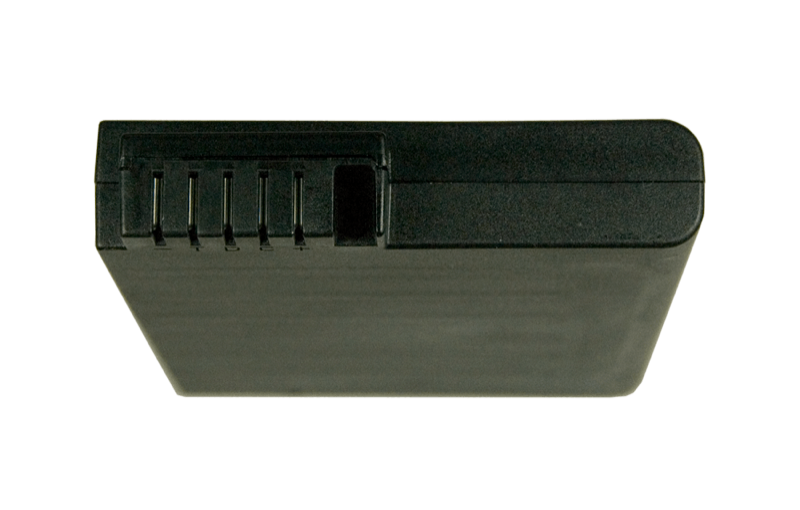

Ni2020HD24
10.8 V smart lithium-ion battery
No longer manufactured. Contact us about the current equivalent.
Specifications (nominal & typical)
Source: datasheet Rev 4.9
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 7.2 Ah |
| Energy | 78 Wh |
| Volumetric energy density | 290 Wh per litre |
| Gravimetric energy density | 154 Wh per kg |
| Maximum discharge current | 6 A |
| Power | 45 W |
| Chemistry | Lithium-ion |
| Cells | 9 × 18650 |
| Configuration | 3S3P |
Mechanical
| Dimensions (L × W × H) | 149.1 × 89 × 20.3 mm (5.9 × 3.5 × 0.8 in) |
|---|---|
| Weight | 506 g (1.12 lb) |
| Form factor | Rectangular |
| Device cavity | 21mm x 90 mm cross section |
| Ingress protection | None |
Temperature limits
| Storage | −20 °C to +60 °C |
|---|
Interface
| Mating connector | 5-Pin Standard Connector |
|---|
Compliance and shipping
| Certifications | EMC Directive, Low Voltage Directive, Battery Directive, RoHS, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 6.9 g |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compare with its family
Volume pricing available on every part.
 Ni2020HD24 This part |  Ni2020HD29 Same family | |
|---|---|---|
| Voltage | 10.8 V | 10.8 V |
| Capacity | 7.2 Ah | 8.4 Ah (differs) |
| Energy | 78 Wh | 91 Wh (differs) |
| Max discharge | 6 A | 6 A |
| Power | 45 W | 45 W |
| Cells | 9 × 18650 | 9 × 18650 |
| Configuration | 3S3P | 3S3P |
| Dimensions (mm) | 149.1 × 89 × 20.3 | 149.1 × 89 × 20.3 |
| Volume (mm³) | 269,379 | 269,379 |
| Weight | 506 g | 506 g |
| Gravimetric density | 154 Wh per kg | 180 Wh per kg (differs) |
| Discharge temperature | - | −30 °C to +60 °C (differs) |
| SoC display | - | Push button 4-bar LED (differs) |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | Quote | $198.60 |
