Specifications (nominal & typical)
Source: current catalog record
Charging
| Bays | 4 |
|---|---|
| Functions | Charge, Calibrate |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 400 × 203 × 159 mm (16 × 8 × 6.25 in) |
|---|---|
| Mating connector | 7-Pin D-Sub |
Compliance
| Certifications | REACH |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

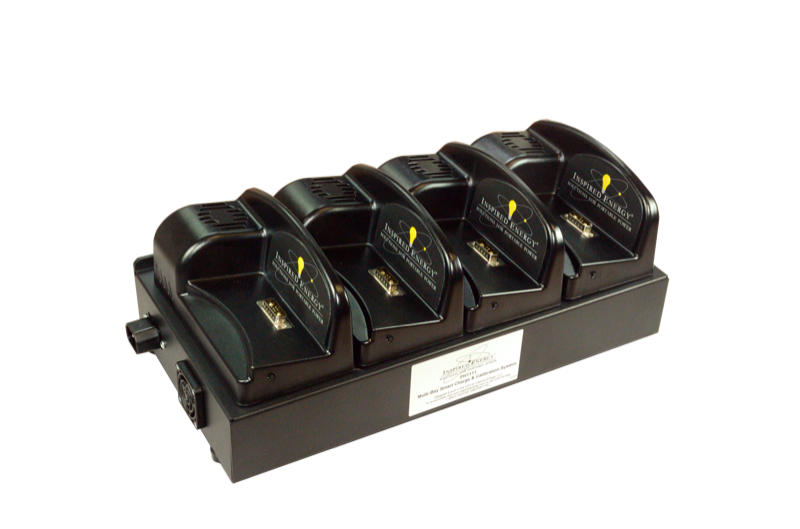

The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted.
While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery.
Variants are available for use in North America (PH1111A), Europe (PH1111E) or the UK (PH1111U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility.
Compliant to the current environmental standards for REACH/RoHS2.
CE/FCC & customs Declarations are available below.
To place an order or for additional quantity pricing, please contact us.
