Specifications (nominal & typical)
Source: datasheet Rev 1.1
Charging
| Functions | Charge |
|---|
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 92 × 88 mm (7 × 3.6 × 3.5 in) |
|---|---|
| Mating connector | 7-Pin D-Sub |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

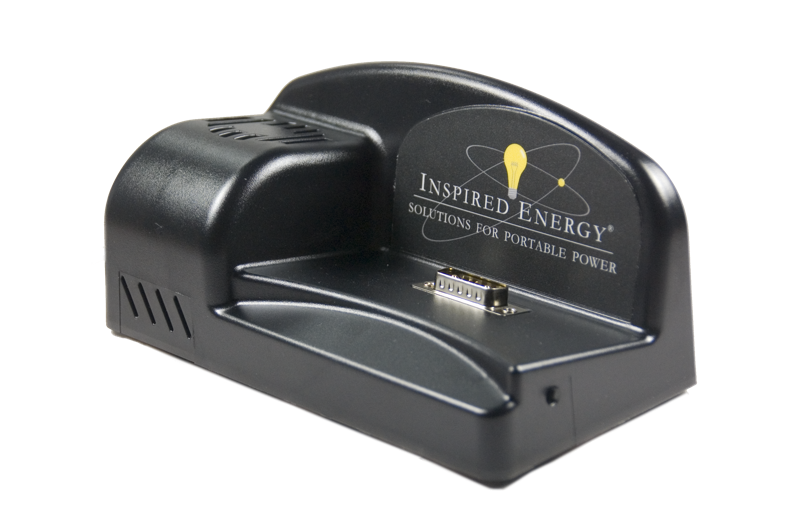

The PM4000 is a standalone desktop smart standard battery charger providing charge to all the Inspired Energy Brand "P" series smart standard packs and hybrids irrespective of size, shape, voltage, cell chemistry or capacity.
Complete with a medical grade universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.
Qty 1-9: To place an order or for additional quantity pricing, please contact us.
