Specifications (nominal & typical)
Source: datasheet Rev 1.1
Charging
| Bays | 1 |
|---|---|
| Functions | Charge |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 92 × 88 mm (7 × 3.6 × 3.5 in) |
|---|---|
| Mating connector | 7-Pin D-Sub |
Compliance
| Certifications | REACH, RoHS3 |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

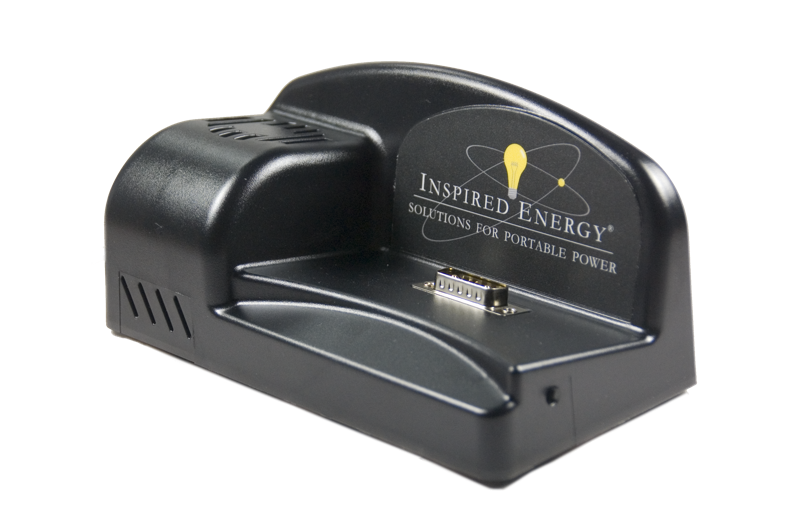

The PM4000A SMbus desktop battery charger is a standalone unit providing charge to the Inspired Energy P-series battery products.
Complete with a Class II Medical universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.
North American style, AC mains cord included.
Compliant to the current environmental standards for REACH/RoHS3.
CE/FCC & customs Declarations and Instruction Manual are available below.
To place an order or for additional quantity pricing, please contact us.
