Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Gravimetric energy density | 192 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
Mechanical
| Weight | 510 g (1.12 lb) |
|---|---|
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133 2nd edition (CB report), UL/CSA 62133-2 (TÜV) |
|---|
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

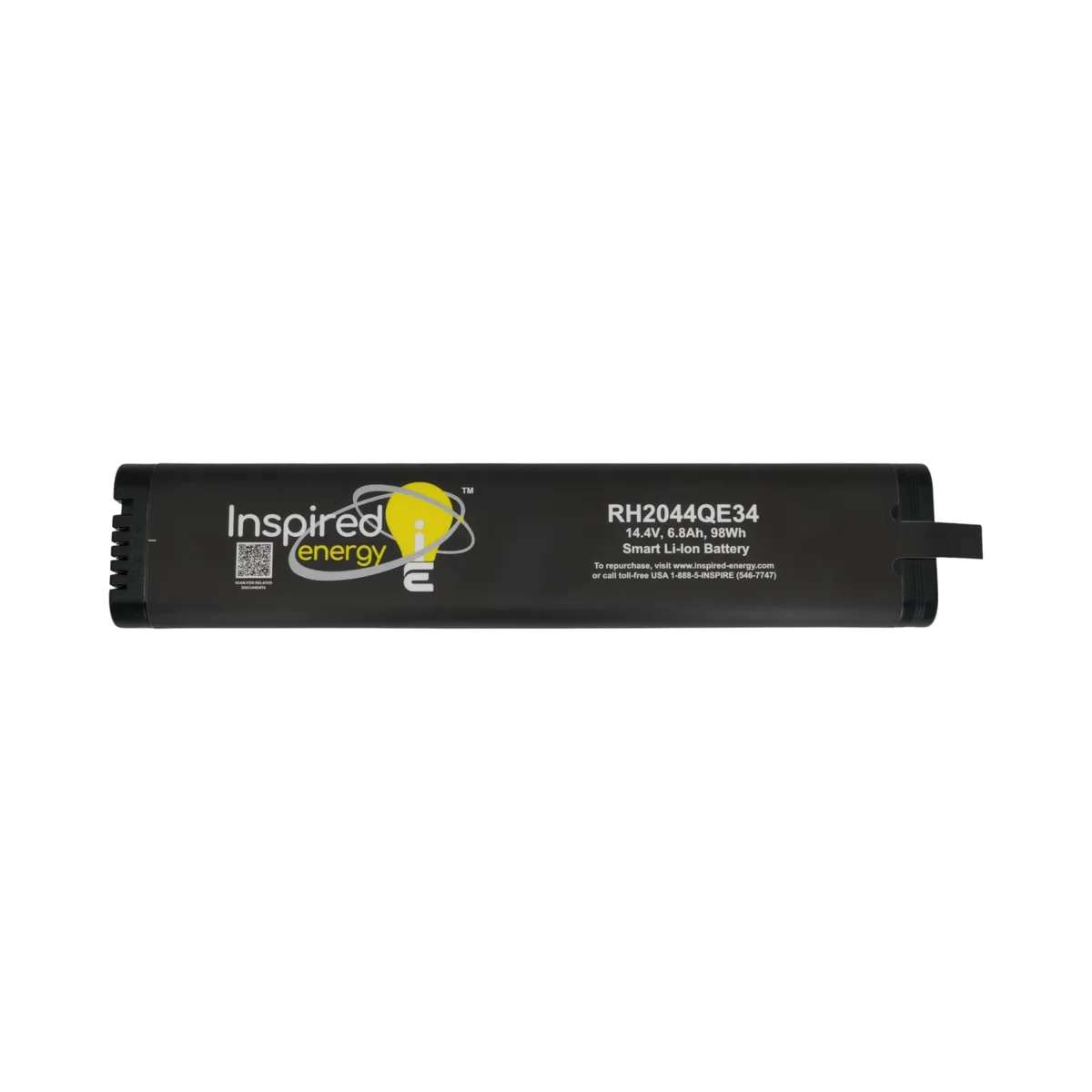

14.4 V 6.8 Ah smart lithium-ion battery pack.
Specifications for this part are available from Inspired Energy sales.
Custom options
Make it yours.
The RH2044QE34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
