Specifications (nominal & typical)
Source: datasheet Rev 1.1
Charging
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 1 listed below |
Power
| Power supply included | Yes |
|---|---|
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 140 × 84 mm (7 × 5.5 × 3.33 in) |
|---|---|
| Mating connector | 7 Blade Connector |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| SJ3008HD29 | 18 V | 5.2 Ah | 94 Wh | 5S2P | Active |
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

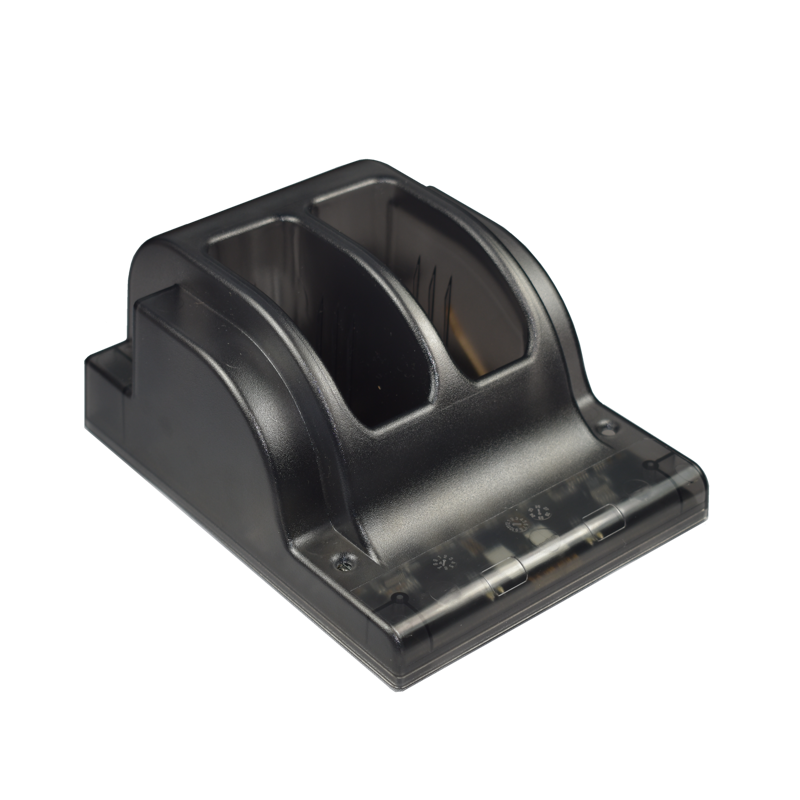

2 bay, s-series charger/calibrator no ac mains cord
