Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NE4068HD50 | 18 V | 5 Ah | 90 Wh | 5S1P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

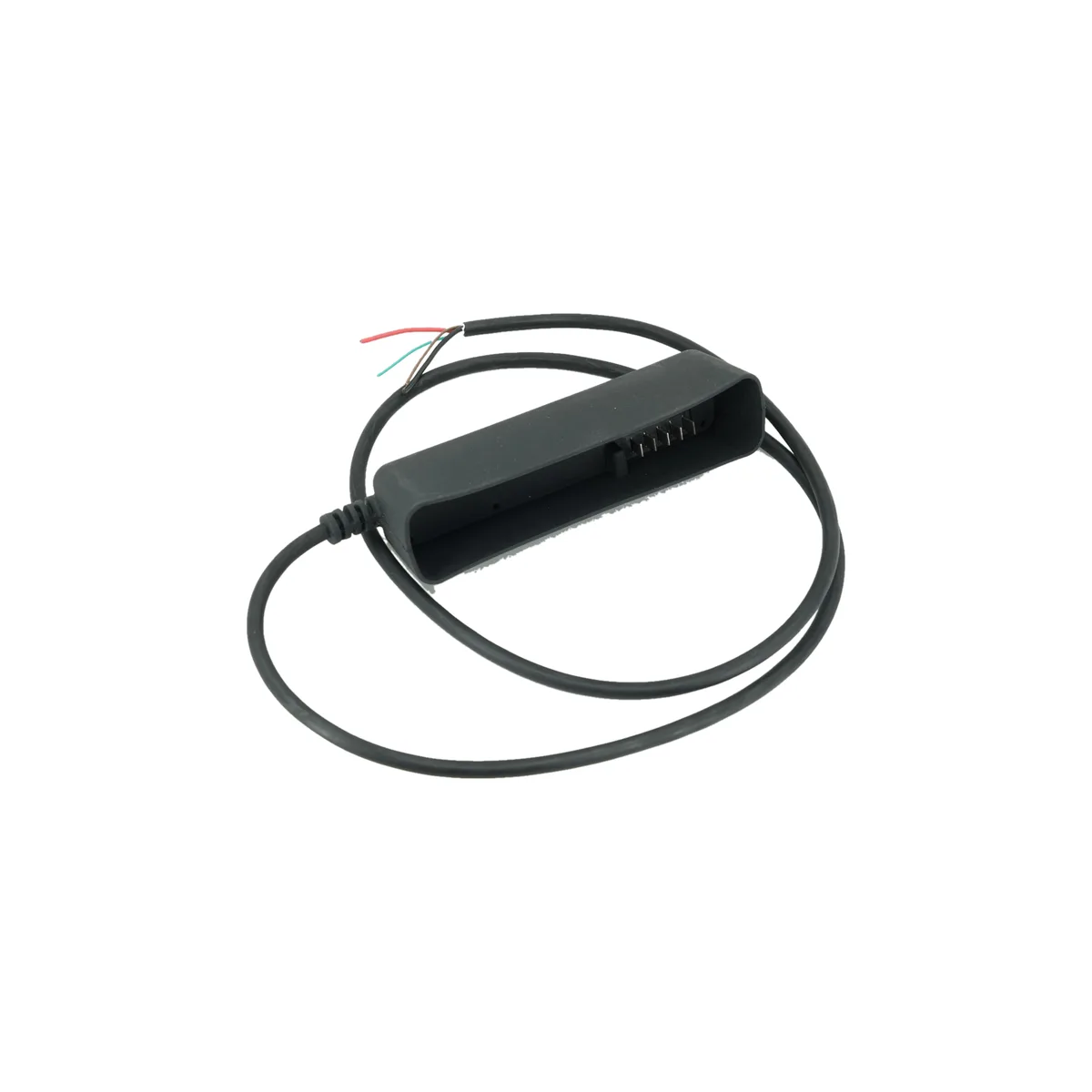

3FT, 5-conductor straight cable for NE4068HD50 li-ion smart battery packs. (2) 18awg power conductors (3) 24awg conductors for SMbus
