Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 18 V |
|---|---|
| Capacity | 5 Ah |
| Energy | 90 Wh |
| Volumetric energy density | 290 Wh per litre |
| Gravimetric energy density | 195 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Configuration | 5S1P |
Mechanical
| Dimensions (L × W × H) | 94.89 × 119.85 × 27.26 mm (3.74 × 4.72 × 1.08 in) |
|---|---|
| Weight | 462 g (1.02 lb) |
| Form factor | Rectangular |
| Device cavity | 27.8mm x 121.4mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +55 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 2 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
Cables
| Part | What it is |
|---|---|
| 629105A1 | 3FT, 5-conductor straight cable for NE4068HD50 li-ion smart battery packs. |
Accessories
Compare with its family
Volume pricing available on every part.
 NE4068HD50 This part |  NE4068QE50 Same family | |
|---|---|---|
| Voltage | 18 V | 18 V |
| Capacity | 5 Ah | 5 Ah |
| Energy | 90 Wh | 90 Wh |
| Max discharge | 8 A | 8 A |
| Power | 100 W | 100 W |
| Cells | - | 5 × 21700 (differs) |
| Configuration | 5S1P | 5S1P |
| Dimensions (mm) | 94.89 × 119.85 × 27.26 | 94.89 × 119.85 × 27.26 |
| Volume (mm³) | 310,016 | 310,016 |
| Weight | 462 g | 462 g |
| Gravimetric density | 195 Wh per kg | 195 Wh per kg |
| Discharge temperature | −20 °C to +55 °C | −20 °C to +55 °C |
| SoC display | Push button 4-bar LED | Push button 4-bar LED |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $189.83 | $192.49 |
This part, NE4068HD50Differs from the NE4068HD50
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

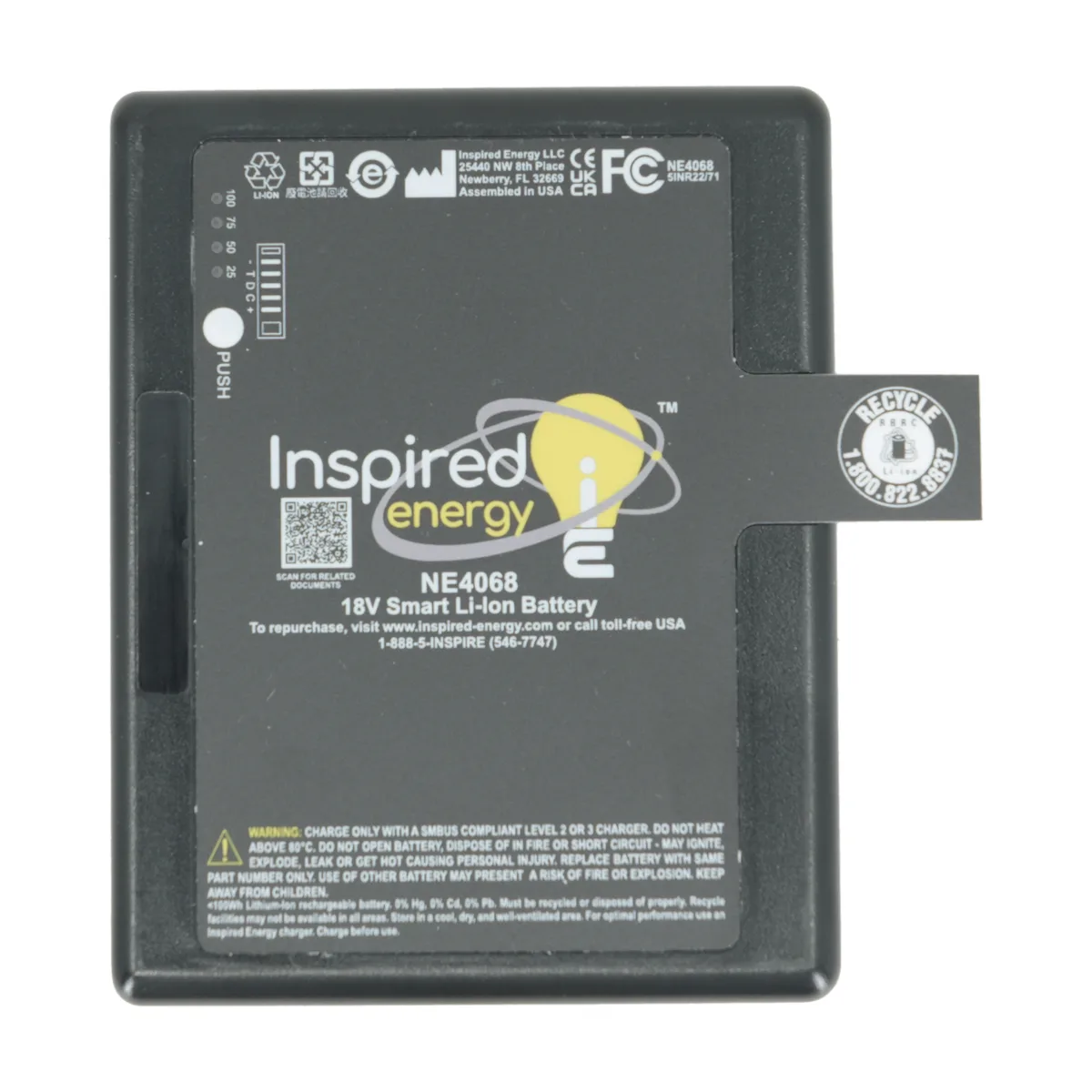

NE4068HD50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration.
The NE4068HD50 (5S1P) 18V smartbattery incorporates the standard features that designers and engineers have come to rely on for safety and performance, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The 4068 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NE4068HD50 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Consider the NE4068QE50 smart battery
Custom options
Make it yours.
The NE4068HD50 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
