- N-Series
- Battery pack

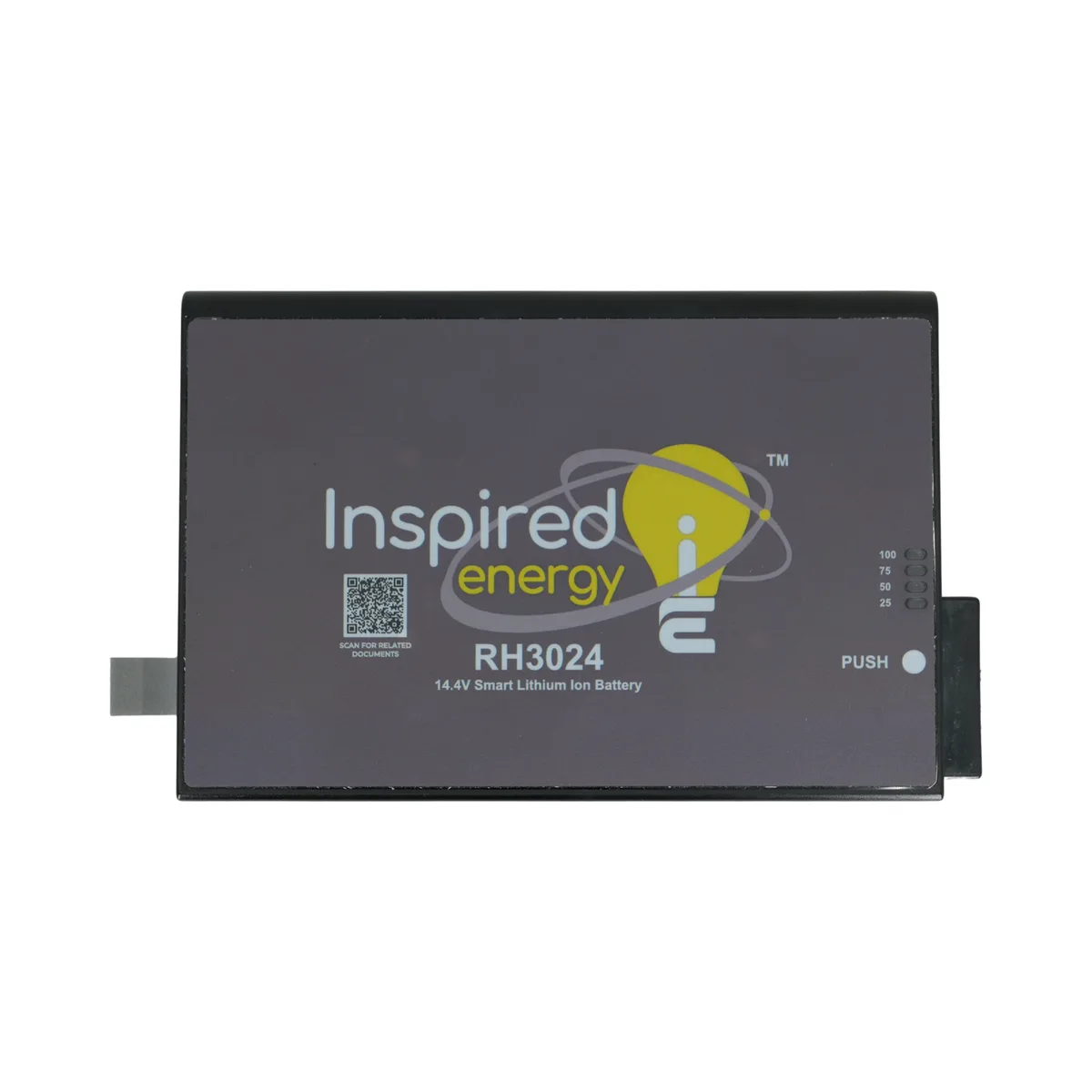

RH3024HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 234 Wh per litre |
| Gravimetric energy density | 209 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 167.7 × 109.22 × 22.86 mm (6.6 × 4.3 × 0.9 in) |
|---|---|
| Weight | 470 g (1.04 lb) |
| Form factor | Rectangular |
| Device cavity | 22.5mm x 109mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 RH3024HD34 This part |  NL2024ED22 Same family |  RH3024QE34 Same family | |
|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 6.6 Ah (differs) | 6.8 Ah |
| Energy | 98 Wh | 95 Wh (differs) | 98 Wh |
| Max discharge | 10 A | 10 A | 10 A |
| Power | 100 W | 100 W | 100 W |
| Cells | 8 × 18650 | 12 × 18650 (differs) | 8 × 18650 |
| Configuration | 4S2P | 4S3P (differs) | 4S2P |
| Dimensions (mm) | 167.7 × 109.22 × 22.86 | 167.7 × 109.22 × 22.86 | 167.7 × 109.22 × 22.86 |
| Volume (mm³) | 418,708 | 418,708 | 418,708 |
| Weight | 470 g | 647 g (differs) | 470 g |
| Gravimetric density | 209 Wh per kg | 147 Wh per kg (differs) | 209 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Push button 4-bar LED | Push button 4-bar LED | Push button 4-bar LED |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | 5-Pin Standard Connector |
| Price, qty 1-11 | $189.65 | Quote | $192.31 |
This part, RH3024HD34Differs from the RH3024HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
Capable of higher discharge rates than RH2024 smart battery packs, the RH3024HD34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The RH3024 ( 4S2P ) 14.4V lithium ion pack has tested as low as -20C and is ideally designed for use in portable devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
With 10A discharge capability, RH3024 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged.
CH-series chargers are recommended for these batteries.
RH 3024 smart liIon batteries can be customized to meet unique specifications.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
You are welcome to work directly with our technical, engineering and manufacturing staff here at our headquarters in Newberry, Florida.
We currently ship our products to over 96 countries.
This email address is being protected from spambots.
You need JavaScript enabled to view it.
For new applications, please review the NH3054 models.
The RH3024HD34 has been updated as a replacement for the previous NL2024ED & NL2024ED22 models.
