Specifications (nominal & typical)
Source: datasheet Rev 1.0
Charging
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 2 listed below |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 122 × 58 mm (7 × 5 × 2.25 in) |
|---|---|
| Mating connector | 5-Pin Standard Connector |
Compliance
| Certifications | CE, REACH, RoHS3 |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| ND3054HD30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
| ND3054QE30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
Cables
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

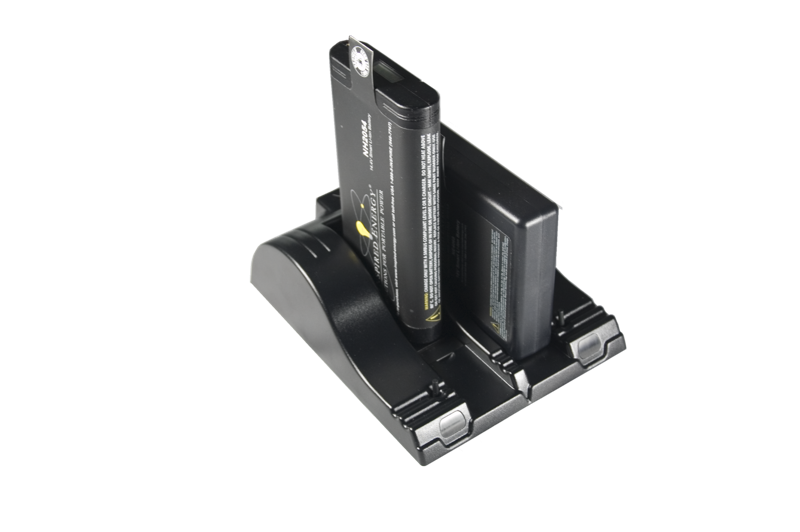

The CH1010EM SMbus 2-bay enhanced desktop charger/calibrator/recalibrator is a standalone unit built for Inspired Energy N & R-series battery products.
Full Charge Adjust SOC to 30% for shipping and storage Recalibration Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.
AC mains cord options available, please specify your country application when ordering.
Compliant to the current environmental standards for REACH/RoHS3.
Declarations are available below.
CE Compliant To place an order or for additional quantity pricing, please contact us.
