Specifications (nominal & typical)
Source: current catalog record
Charging
| Functions | Charge |
|---|
Power

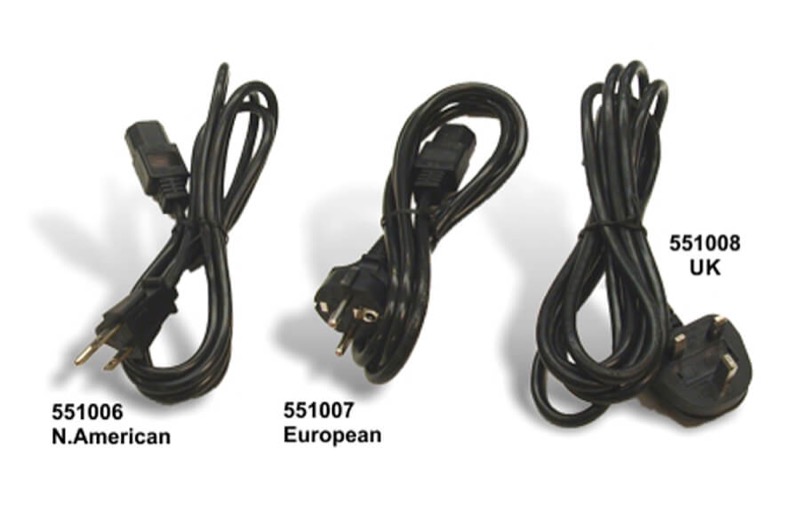

| AC cord options | US, EU, UK |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Chargers this fits
| Charger | What it is |
|---|---|
| CH1000 | The CH1000 SMbus battery charger/calibrator is a standalone desktop unit providing charge to Inspired Energy N & R-series battery products. |
| CH1000CAL | The CH1000CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations. |
| CH1010 | The CH1010 SMbus 2-bay desktop charger/calibrator is a standalone unit providing charge and recalibration to Inspired Energy N & R-series battery products. |
| CH1010EM | The CH1010EM SMbus 2-bay enhanced desktop charger/calibrator/recalibrator is a standalone unit built for Inspired Energy N & R-series battery products. |
| CH1111 | The CH1111 SMbus 4-bay, simultaneous smart charger and calibrator is a standalone unit that charges any (4) Inspired Energy N & R-series battery products at the same time, reducing cycle time for... |
| CH1111CAL | The CH1111CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations. |
| CH4000 | The CH4000 SMbus battery charger is a standalone desktop unit providing charge to Inspired Energy batteries. |
| CH4040 | The CH4040 2-bay smart SMbus charger is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH4444 | The CH4444 4-bay, simultaneous smart SMbus charger is a standalone unit which charges (4) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH5000 | The CH5000 SMbus battery charger and calibrator is a standalone desktop unit providing charge to Inspired Energy batteries. |
| CH5050 | The CH5050 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH5050CAL | The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH5555 | The CH5555 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (4) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH5555CAL | The CH5555CAL 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (4) Inspired Energy batteries at the same time, reducing cycle time for multi-battery... |
| CH6555 | The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH6555CAL | The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. |
| CH7000 | The CH7000 is a standalone smart SMbus battery charger with the capability to accept various input sources such as vehicle cigarette lighter sockets & 12V solar panels. |
| CH7070 | The CH7070 is a 2-bay smart SMbus battery charger with the capability to accept various input sources such as vehicle cigarette lighter sockets. |
