- N-Series
- Battery pack

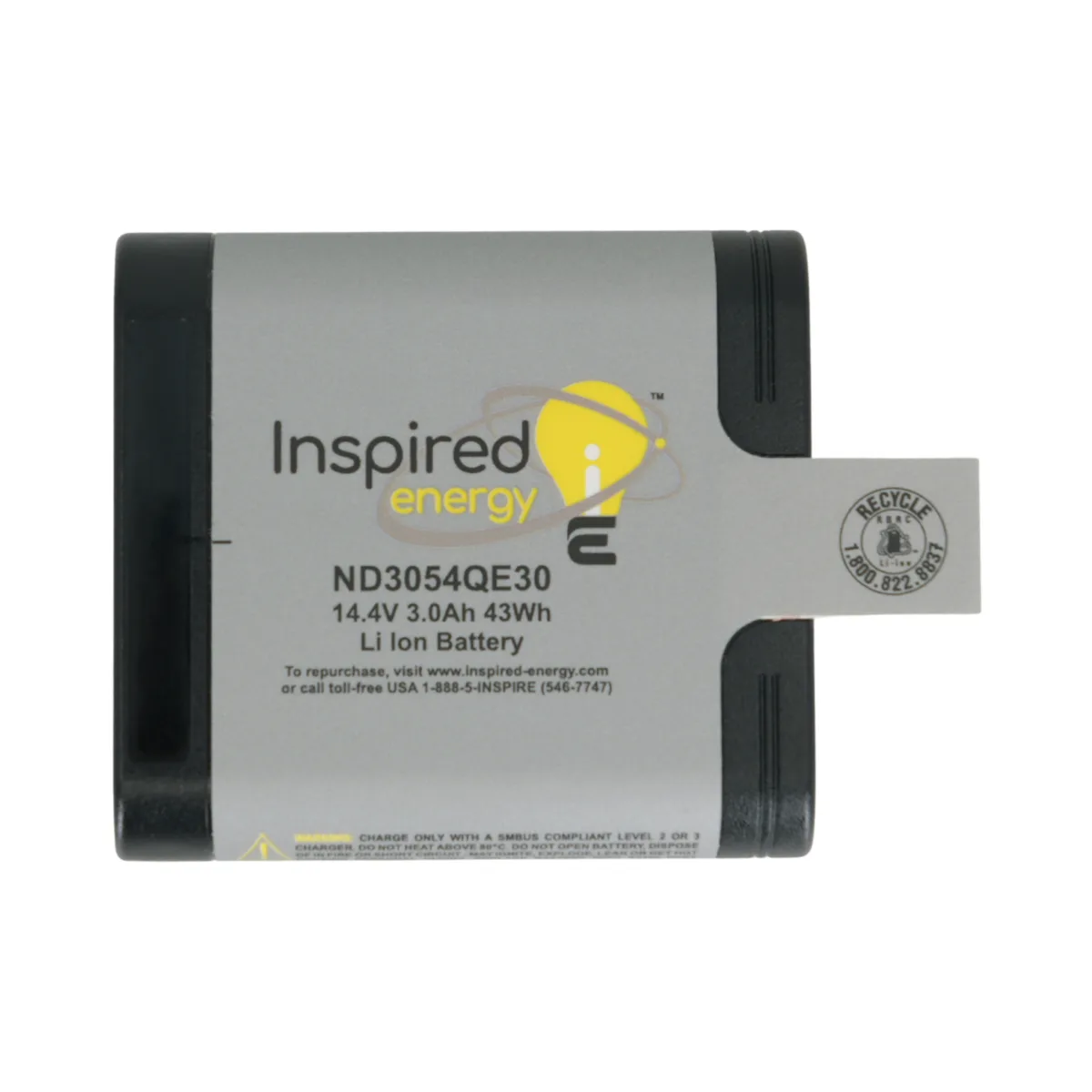

ND3054QE30
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 43 Wh |
| Volumetric energy density | 275 Wh per litre |
| Gravimetric energy density | 181 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 4 × 18650 |
| Configuration | 4S1P |
Mechanical
| Dimensions (L × W × H) | 86.4 × 78.7 × 23.02 mm (3.4 × 3.1 × 91 in) |
|---|---|
| Weight | 237 g (0.52 lb) |
| Form factor | Square |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL/CSA 62133-2 (TÜV) |
|---|---|
| Equivalent lithium content | 4 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH1010EM | 2 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH5050CAL | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH5555CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CH6555CAL | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
Compare with its family
Volume pricing available on every part.
 ND3054QE30 This part |  ND2054QE34 Same family |  ND3034QE29 Same series |  ND2034QE34 Same series |  ND4054QE50 Same series | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 3 Ah | 3.4 Ah (differs) | 2.8 Ah (differs) | 3.4 Ah (differs) | 5 Ah (differs) |
| Energy | 43 Wh | 49 Wh (differs) | 40 Wh (differs) | 49 Wh (differs) | 72 Wh (differs) |
| Max discharge | 10 A | 4 A (differs) | 10 A | 4 A (differs) | 8 A (differs) |
| Power | 100 W | 40 W (differs) | 100 W | 40 W (differs) | 80 W (differs) |
| Cells | 4 × 18650 | 4 × 18650 | 4 × 18650 | 4 × 18650 | 4 × 21700 (differs) |
| Configuration | 4S1P | 4S1P | 4S1P | 4S1P | 4S1P |
| Dimensions (mm) | 86.4 × 78.7 × 23.02 | 86.4 × 78.7 × 23.02 | 153 × 42 × 23 (differs) | 153 × 42 × 23 (differs) | 94.89 × 96.57 × 27.26 (differs) |
| Volume (mm³) | 156,529 | 156,529 | 147,798 (differs) | 147,798 (differs) | 249,798 (differs) |
| Weight | 237 g | 240 g (differs) | 230 g (differs) | 240 g (differs) | 372 g (differs) |
| Gravimetric density | 181 Wh per kg | 204 Wh per kg (differs) | 174 Wh per kg (differs) | 204 Wh per kg (differs) | 194 Wh per kg (differs) |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +55 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Push button 4-bar LED (differs) |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $135.51 | $123.24 | $131.39 | $123.24 | $169.88 |
This part, ND3054QE30Differs from the ND3054QE30
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
ND3054QE30 Smart Lithium-Ion Battery: The ND3054QE30 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.
The ND3054QE30 can perform as low as -30°C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 10A discharge capability, the ND3054QE30 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
