Specifications (nominal & typical)
Source: current catalog record
Electrical
| Output | Vbatt |
|---|
Interface
| Output cable | 5 wire straight |
|---|---|
| Output connector | none |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NC2040HD34 | 10.8 V | 3.4 Ah | 37 Wh | 3S1P | Active |
| NC2040QE34 | 10.8 V | 3.4 Ah | 37 Wh | 3S1P | Active |
| NC3040HD29 | 10.8 V | 2.8 Ah | 30 Wh | 3S1P | Active |
| NC3040QE29 | 10.8 V | 2.8 Ah | 30 Wh | 3S1P | Active |
| NC3040QE30 | 10.8 V | 3 Ah | 32 Wh | 3S1P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

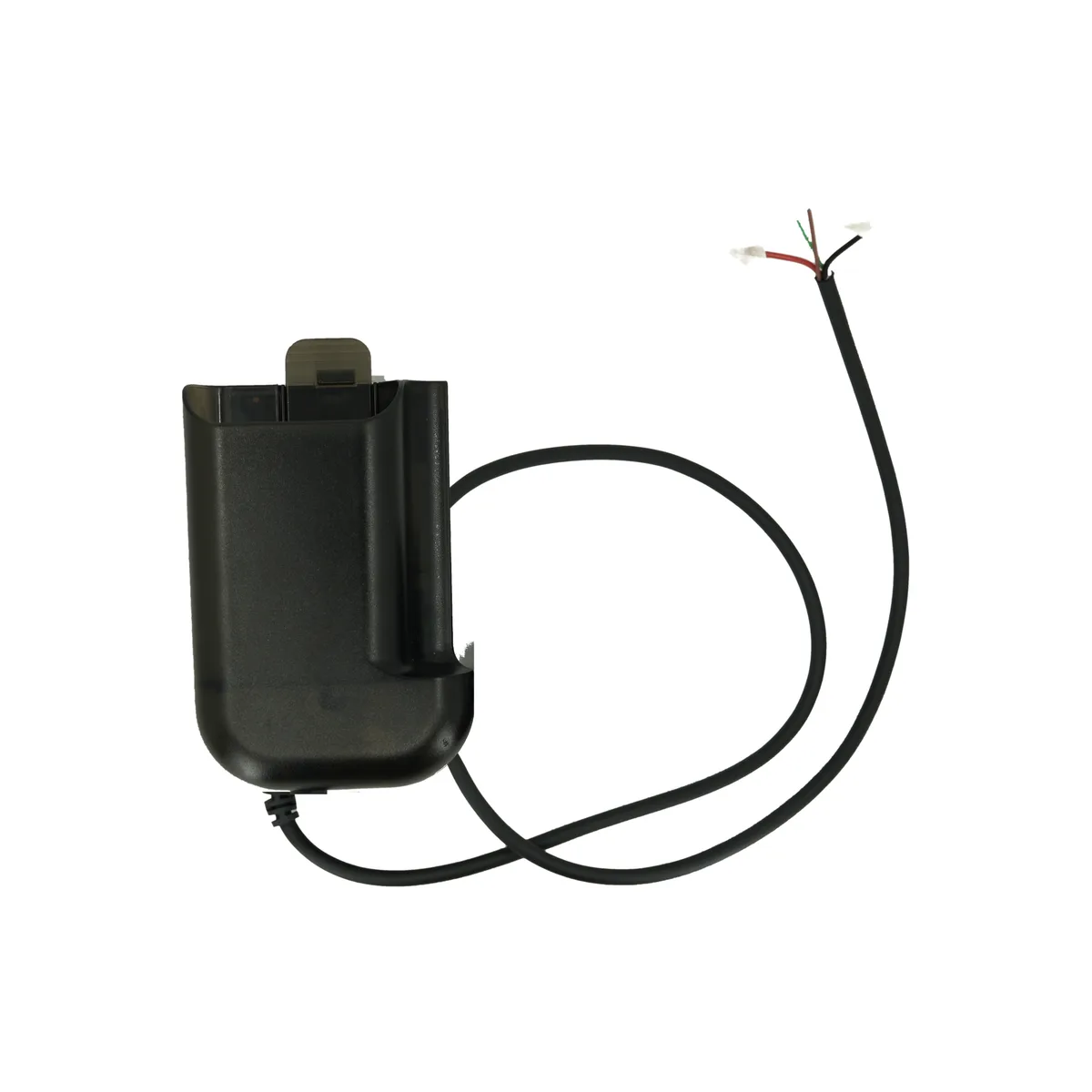

Belt pack holster for NCx04x batteries. 5-wire cable to bare leads (no connector) with battery voltage output and SMbus.
Compatible with 3 cell, NC2040 & NC3040 battery packs To place an order or for additional quantity pricing, please contact us.
