- N-Series
- Battery pack

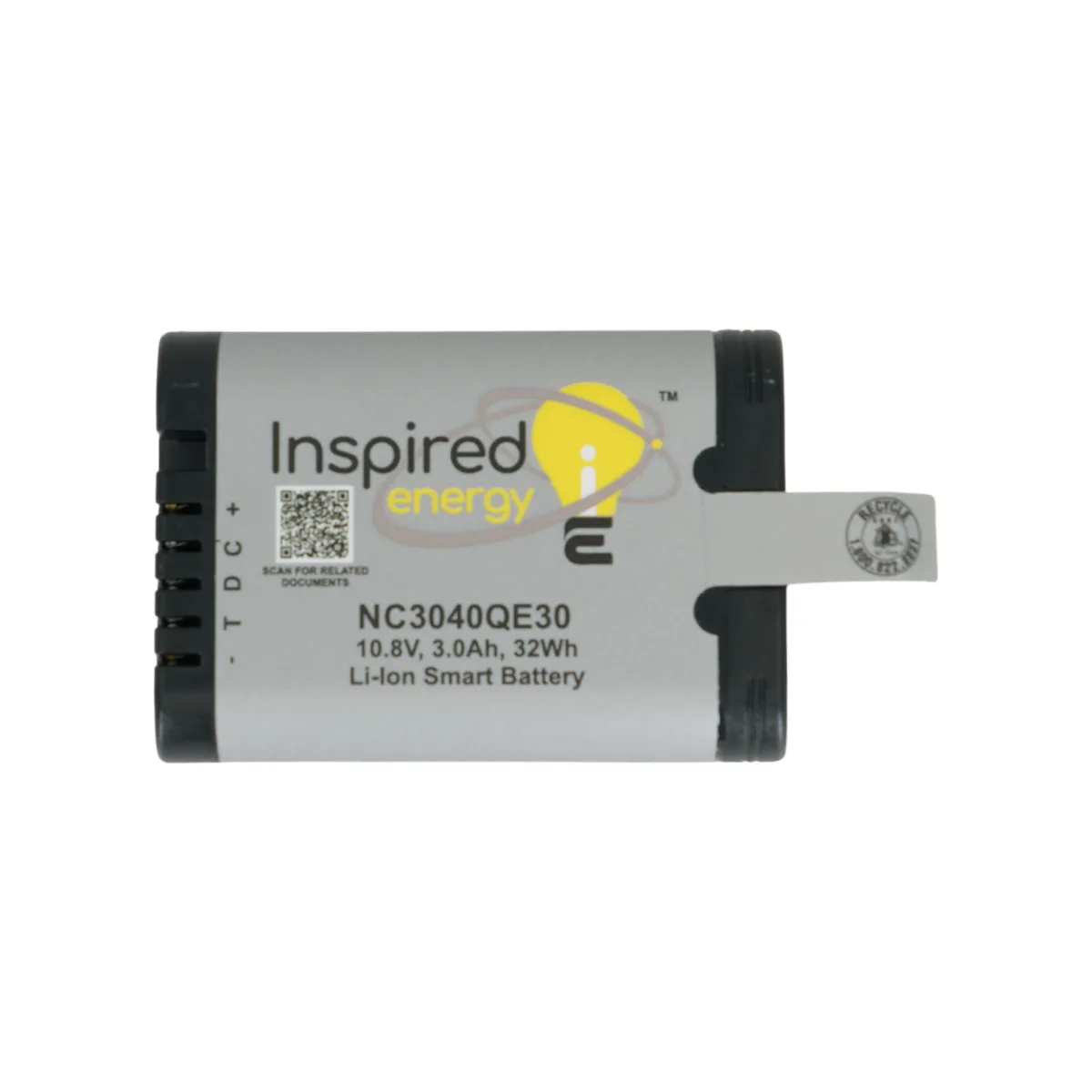

NC3040QE30
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 32 Wh |
| Volumetric energy density | 290 Wh per litre |
| Gravimetric energy density | 183 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | 3 × 18650 |
| Configuration | 3S1P |
Mechanical
| Dimensions (L × W × H) | 85 × 59 × 22 mm (3.4 × 2.4 × 9 in) |
|---|---|
| Weight | 175 g (0.39 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2 (TÜV SÜD) |
|---|
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH5050CAL | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH5555CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CH6555CAL | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
| Part | What it is |
|---|---|
| 936140 | Travel / dust cap for 204x range batteries |
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
| MC20402 | Belt pack holster for NCx04x batteries with integrated charger. |
| MC20404 | Belt pack holster for NCx04x batteries with integrated charger. |
| MP20401 | Holster for NCx04x batteries. |
| MP20402 | Belt pack holster for NCx04x batteries. |
| MP20403 | Belt pack holster for NCx04x batteries. |
Compare with its family
Volume pricing available on every part.
 NC3040QE30 This part |  NC2040QE34 Same family |  NC3040QE29 Same family |  NC4040QE50 Same series |  NF2030QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 3 Ah | 3.4 Ah (differs) | 2.8 Ah (differs) | 5 Ah (differs) | 6.8 Ah (differs) |
| Energy | 32 Wh | 37 Wh (differs) | 30 Wh (differs) | 54 Wh (differs) | 73 Wh (differs) |
| Max discharge | 8 A | 4 A (differs) | 8 A | 8 A | 8 A |
| Power | 60 W | 30 W (differs) | 60 W | 60 W | 60 W |
| Cells | 3 × 18650 | × 18650 (differs) | - (differs) | 3 × 21700 (differs) | 6 × 18650 (differs) |
| Configuration | 3S1P | 3S1P | 3S1P | 3S1P | 3S2P (differs) |
| Dimensions (mm) | 85 × 59 × 22 | 84.87 × 58.77 × 21.89 (differs) | 85.1 × 59.02 × 22.4 (differs) | 94.89 × 74.81 × 27.26 (differs) | 219 × 42 × 23 (differs) |
| Volume (mm³) | 110,330 | 109,183 (differs) | 112,506 (differs) | 193,511 (differs) | 211,554 (differs) |
| Weight | 175 g | 184 g (differs) | 184 g (differs) | 284 g (differs) | 304 g (differs) |
| Gravimetric density | 183 Wh per kg | 201 Wh per kg (differs) | 163 Wh per kg (differs) | 190 Wh per kg (differs) | 240 Wh per kg (differs) |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −20 °C to +55 °C (differs) | −20 °C to +60 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | - (differs) | Push button 4-bar LED (differs) | Always on 5-Bar LCD |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $132.64 | $114.89 | $123.07 | $158.53 | $156.54 |
This part, NC3040QE30Differs from the NC3040QE30
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The NC3040 ( 3S1P ) 10.8V lithium ion pack has tested as low as -30C and is ideally designed for use in compact and handheld devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NC3040QE30 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Need additional capacity?
Check out our NC4040HD50 smart battery The NC3040QE30 has been updated as a replacement for the previous NC3040HD29, NC3040QE29, NC3040HD25, NC3040HD26 and NC3040HD30 models.
