- N-Series
- Battery pack

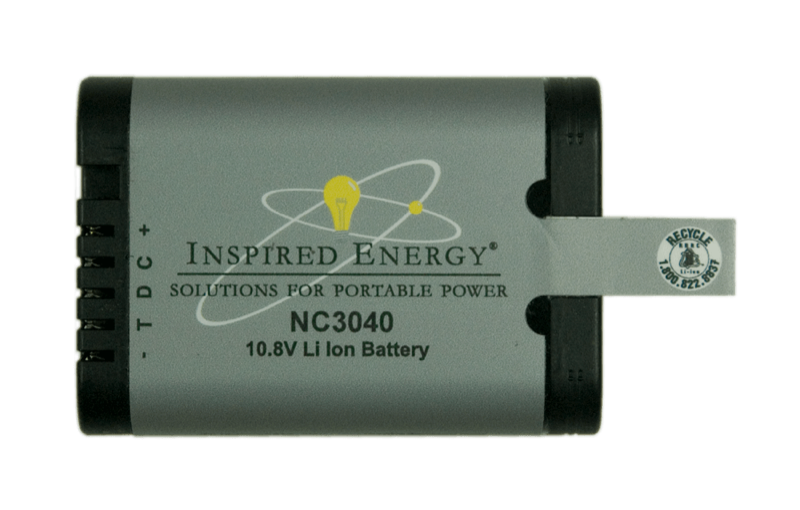

NC3040HD29
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 30 Wh |
| Volumetric energy density | 267 Wh per litre |
| Gravimetric energy density | 163 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | 3 × 18650 |
| Configuration | 3S1P |
Mechanical
| Dimensions (L × W × H) | 85.1 × 59.02 × 22.4 mm (3.4 × 2.4 × 0.9 in) |
|---|---|
| Weight | 184 g (0.41 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 60mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 3 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
| Part | What it is |
|---|---|
| 936140 | Travel / dust cap for 204x range batteries |
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
| MC20402 | Belt pack holster for NCx04x batteries with integrated charger. |
| MC20404 | Belt pack holster for NCx04x batteries with integrated charger. |
| MP20401 | Holster for NCx04x batteries. |
| MP20402 | Belt pack holster for NCx04x batteries. |
| MP20403 | Belt pack holster for NCx04x batteries. |
Compare with its family
Volume pricing available on every part.
 NC3040HD29 This part |  NC2040HD34 Same family |  NC2040QE34 Same family |  NC3040HD30 Same family |  NC3040QE29 Same family | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 2.8 Ah | 3.4 Ah (differs) | 3.4 Ah (differs) | 3 Ah (differs) | 2.8 Ah |
| Energy | 30 Wh | 37 Wh (differs) | 37 Wh (differs) | 32 Wh (differs) | 30 Wh |
| Max discharge | 8 A | 4 A (differs) | 4 A (differs) | 8 A | 8 A |
| Power | 60 W | 30 W (differs) | 30 W (differs) | 60 W | 60 W |
| Cells | 3 × 18650 | × 18650 (differs) | × 18650 (differs) | × 18650 (differs) | - (differs) |
| Configuration | 3S1P | 3S1P | 3S1P | 3S1P | 3S1P |
| Dimensions (mm) | 85.1 × 59.02 × 22.4 | 84.87 × 58.77 × 21.89 (differs) | 84.87 × 58.77 × 21.89 (differs) | 85.1 × 59.02 × 22.4 | 85.1 × 59.02 × 22.4 |
| Volume (mm³) | 112,506 | 109,183 (differs) | 109,183 (differs) | 112,506 | 112,506 |
| Weight | 184 g | 184 g | 184 g | 175 g (differs) | 184 g |
| Gravimetric density | 163 Wh per kg | 201 Wh per kg (differs) | 201 Wh per kg (differs) | 183 Wh per kg (differs) | 163 Wh per kg |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −30 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | - (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $120.41 | $112.23 | $114.89 | $129.98 | $123.07 |
This part, NC3040HD29Differs from the NC3040HD29
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NC3040HD29 Smart Lithium-Ion Battery: Capable of higher discharge rates and lower temperature operation than NC2040 smart battery packs, the NC3040HD29 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication.
The NC3040 (3S1P) 10.8V lithium ion pack has tested as low as -30C and is ideally designed for use in compact and handheld devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
With 8A discharge capability, NC3040 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
Nc3040HD29 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Consider the NC3040QE29 smart battery The NC3040HD29 has been updated as a replacement for the previous NC3040HD25 & HD26 models.
Custom options
Make it yours.
The NC3040HD29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
