Specifications (nominal & typical)
Source: current catalog record
Electrical
| Output | Vbatt |
|---|
Interface
| Output cable | 5 wire straight |
|---|---|
| Output connector | none |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| ND2053ED34 | 3.6 V | 13.6 Ah | 49 Wh | 1S4P | Active |
| ND2054HD34 | 14.4 V | 3.4 Ah | 49 Wh | 4S1P | Active |
| ND2054QE34 | 14.4 V | 3.4 Ah | 49 Wh | 4S1P | Active |
| ND2057HD34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
| ND2057QE34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
| ND3054HD29 | 14.4 V | 2.8 Ah | 40 Wh | 4S1P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

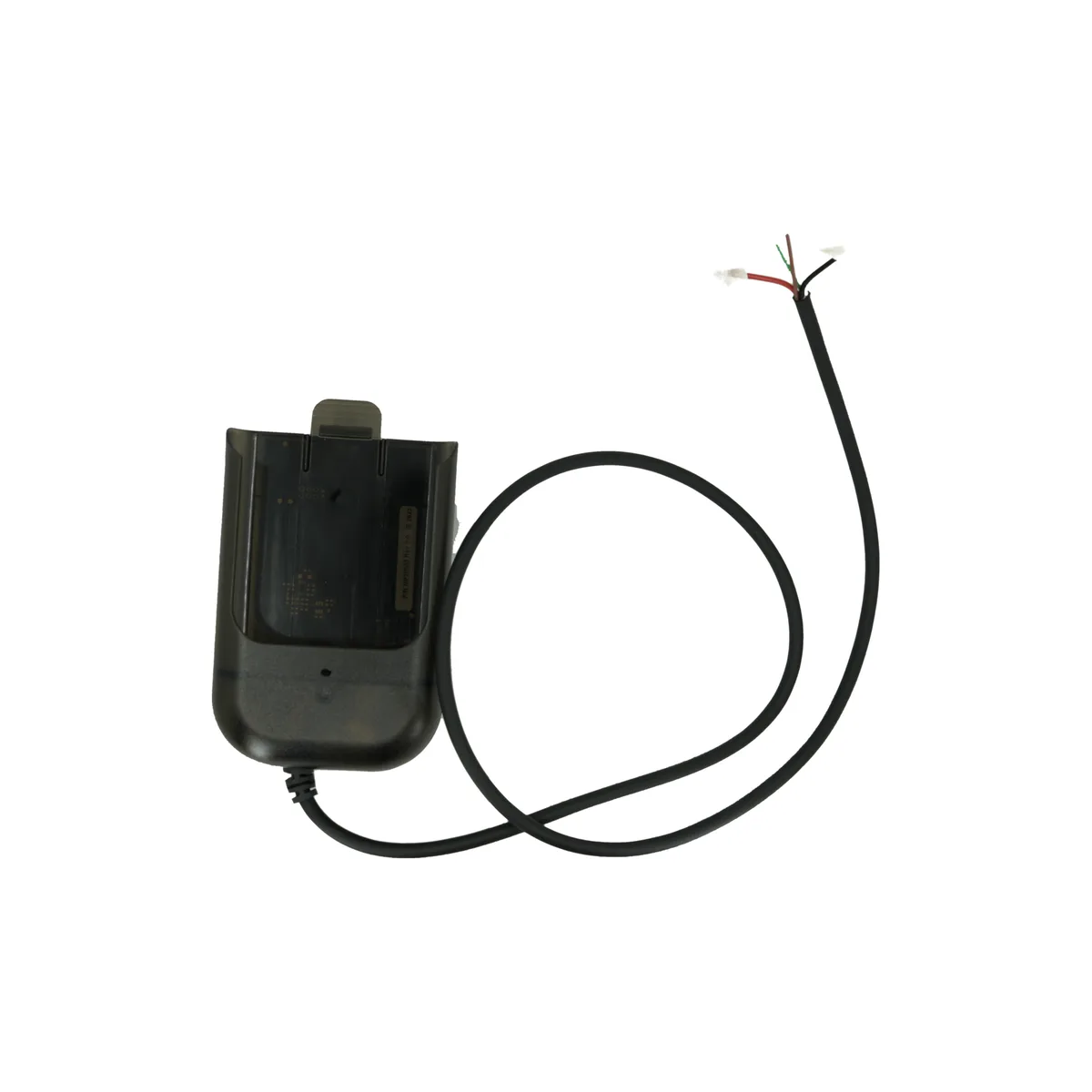

Belt pack holster for NDx05x batteries. 5-wire cable to bare leads (no connector) with battery voltage output and SMbus.
Compatible with 4 cell, ND2053, ND2054, ND3054, ND2057 & ND3057 battery packs To place an order or for additional quantity pricing, please contact us.
