• N-Series
  • Battery pack

ND3054HD29

14.4 V smart lithium-ion battery

Active Specs per datasheet Rev 1.0.1

Voltage
14.4V
Capacity
2.8Ah
Energy
40Wh
Max discharge
10A
Power
100W
18650 cells
4S1P
Datasheet (Rev 1.0.1) Request a quote

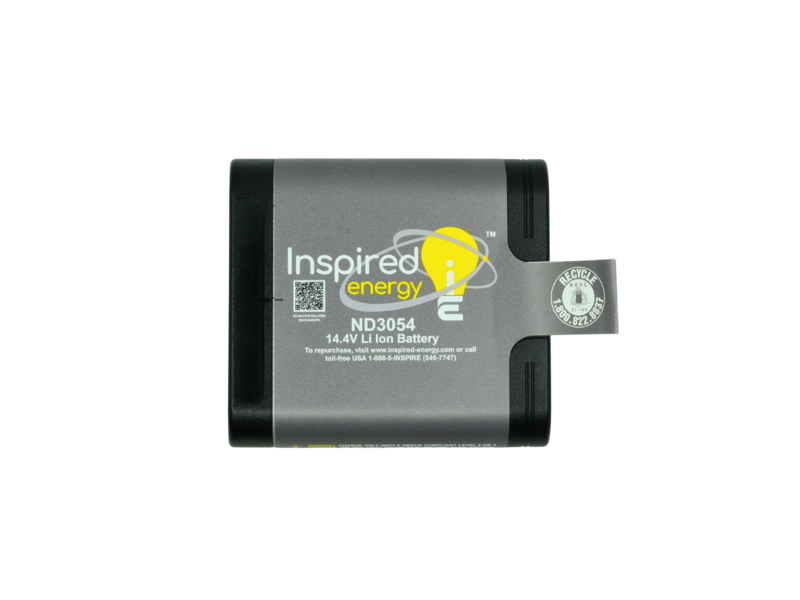

ND3054HD29 product photo

Specifications (nominal & typical)

Source: datasheet Rev 1.0.1

Electrical

Voltage14.4 V
Capacity2.8 Ah
Energy40 Wh
Volumetric energy density256 Wh per litre
Gravimetric energy density167 Wh per kg
Maximum discharge current10 A
Power100 W
ChemistryLithium-ion
Cells4 × 18650
Configuration4S1P

Mechanical

Dimensions (L × W × H)86.4 × 78.7 × 23.02 mm (3.4 × 3.1 × 0.91 in)
Weight240 g (0.53 lb)
Form factorSquare
Device cavity23.5mm x 80mm cross section
Ingress protectionNone

Temperature limits

Discharge (operating)−30 °C to +60 °C
Charge0 °C to +45 °C
Storage−20 °C to +60 °C

Interface

Mating connectorAMP P/N 5787422-1 or 5787446-1
State-of-charge displayAlways on 5-Bar LCD

Compliance and shipping

CertificationsEMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B
Equivalent lithium content4 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

ChargerBaysChargeCalibrateSet SoC 25%Status
CH1000 1 Yes Yes No Active
CH4000 1 Yes No No Active
CH5000 1 Yes Yes No Active
CH4040 2 Yes No No Active
CH5555 4 Yes Yes No Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

PartWhat it is
610005Straight Connector - TE Part Number: 5787446-1
61000790° Connector with Right-Hand Key - TE Part Number: 5787422-1
61001890° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237AConnector Mounting Circuit Board
EB397AConnector Board with Ideal Diode Circuit.

Cables

PartWhat it is
6290283', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
6290303', 2-Conductor coiled cable

Accessories

PartWhat it is
936186Travel / dust cap for 205x range batteries
ATA004NUSB-to-SMBus smart battery interface with “Y” USB/Battery cable.
MC20501Belt pack holster for NDx05x batteries with integrated charger.
MC20502Belt pack holster for NDx05x batteries with integrated charger.
MC20505Belt pack holster for NDx05x batteries with integrated charger.
MP20501Belt pack holster for NDx05x batteries.
MP20502Belt pack holster for NDx05x batteries.
MP20503Belt pack holster for NDx05x batteries.

Compare with its family

Volume pricing available on every part.

ND3054HD29 This part ND2054HD34 Same family ND2054QE34 Same family ND3054HD30 Same family ND3054QE30 Same family
Voltage 14.4 V14.4 V14.4 V14.4 V14.4 V
Capacity 2.8 Ah3.4 Ah3.4 Ah3 Ah3 Ah
Energy 40 Wh49 Wh49 Wh43 Wh43 Wh
Max discharge 10 A4 A4 A10 A10 A
Power 100 W40 W40 W100 W100 W
Cells 4 × 186504 × 186504 × 186504 × 186504 × 18650
Configuration 4S1P4S1P4S1P4S1P4S1P
Dimensions (mm) 86.4 × 78.7 × 23.0286.4 × 78.7 × 23.0286.4 × 78.7 × 23.0286.4 × 78.7 × 23.0286.4 × 78.7 × 23.02
Volume (mm³) 156,529156,529156,529156,529156,529
Weight 240 g240 g240 g237 g237 g
Gravimetric density 167 Wh per kg204 Wh per kg204 Wh per kg181 Wh per kg181 Wh per kg
Discharge temperature −30 °C to +60 °C−20 °C to +60 °C−20 °C to +60 °C−30 °C to +60 °C−30 °C to +60 °C
SoC display Always on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCD-Always on 5-Bar LCD
Mating connector AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-15-Pin Standard Connector5-Pin Standard Connector
Price, qty 1-11 $128.73$120.58$123.24$132.85$135.51

This part, ND3054HD29Differs from the ND3054HD29

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

ND3054HD29 Smart Lithium-Ion Battery: The ND3054 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.

The ND3054 can perform as low as -30°C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).

Also, with its 10A discharge capability, the ND3054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

Features:

  • SMbus
  • Pull tab for easy removal
  • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

ND3054HD29 Smart Li-ion battery customization options:

  • Custom label
  • Custom Firmware
  • Additional performance options for OEM applications N-series chargers are recommended for these batteries.

Custom options

Make it yours.

The ND3054HD29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
