- N-Series
- Battery pack

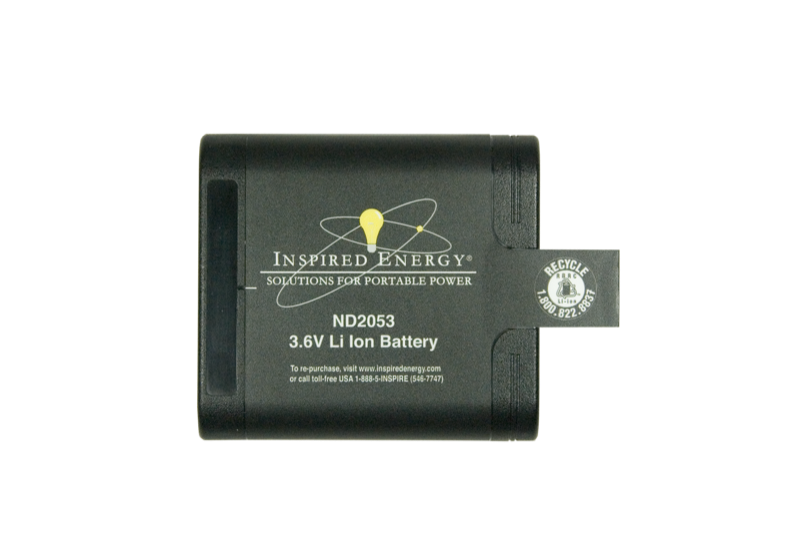

ND2053ED34
3.6 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.1
Electrical
| Voltage | 3.6 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 49 Wh |
| Volumetric energy density | 313 Wh per litre |
| Gravimetric energy density | 204 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 25 W |
| Chemistry | Lithium-ion |
| Cells | 4 × 18650 |
| Configuration | 1S4P |
Mechanical
| Dimensions (L × W × H) | 86.4 × 78.7 × 23.02 mm (3.4 × 3.1 × 0.91 in) |
|---|---|
| Weight | 240 g (0.53 lb) |
| Form factor | Square |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −10 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 4 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
| Part | What it is |
|---|---|
| 936186 | Travel / dust cap for 205x range batteries |
| MC20501 | Belt pack holster for NDx05x batteries with integrated charger. |
| MC20502 | Belt pack holster for NDx05x batteries with integrated charger. |
| MC20505 | Belt pack holster for NDx05x batteries with integrated charger. |
| MP20501 | Belt pack holster for NDx05x batteries. |
| MP20502 | Belt pack holster for NDx05x batteries. |
| MP20503 | Belt pack holster for NDx05x batteries. |
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
Compare with its family
Volume pricing available on every part.
 ND2053ED34 This part | ND2053QE34 Same family | |
|---|---|---|
| Voltage | 3.6 V | 3.6 V |
| Capacity | 13.6 Ah | 13.6 Ah |
| Energy | 49 Wh | 49 Wh |
| Max discharge | 10 A | - (differs) |
| Power | 25 W | - (differs) |
| Cells | 4 × 18650 | 4 × 18650 |
| Configuration | 1S4P | 1S4P |
| Dimensions (mm) | 86.4 × 78.7 × 23.02 | 85.09 × 77.39 × 22.51 (differs) |
| Volume (mm³) | 156,529 | 148,231 (differs) |
| Weight | 240 g | 240 g |
| Gravimetric density | 204 Wh per kg | 204 Wh per kg |
| Discharge temperature | −10 °C to +60 °C | −10 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787446-1 (differs) |
| Price, qty 1-11 | $127.85 | Quote |
This part, ND2053ED34Differs from the ND2053ED34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
ND2053ED34 Smart Lithium-Ion Battery: The ND2053 is aimed at low voltage applications requiring extremely high capacity.
It also offers the ability to deliver high discharge currents making it unique for embedded applications.
The ND2053 is capable for low temperature applications as it can perform as low as -10C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
ND2053ED34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Custom options
Make it yours.
The ND2053ED34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
