- N-Series
- Battery pack

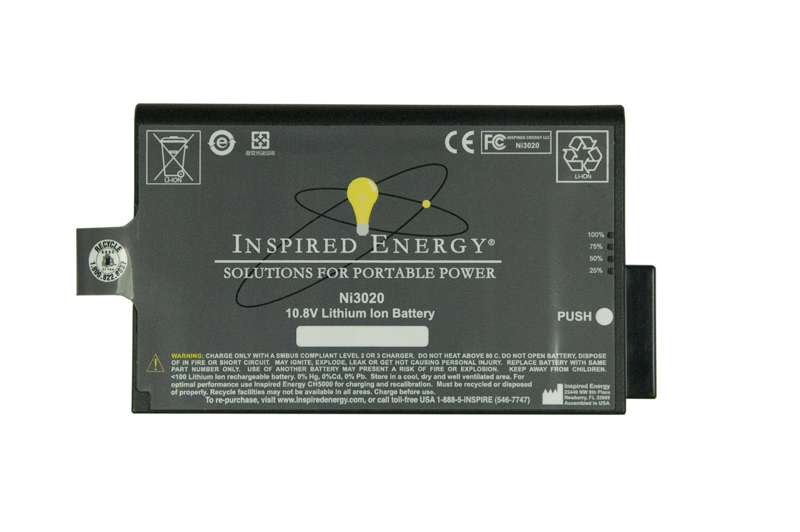

Ni3020QE29
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.1.1
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 8.4 Ah |
| Energy | 90 Wh |
| Volumetric energy density | 334 Wh per litre |
| Gravimetric energy density | 178 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 75 W |
| Chemistry | Lithium-ion |
| Cells | 9 × 18650 |
| Configuration | 3S3P |
Mechanical
| Dimensions (L × W × H) | 149.1 × 89 × 20.3 mm (5.9 × 3.5 × 0.8 in) |
|---|---|
| Weight | 506 g (1.12 lb) |
| Form factor | Rectangular |
| Device cavity | 21mm x 90 mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 5-Pin Standard Connector |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), CAN/CSA C22.2 No. 62133-2, TÜV |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 Ni3020QE29 This part |  Ni2040QE29 Same series |  Ri3020QE29 Same series |  NF2030QE34 Same series |  NF2040QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 8.4 Ah | 8.4 Ah | 8.4 Ah | 6.8 Ah (differs) | 6.8 Ah (differs) |
| Energy | 90 Wh | 91 Wh (differs) | 91 Wh (differs) | 73 Wh (differs) | 73 Wh (differs) |
| Max discharge | 10 A | 10 A | 10 A | 8 A (differs) | 8 A (differs) |
| Power | 75 W | 75 W | 75 W | 60 W (differs) | 60 W (differs) |
| Cells | 9 × 18650 | 9 × 18650 | 9 × 18650 | 6 × 18650 (differs) | 6 × 18650 (differs) |
| Configuration | 3S3P | 3S3P | 3S3P | 3S2P (differs) | 3S2P (differs) |
| Dimensions (mm) | 149.1 × 89 × 20.3 | 214.6 × 58.9 × 22.4 (differs) | 167.7 × 109.22 × 22.86 (differs) | 219 × 42 × 23 (differs) | 151.1 × 59.02 × 22.4 (differs) |
| Volume (mm³) | 269,379 | 283,135 (differs) | 418,708 (differs) | 211,554 (differs) | 199,761 (differs) |
| Weight | 506 g | 506 g | - (differs) | 304 g (differs) | 349 g (differs) |
| Gravimetric density | 178 Wh per kg | 180 Wh per kg (differs) | - (differs) | 240 Wh per kg (differs) | 209 Wh per kg (differs) |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +55 °C (differs) | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) |
| SoC display | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) |
| Mating connector | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | 5-Pin Standard Connector | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) |
| Price, qty 1-11 | $200.28 | $200.28 | $200.28 | $156.54 | $156.54 |
This part, Ni3020QE29Differs from the Ni3020QE29
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The Ni3020 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 10A discharge capability, the Ni3020HD29 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
Ni3020QE29 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Looking for something with a smaller format?
We recommend the Ni2020HD29 smart battery The Ni3020QE29 is our newest model, designed to outperform the previous Ni3020HD29 and other models such as Ni2020ED29, Ni3020HD25, 26 & 30.
Custom options
Make it yours.
The Ni3020QE29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
