Ni2040QE29

10.8 V smart lithium-ion battery

Active Specs per datasheet Rev 3.2 UL approved

Voltage
10.8V
Capacity
8.4Ah
Energy
91Wh
Max discharge
10A
Power
75W
18650 cells
3S3P
Datasheet (Rev 3.2) Request a quote Buy 1-11 now

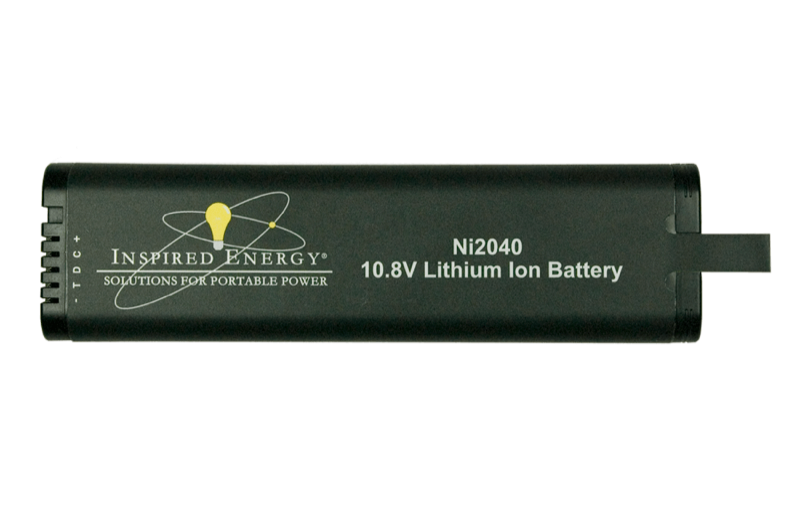

Ni2040QE29 product photo

Specifications (nominal & typical)

Source: datasheet Rev 3.2

Electrical

Voltage10.8 V
Capacity8.4 Ah
Energy91 Wh
Volumetric energy density321 Wh per litre
Gravimetric energy density180 Wh per kg
Maximum discharge current10 A
Power75 W
ChemistryLithium-ion
Cells9 × 18650
Configuration3S3P

Mechanical

Dimensions (L × W × H)214.6 × 58.9 × 22.4 mm (8.5 × 2.4 × 0.9 in)
Weight506 g (1.12 lb)
Form factorRectangular
Device cavity23.5mm x 60mm cross section
Ingress protectionNone

Temperature limits

Discharge (operating)−20 °C to +60 °C
Charge0 °C to +45 °C
Storage−20 °C to +60 °C

Interface

Mating connectorAMP P/N 5787422-1 or 5787446-1
State-of-charge displayAlways on 5-Bar LCD

Compliance and shipping

CertificationsEMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), TÜV, KC (Korea), BIS (India), Turkey EU
Equivalent lithium content6 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

ChargerBaysChargeCalibrateSet SoC 25%Status
CH1000 1 Yes Yes No Active
CH4000 1 Yes No No Active
CH5000 1 Yes Yes No Active
CH4040 2 Yes No No Active
CH4444 4 Yes No No Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

PartWhat it is
610005Straight Connector - TE Part Number: 5787446-1
61000790° Connector with Right-Hand Key - TE Part Number: 5787422-1
61001890° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237AConnector Mounting Circuit Board
EB397AConnector Board with Ideal Diode Circuit.

Cables

PartWhat it is
6290283', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
6290303', 2-Conductor coiled cable

Accessories

PartWhat it is
936140Travel / dust cap for 204x range batteries
ATA004NUSB-to-SMBus smart battery interface with “Y” USB/Battery cable.

Compare with its family

Volume pricing available on every part.

Ni2040QE29 This part Ni3020QE29 Same series Ri3020QE29 Same series NF2030QE34 Same series NF2040QE34 Same series
Voltage 10.8 V10.8 V10.8 V10.8 V10.8 V
Capacity 8.4 Ah8.4 Ah8.4 Ah6.8 Ah6.8 Ah
Energy 91 Wh90 Wh91 Wh73 Wh73 Wh
Max discharge 10 A10 A10 A8 A8 A
Power 75 W75 W75 W60 W60 W
Cells 9 × 186509 × 186509 × 186506 × 186506 × 18650
Configuration 3S3P3S3P3S3P3S2P3S2P
Dimensions (mm) 214.6 × 58.9 × 22.4149.1 × 89 × 20.3167.7 × 109.22 × 22.86219 × 42 × 23151.1 × 59.02 × 22.4
Volume (mm³) 283,135269,379418,708211,554199,761
Weight 506 g506 g-304 g349 g
Gravimetric density 180 Wh per kg178 Wh per kg-240 Wh per kg209 Wh per kg
Discharge temperature −20 °C to +60 °C−30 °C to +60 °C−20 °C to +55 °C−20 °C to +60 °C−20 °C to +60 °C
SoC display Always on 5-Bar LCDPush button 4-bar LEDPush button 4-bar LEDAlways on 5-Bar LCDAlways on 5-Bar LCD
Mating connector AMP P/N 5787422-1 or 5787446-15-Pin Standard Connector5-Pin Standard ConnectorAMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1
Price, qty 1-11 $200.28$200.28$200.28$156.54$156.54

This part, Ni2040QE29Differs from the Ni2040QE29

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

Ni2040QE29 Smart Lithium-Ion Battery: The Ni2040 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.

The Ni2040 can perform as low as -10C (note, in cases of low temperature applications, we strongly recommend testing in your specific application).

Features:

  • SMbus
  • Pull tab for easy removal
  • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

Ni2040QE29 Smart Li-ion battery customization options:

  • Custom label
  • Custom Firmware
  • Additional performance options for OEM applications N-series chargers are recommended for these batteries.

The Ni2040QE29 is our newest model, designed to outperform the previous Ni2040QE24, Ni2040A24 and Ni2040QE29 (with a lower current of 8A).
