Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NL2020ED22 | 10.8 V | 8.8 Ah | 95 Wh | 3S4P | Obsolete |
| NL2024ED22 | 14.4 V | 6.6 Ah | 95 Wh | 4S3P | Contact sales |
| Ni2020ED29 | 10.8 V | 8.4 Ah | 90 Wh | 3S3P | Active |
| Ni2020HD29 | 10.8 V | 8.4 Ah | 91 Wh | 3S3P | Active |
| Ni3020HD29 | 10.8 V | 8.4 Ah | 91 Wh | 3S3P | Active |
| RH2024HD34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
| RH2024QE34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

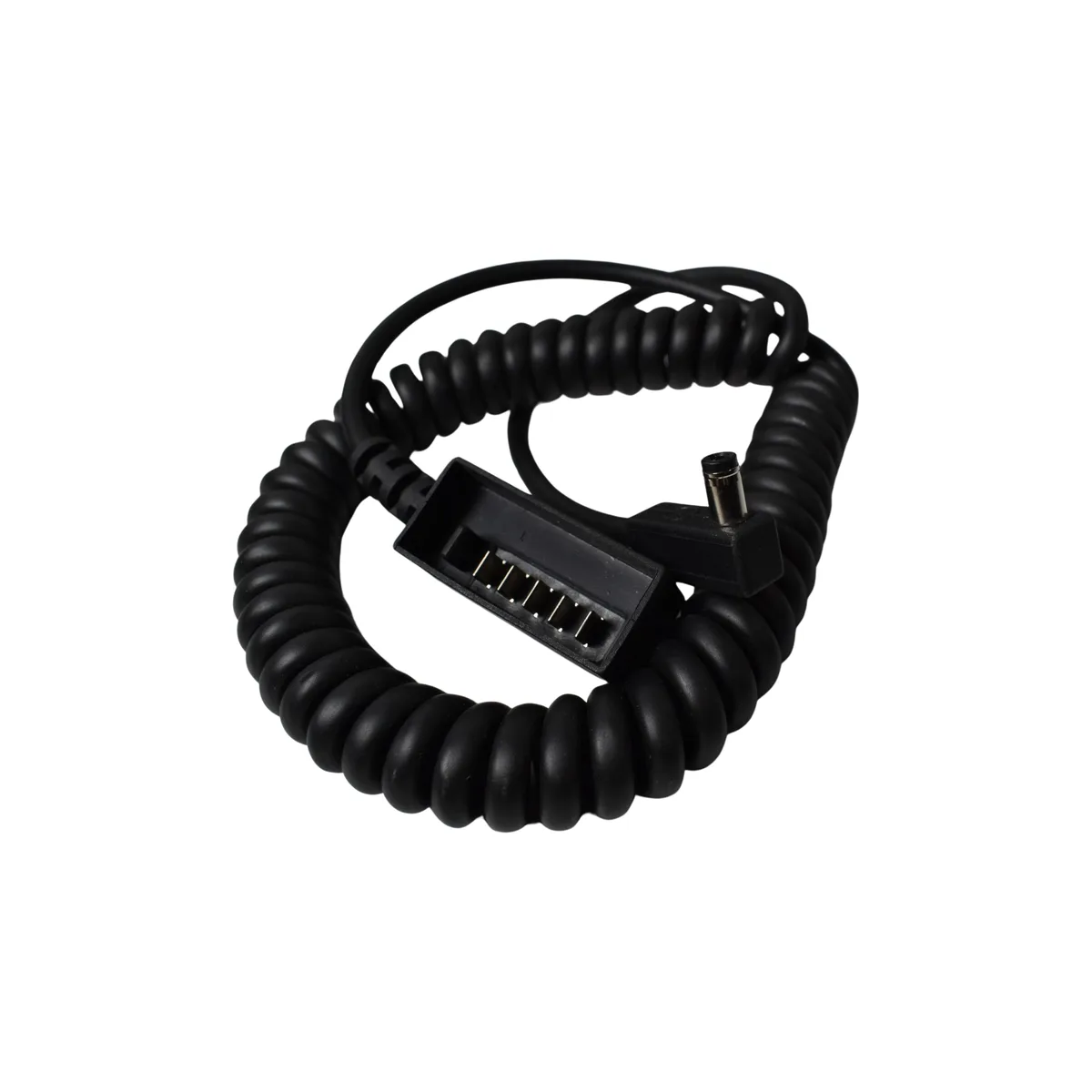

Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector.
