- N-Series
- Battery pack

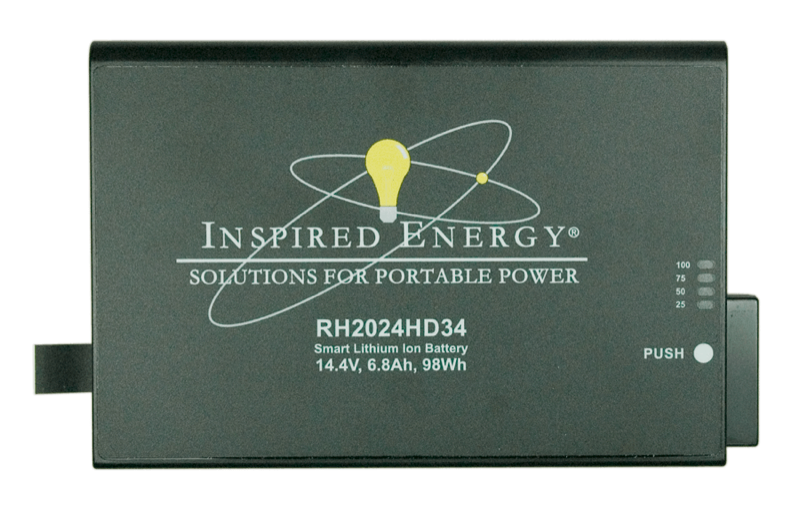

RH2024HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 3.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 250 Wh per litre |
| Gravimetric energy density | 209 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 167.7 × 107.7 × 21.7 mm (6.6 × 4.3 × 0.9 in) |
|---|---|
| Weight | 470 g (1.04 lb) |
| Form factor | Rectangular |
| Device cavity | 22.5mm x 109mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Push button 4-bar LED |
| Optional belt pack | BPXX or BC2BVX |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| 629035 | Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector. |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629010 | 3', 5-conductor straight cable |
| 629011 | 3', 2-conductor, curly cable |
| 629041 | 2-conductor, straight cable with cigarette-lighter socket |
Accessories
Compare with its family
Volume pricing available on every part.
 RH2024HD34 This part |  NL2024ED22 Same family |  RH2024QE34 Same family |  RH3024QE34 Same family | |
|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 6.6 Ah (differs) | 6.8 Ah | 6.8 Ah |
| Energy | 98 Wh | 95 Wh (differs) | 98 Wh | 98 Wh |
| Max discharge | 8 A | 10 A (differs) | 8 A | 10 A (differs) |
| Power | 80 W | 100 W (differs) | 80 W | 100 W (differs) |
| Cells | 8 × 18650 | 12 × 18650 (differs) | 8 × 18650 | 8 × 18650 |
| Configuration | 4S2P | 4S3P (differs) | 4S2P | 4S2P |
| Dimensions (mm) | 167.7 × 107.7 × 21.7 | 167.7 × 109.22 × 22.86 (differs) | 167.7 × 107.7 × 21.7 | 167.7 × 109.22 × 22.86 (differs) |
| Volume (mm³) | 391,930 | 418,708 (differs) | 391,930 | 418,708 (differs) |
| Weight | 470 g | 647 g (differs) | 470 g | 470 g |
| Gravimetric density | 209 Wh per kg | 147 Wh per kg (differs) | 209 Wh per kg | 209 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Push button 4-bar LED | Push button 4-bar LED | Push button 4-bar LED | Push button 4-bar LED |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $182.38 | Quote | $185.04 | $192.31 |
This part, RH2024HD34Differs from the RH2024HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
We recommend using the NH2054 or NH2034 models for new designs.
An alternative for existing designs is the RH2024 model.
This model uses the same plastic case as the NL2024, but only fills it with 8 cells creating a 30% lighter option.
The NL2024 and RH2024 are capable for low temperature applications as it can performs as low as -10°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 8A/10A discharge capability, the NL2024 and RH2024 are ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The RH2024HD34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
