- N-Series
- Battery pack

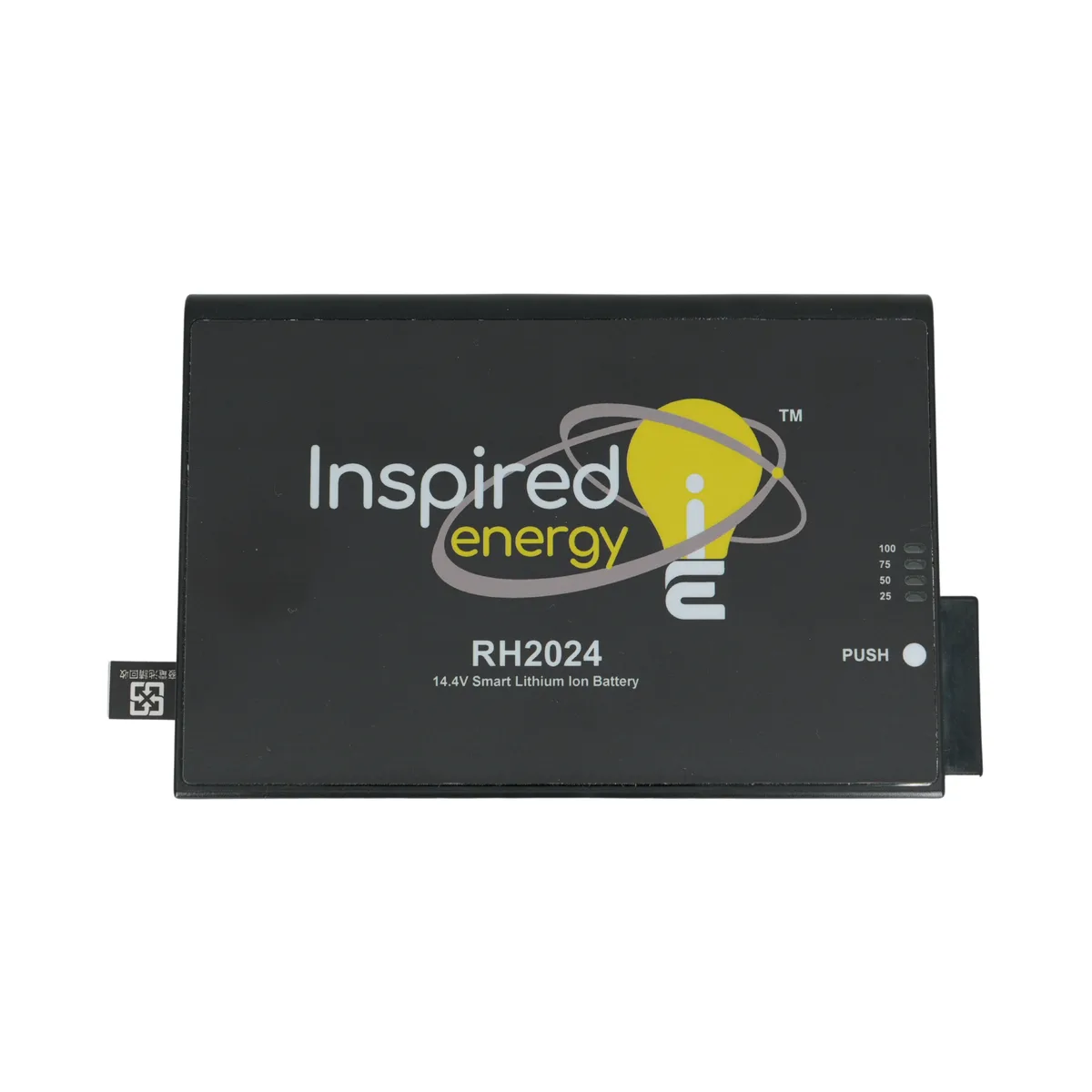

RH2024QE34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 3.0.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 250 Wh per litre |
| Gravimetric energy density | 209 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 167.7 × 107.7 × 21.7 mm (6.6 × 4.3 × 0.9 in) |
|---|---|
| Weight | 470 g (1.04 lb) |
| Form factor | Rectangular |
| Device cavity | 22.5mm x 109mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Push button 4-bar LED |
| Optional belt pack | BPXX or BC2BVX |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, CAN/CSA C22.2 No. 62133-2, BIS (India) |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| 629035 | Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector. |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629010 | 3', 5-conductor straight cable |
| 629011 | 3', 2-conductor, curly cable |
| 629041 | 2-conductor, straight cable with cigarette-lighter socket |
Accessories
Compare with its family
Volume pricing available on every part.
 RH2024QE34 This part |  NH2034QE34 Same series |  NH2054QE34 Same series |  NH3054QE34 Same series |  RH3024QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 6.8 Ah | 6.8 Ah | 6.8 Ah | 6.8 Ah |
| Energy | 98 Wh | 98 Wh | 98 Wh | 98 Wh | 98 Wh |
| Max discharge | 8 A | 8 A | 8 A | 10 A (differs) | 10 A (differs) |
| Power | 80 W | 80 W | 80 W | 100 W (differs) | 100 W (differs) |
| Cells | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 |
| Configuration | 4S2P | 4S2P | 4S2P | 4S2P | 4S2P |
| Dimensions (mm) | 167.7 × 107.7 × 21.7 | 282 × 42.5 × 23 (differs) | 153 × 78.7 × 23 (differs) | 153 × 78.7 × 23 (differs) | 167.7 × 109.22 × 22.86 (differs) |
| Volume (mm³) | 391,930 | 275,655 (differs) | 276,945 (differs) | 276,945 (differs) | 418,708 (differs) |
| Weight | 470 g | 435 g (differs) | 435 g (differs) | 435 g (differs) | 470 g |
| Gravimetric density | 209 Wh per kg | 225 Wh per kg (differs) | 225 Wh per kg (differs) | 225 Wh per kg (differs) | 209 Wh per kg |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Push button 4-bar LED |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $185.04 | $185.04 | $185.04 | $192.31 | $192.31 |
This part, RH2024QE34Differs from the RH2024QE34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
At 98Wh the latest 8-cell NH2054 or NH2034 models have similarly stored energy compared to the NL2024 & RH2024 models in a package which is 25% smaller and lighter.
We recommend using these models for new designs.
An alternative for existing designs.
The RH2024 is capable of low temperature applications as it can performs as low as -20°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 8A discharge capability, the RH2024 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The RH2024QE34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
