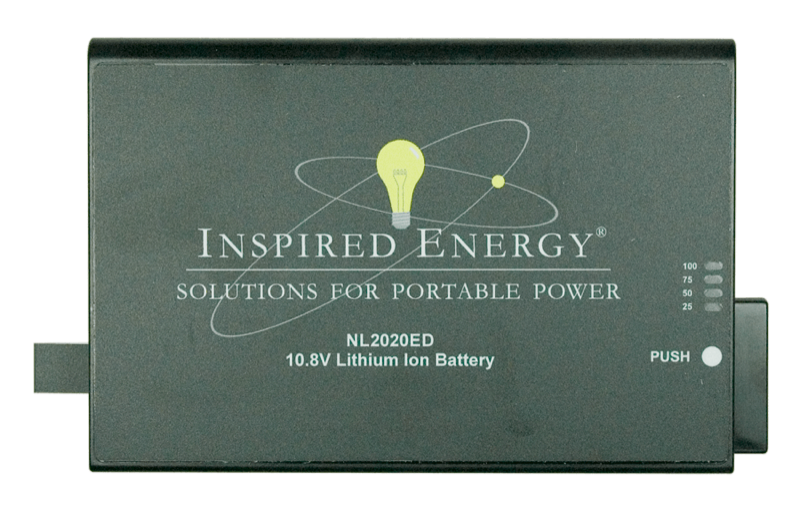

NL2020ED22
10.8 V smart lithium-ion battery
No longer manufactured. Contact us about the current equivalent.
Specifications (nominal & typical)
Source: datasheet Rev 1.3
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 8.8 Ah |
| Energy | 95 Wh |
| Volumetric energy density | 227 Wh per litre |
| Maximum discharge current | 10 A |
| Power | 75 W |
| Chemistry | Lithium-ion |
| Cells | 12 × 18650 |
| Configuration | 3S4P |
Mechanical
| Dimensions (L × W × H) | 167.7 × 109.22 × 22.86 mm (6.6 × 4.3 × 0.9 in) |
|---|---|
| Form factor | Rectangular |
| Device cavity | 22.5mm x 109mm cross section |
| Ingress protection | None |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Push button 4-bar LED |
| Optional belt pack | BC2DXX or BP2D1X01 |
Compliance and shipping
| Certifications | EMC Directive, Low Voltage Directive, Battery Directive, RoHS, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
| 629035 | Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector. |
Cables
| Part | What it is |
|---|---|
| 629010 | 3', 5-conductor straight cable |
| 629011 | 3', 2-conductor, curly cable |
| 629041 | 2-conductor, straight cable with cigarette-lighter socket |
Accessories
Compare with its family
Volume pricing available on every part.
 NL2020ED22 This part |  Ri3020HD29 Same family |  Ri3020QE29 Same family | |
|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 8.8 Ah | 8.4 Ah (differs) | 8.4 Ah (differs) |
| Energy | 95 Wh | 91 Wh (differs) | 91 Wh (differs) |
| Max discharge | 10 A | 10 A | 10 A |
| Power | 75 W | 75 W | 75 W |
| Cells | 12 × 18650 | 9 × 18650 (differs) | 9 × 18650 (differs) |
| Configuration | 3S4P | 3S3P (differs) | 3S3P (differs) |
| Dimensions (mm) | 167.7 × 109.22 × 22.86 | 167.7 × 109.22 × 22.86 | 167.7 × 109.22 × 22.86 |
| Volume (mm³) | 418,708 | 418,708 | 418,708 |
| Discharge temperature | - | −20 °C to +55 °C (differs) | −20 °C to +55 °C (differs) |
| SoC display | Push button 4-bar LED | Push button 4-bar LED | Push button 4-bar LED |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | Quote | $197.62 | $200.28 |
This part, NL2020ED22Differs from the NL2020ED22
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
At 95Wh the latest 9-cell Ni2040 or Ni2020 models have similar stored energy to this 12 cell in a package which is 25% smaller and lighter.
We recommend using either of these models for new designs.
The NL2020ED22 is scheduled for replacement by the Ri3020HD29.
The NL2020 is capable for low temperature as it can perform as low as -20°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 10A discharge capability, the NL2020 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
To place an order or for additional quantity pricing, please contact us.
