Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NL2020ED22 | 10.8 V | 8.8 Ah | 95 Wh | 3S4P | Obsolete |
| NL2024ED22 | 14.4 V | 6.6 Ah | 95 Wh | 4S3P | Contact sales |
| Ni2020ED29 | 10.8 V | 8.4 Ah | 90 Wh | 3S3P | Active |
| Ni2020HD29 | 10.8 V | 8.4 Ah | 91 Wh | 3S3P | Active |
| Ni3020HD29 | 10.8 V | 8.4 Ah | 91 Wh | 3S3P | Active |
| RH2024HD34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
| RH2024QE34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

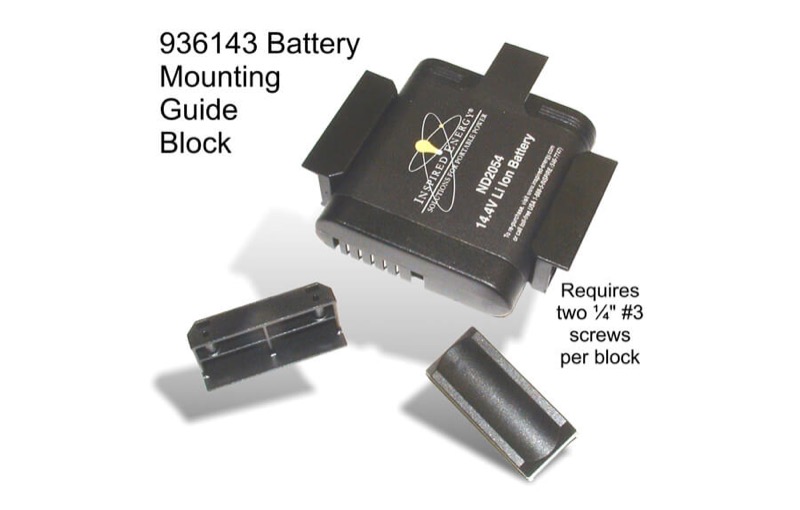

Battery Mounting Guide Block for 202x batteries Sold individually Circuit board and mounting hardware not included.
