Specifications (nominal & typical)
Source: current catalog record
Charging
| Bays | 4 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 3 listed below |
| Not compatible with | P & Nx4xxx Series batteries FCC & CE Compliant |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 400 × 200 × 126 mm (15.75 × 8 × 5 in) |
|---|---|
| Mating connector | 5-Pin Standard Connector |
Compliance
| Certifications | CE, REACH, RoHS3 |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NC3040QE30 | 10.8 V | 3 Ah | 32 Wh | 3S1P | Active |
| ND3054HD30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
| ND3054QE30 | 14.4 V | 3 Ah | 43 Wh | 4S1P | Active |
Cables
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

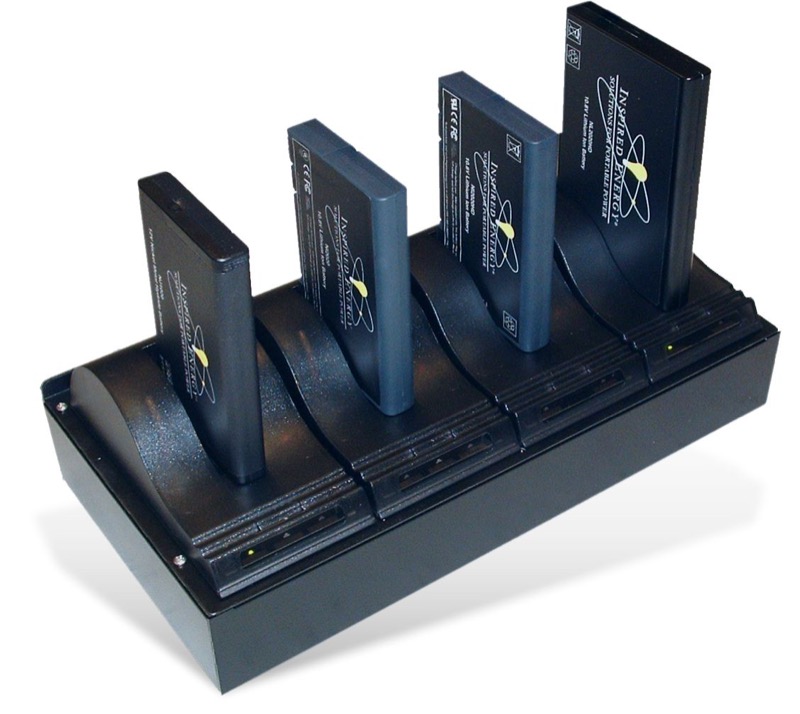

The CH5555CAL 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (4) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted.
While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery.
Variants are available for use in North America (CH5555A), Europe (CH5555E) or the UK (CH5555U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility.
Compliant to the current environmental standards for REACH/RoHS3.
Declarations are available below.
The CH5555 is not compatible with P & Nx4xxx Series batteries FCC & CE Compliant To place an order or for additional quantity pricing, please contact us.
