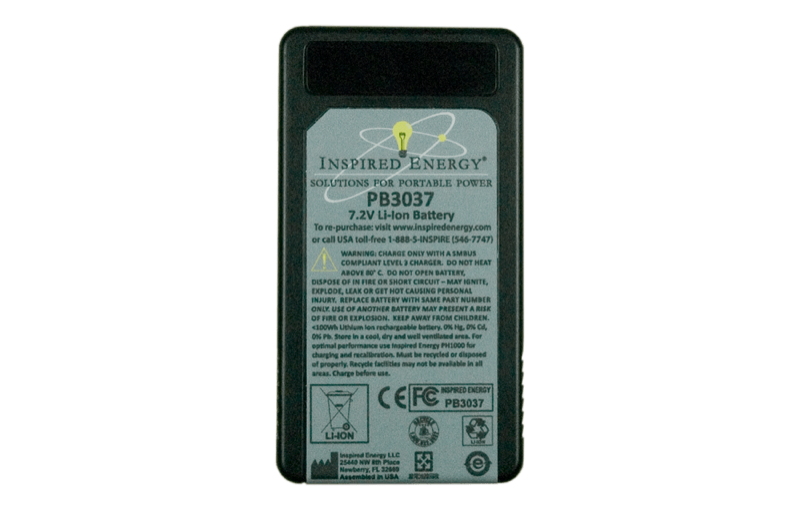

PB3037HD29
7.2 V smart lithium-ion battery
Limited availability. This part is quoted by sales rather than sold from stock.
Specifications (nominal & typical)
Source: current catalog record
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 20 Wh |
| Volumetric energy density | 129 Wh per litre |
| Maximum discharge current | 10 A |
| Power | 50 W |
| Chemistry | Lithium-ion |
| Cells | 2 × 18650 |
| Configuration | 2S1P |
Mechanical
| Dimensions (L × W × H) | 99 × 54 × 29 mm (3.8 × 2.1 × 54 in) |
|---|---|
| Form factor | Rectangular |
| Ingress protection | IP65 |
Interface
| Mating connector | 7-Pin D-Sub |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Equivalent lithium content | 4 g |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| PH4000 | 1 | Yes | No | No | Active |
| PH1000 | 1 | Yes | Yes | No | Active |
| PH1111 | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 619039 | 30A Right Angle PC mount mating connector for P- Series batteries. |
| 699012 | Backshell Required for 699013 |
| 699013 | Straight "P" Connector for Flying Lead |
| 699014 | P-Series Mating connector kit. |
| 699023 | P-Series Mating connector kit. |
Accessories
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
The PB3037 high power density smart battery is ideal for use in uninterruptible power supply systems and low-current DC motors etc.
Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods.
Complete with a new standard connector to handle its higher operating voltage and higher discharge currents.
Its rugged construction rating reflects its application in mobile environments.
The P-series charger is required for these batteries.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
The PB3037HD29 has been updated as a replacement for the previous PB3037HD25 & 26 models.
Please contact Sales to discuss volume pricing and availability.
Extended lead time will apply.
Custom options
Make it yours.
The PB3037HD29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
