Specifications (nominal & typical)
Source: datasheet Rev 1.4
Charging
| Bays | 1 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 10 listed below |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 180 × 92 × 88 mm (7 × 3.6 × 3.5 in) |
|---|---|
| Mating connector | 7-Pin D-Sub |
Compliance
| Certifications | REACH, RoHS3 |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| PB3037HD29 | 7.2 V | 2.8 Ah | 20 Wh | 2S1P | Contact sales |
| PH2054HD34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
| PH2054HD34 and PH4000 Package Offer | 14.4 V | 6.8 Ah | 98 Wh | - | Active |
| PH2059HD29 | 28.8 V | 2.9 Ah | 84 Wh | 8S1P | Active |
| PH2059HD34 | 28.8 V | 3.4 Ah | 98 Wh | 8S1P | Active |
| PH2059QE34 | 28.8 V | 3.4 Ah | 98 Wh | 8S1P | Active |
| PH3054HD29 | 14.4 V | 5.6 Ah | 81 Wh | 4S2P | Active |
| PH3054QE29 | 14.4 V | 5.6 Ah | 81 Wh | 4S2P | Active |
| PH3059HD29 | 28.8 V | 2.8 Ah | 81 Wh | 8S1P | Active |
| PH3059QE29 | 28.8 V | 2.8 Ah | 81 Wh | 8S1P | Active |
Stock numbers
| NSN (are available below.) | 6130-01-699-9237 |
|---|
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

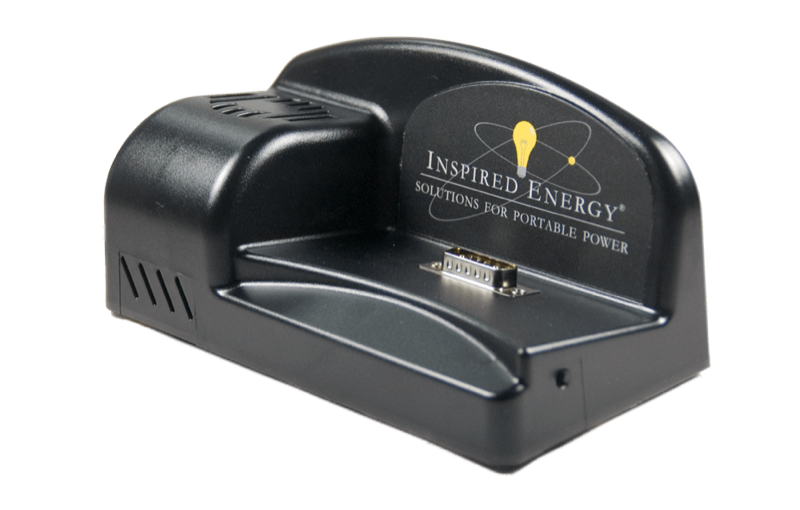

The PH1000 SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products.
Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.
AC mains cord options available, please specify your country application when ordering.
Compliant to the current environmental standards for REACH/RoHS3.
CE/FCC & customs Declarations are available below.
NSN 6130-01-699-9237 To place an order or for additional quantity pricing, please contact us.
