Specifications (nominal & typical)
Source: current catalog record
Charging
| Bays | 4 |
|---|---|
| Functions | Charge, Calibrate |
| Packs supported | 10 listed below |
Power
| Mains input | 110-240 VAC, 50-60 Hz |
|---|---|
| AC cord options | US, EU, UK |
Mechanical and interface
| Dimensions (L × W × H) | 400 × 203 × 159 mm (16 × 8 × 6.25 in) |
|---|---|
| Mating connector | 7-Pin D-Sub |
Compliance
| Certifications | REACH |
|---|
Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.
Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| PB3037HD29 | 7.2 V | 2.8 Ah | 20 Wh | 2S1P | Contact sales |
| PH2054HD34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
| PH2054HD34 and PH4000 Package Offer | 14.4 V | 6.8 Ah | 98 Wh | - | Active |
| PH2059HD29 | 28.8 V | 2.9 Ah | 84 Wh | 8S1P | Active |
| PH2059HD34 | 28.8 V | 3.4 Ah | 98 Wh | 8S1P | Active |
| PH2059QE34 | 28.8 V | 3.4 Ah | 98 Wh | 8S1P | Active |
| PH3054HD29 | 14.4 V | 5.6 Ah | 81 Wh | 4S2P | Active |
| PH3054QE29 | 14.4 V | 5.6 Ah | 81 Wh | 4S2P | Active |
| PH3059HD29 | 28.8 V | 2.8 Ah | 81 Wh | 8S1P | Active |
| PH3059QE29 | 28.8 V | 2.8 Ah | 81 Wh | 8S1P | Active |
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

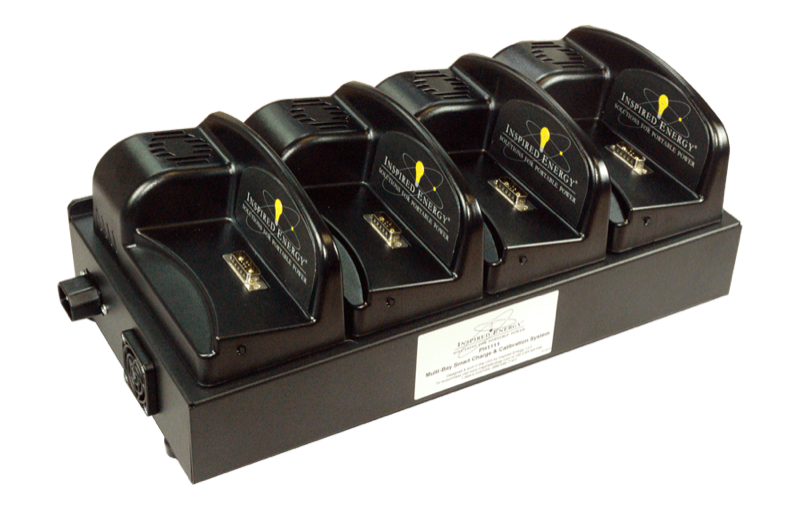

The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
Variants are available for use in North America (PH1111A), Europe (PH1111E) or the UK (PH1111U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility.
Compliant to the current environmental standards for REACH/RoHS2.
CE/FCC & customs Declarations are available below.
To place an order or for additional quantity pricing, please contact us.
