- P-Series
- Battery pack

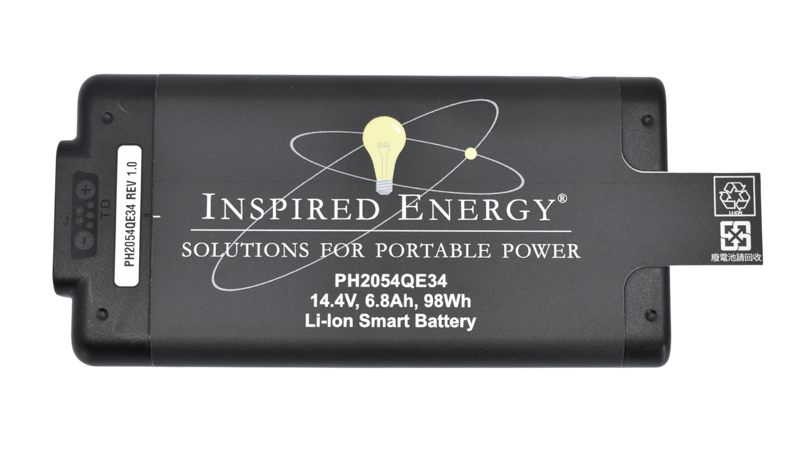

PH2054QE34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 257 Wh per litre |
| Gravimetric energy density | 218 Wh per kg |
| Maximum discharge current | 10 A |
| Power | 100 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 168.1 × 81.8 × 27.7 mm (6.62 × 3.22 × 1.1 in) |
|---|---|
| Weight | 450 g (0.99 lb) |
| Form factor | Rectangular |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | 7-Pin D-Sub |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | CE, EMC Directive, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, FCC Part 15 Class B, UL/CSA 62133, IEC 62133 2nd edition (CB report) |
|---|---|
| Equivalent lithium content | 6.9 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Connectors
| Part | What it is |
|---|---|
| 619039 | 30A Right Angle PC mount mating connector for P- Series batteries. |
| 699012 | Backshell Required for 699013 |
| 699013 | Straight "P" Connector for Flying Lead |
| 699014 | P-Series Mating connector kit. |
| 699023 | P-Series Mating connector kit. |
Accessories
Compare with its family
Volume pricing available on every part.
 PH2054QE34 This part |  PH3054QE29 Same family |  PH2059QE34 Same series |  PH3059QE29 Same series | |
|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 28.8 V (differs) | 28.8 V (differs) |
| Capacity | 6.8 Ah | 5.6 Ah (differs) | 3.4 Ah (differs) | 2.8 Ah (differs) |
| Energy | 98 Wh | 81 Wh (differs) | 98 Wh | 81 Wh (differs) |
| Max discharge | 10 A | 20 A (differs) | 6 A (differs) | 12 A (differs) |
| Power | 100 W | 200 W (differs) | 120 W (differs) | 240 W (differs) |
| Cells | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 |
| Configuration | 4S2P | 4S2P | 8S1P (differs) | 8S1P (differs) |
| Dimensions (mm) | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 |
| Volume (mm³) | 380,891 | 380,891 | 380,891 | 380,891 |
| Weight | 450 g | 450 g | 450 g | 450 g |
| Gravimetric density | 218 Wh per kg | 180 Wh per kg (differs) | 218 Wh per kg | 180 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −30 °C to +60 °C (differs) | −30 °C to +60 °C (differs) | −30 °C to +60 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | 7-Pin D-Sub | AMP/TYCO 787615-1, 787614-1 and 787613-1 (differs) | 7-Pin D-Sub | 7-Pin D-Sub |
| Price, qty 1-11 | $190.10 | $191.86 | $190.10 | $191.86 |
This part, PH2054QE34Differs from the PH2054QE34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
Complete with a new standard connector to handle its higher operating voltage and higher discharge currents.
The P-series charger is required for these batteries.
Its rugged construction rating reflects its application in mobile environments.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
Compatible with FG.1809, EM36-BPBT-1809 for EM360 units.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The PH2054QE34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
