- P-Series
- Battery pack

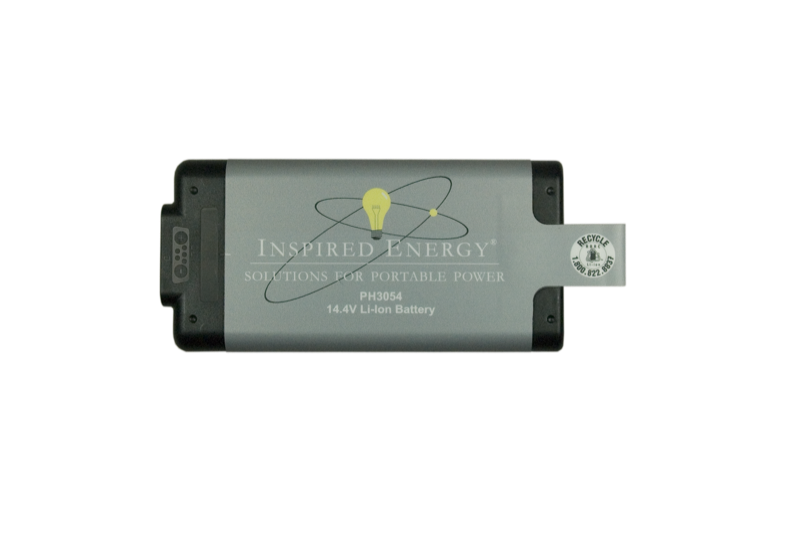

PH3054QE29
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.1.1
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 5.6 Ah |
| Energy | 81 Wh |
| Volumetric energy density | 213 Wh per litre |
| Gravimetric energy density | 180 Wh per kg |
| Maximum discharge current | 20 A |
| Power | 200 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 168.1 × 81.8 × 27.7 mm (6.62 × 3.22 × 1.1 in) |
|---|---|
| Weight | 450 g (0.99 lb) |
| Form factor | Rectangular |
| Device cavity | 27.8mm x 98.1mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −30 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP/TYCO 787615-1, 787614-1 and 787613-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, PSE (Japan), KC (Korea), BIS (India) |
|---|---|
| Equivalent lithium content | 4 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| PH4000 | 1 | Yes | No | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| PH1000 | 1 | Yes | Yes | No | Active |
| PH1111 | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 619039 | 30A Right Angle PC mount mating connector for P- Series batteries. |
| 699012 | Backshell Required for 699013 |
| 699013 | Straight "P" Connector for Flying Lead |
| 699014 | P-Series Mating connector kit. |
| 699023 | P-Series Mating connector kit. |
Accessories
Compare with its family
Volume pricing available on every part.
 PH3054QE29 This part |  PH2054QE34 Same family |  PH3059QE29 Same family |  PH2059QE34 Same series | |
|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 28.8 V (differs) | 28.8 V (differs) |
| Capacity | 5.6 Ah | 6.8 Ah (differs) | 2.8 Ah (differs) | 3.4 Ah (differs) |
| Energy | 81 Wh | 98 Wh (differs) | 81 Wh | 98 Wh (differs) |
| Max discharge | 20 A | 10 A (differs) | 12 A (differs) | 6 A (differs) |
| Power | 200 W | 100 W (differs) | 240 W (differs) | 120 W (differs) |
| Cells | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 |
| Configuration | 4S2P | 4S2P | 8S1P (differs) | 8S1P (differs) |
| Dimensions (mm) | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 | 168.1 × 81.8 × 27.7 |
| Volume (mm³) | 380,891 | 380,891 | 380,891 | 380,891 |
| Weight | 450 g | 450 g | 450 g | 450 g |
| Gravimetric density | 180 Wh per kg | 218 Wh per kg (differs) | 180 Wh per kg | 218 Wh per kg (differs) |
| Discharge temperature | −30 °C to +60 °C | −20 °C to +60 °C (differs) | −30 °C to +60 °C | −30 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP/TYCO 787615-1, 787614-1 and 787613-1 | 7-Pin D-Sub (differs) | 7-Pin D-Sub (differs) | 7-Pin D-Sub (differs) |
| Price, qty 1-11 | $191.86 | $190.10 | $191.86 | $190.10 |
This part, PH3054QE29Differs from the PH3054QE29
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods.
Complete with a new standard connector to handle its higher operating voltage and higher discharge currents.
Its rugged construction rating reflects its application in mobile environments.
The P-series charger is required for these batteries.
These smart Li-ion batteries can be customized to meet unique specifications.
Custom label, custom firmware and some performance options are available.
Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
The battery has the following approvals and the pack will be labeled according:
- CE
- FCC Part 15 Class B
- UKCA
- Japan PSE
- Korean KC
- India BIS The PH3054QE29 has been updated as a replacement for the previous PH3054xx25 & 26 models.
To place an order or for additional quantity pricing, please contact us.
Custom options
Make it yours.
The PH3054QE29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
