Compatibility
Packs supported
| Pack | Voltage | Capacity | Energy | Configuration | Status |
|---|---|---|---|---|---|
| NB2037HD34 | 7.2 V | 3.4 Ah | 24 Wh | 2S1P | Active |
| NB2037QE34 | 7.2 V | 3.4 Ah | 24 Wh | 2S1P | Active |
| NB3037HD29 | 7.2 V | 2.8 Ah | 20 Wh | 2S1P | Active |
| ND2034ED34 | 14.4 V | 3.4 Ah | 49 Wh | 4S1P | Active |
| ND2034HD34 | 14.4 V | 3.4 Ah | 49 Wh | 4S1P | Active |
| ND2034QE34 | 14.4 V | 3.4 Ah | 49 Wh | 4S1P | Active |
| ND2037HD34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
| ND2037QE34 | 7.2 V | 6.8 Ah | 49 Wh | 2S2P | Active |
| ND3034HD29 | 14.4 V | 2.8 Ah | 40 Wh | 4S1P | Active |
| ND3034QE29 | 14.4 V | 2.8 Ah | 40 Wh | 4S1P | Active |
| ND3037HD29 | 7.2 V | 5.6 Ah | 40 Wh | 2S2P | Active |
| NF2030HD34 | 10.8 V | 6.8 Ah | 73 Wh | 3S2P | Active |
| NF2030QE34 | 10.8 V | 6.8 Ah | 73 Wh | 3S2P | Active |
| NH2034HD34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
| NH2034QE34 | 14.4 V | 6.8 Ah | 98 Wh | 4S2P | Active |
Documents
Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog

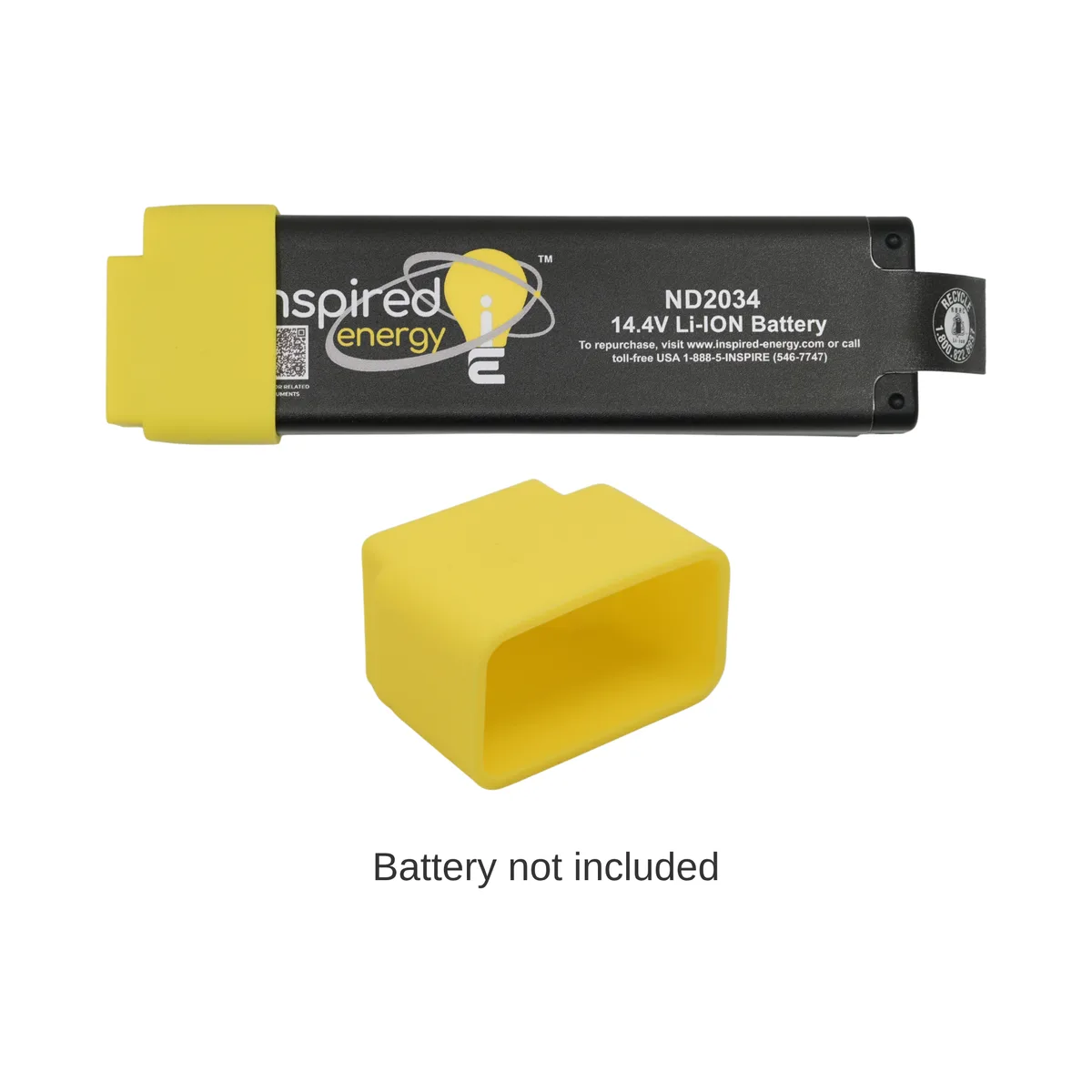

Travel / dust cap for 203x range batteries
