- N-Series
- Battery pack

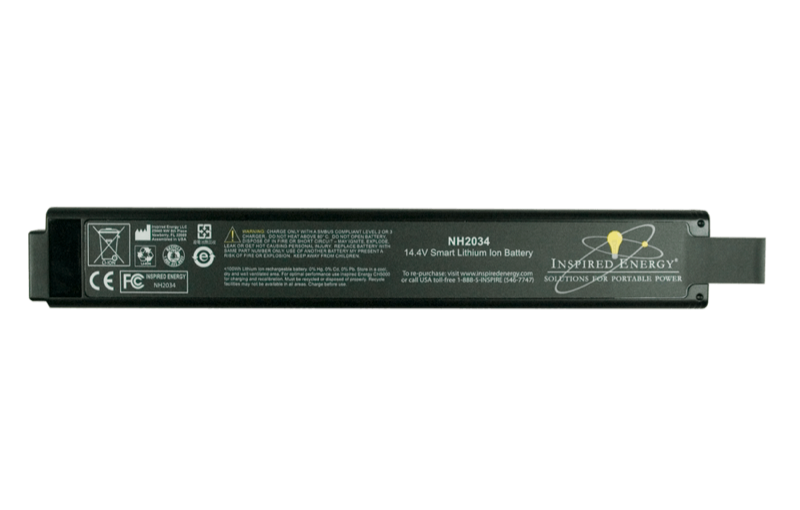

NH2034QE34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 356 Wh per litre |
| Gravimetric energy density | 225 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 80 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 4S2P |
Mechanical
| Dimensions (L × W × H) | 282 × 42.5 × 23 mm (11.1 × 1.7 × 0.9 in) |
|---|---|
| Weight | 435 g (0.96 lb) |
| Form factor | Rectangular |
| Device cavity | 24mm x 43mm cross-section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | −10 °C to +55 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, CAN/CSA C22.2 No. 62133-2, BIS (India) |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| Embedded Charger Boards | 1 | Yes | No | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629080 | 3' 5-Way cable |
Accessories
Compare with its family
Volume pricing available on every part.
 NH2034QE34 This part |  NH2054QE34 Same series |  NH3054QE34 Same series |  RH2024QE34 Same series |  RH3024QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 6.8 Ah | 6.8 Ah | 6.8 Ah | 6.8 Ah | 6.8 Ah |
| Energy | 98 Wh | 98 Wh | 98 Wh | 98 Wh | 98 Wh |
| Max discharge | 8 A | 8 A | 10 A (differs) | 8 A | 10 A (differs) |
| Power | 80 W | 80 W | 100 W (differs) | 80 W | 100 W (differs) |
| Cells | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 | 8 × 18650 |
| Configuration | 4S2P | 4S2P | 4S2P | 4S2P | 4S2P |
| Dimensions (mm) | 282 × 42.5 × 23 | 153 × 78.7 × 23 (differs) | 153 × 78.7 × 23 (differs) | 167.7 × 107.7 × 21.7 (differs) | 167.7 × 109.22 × 22.86 (differs) |
| Volume (mm³) | 275,655 | 276,945 (differs) | 276,945 (differs) | 391,930 (differs) | 418,708 (differs) |
| Weight | 435 g | 435 g | 435 g | 470 g (differs) | 470 g (differs) |
| Gravimetric density | 225 Wh per kg | 225 Wh per kg | 225 Wh per kg | 209 Wh per kg (differs) | 209 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Push button 4-bar LED (differs) | Push button 4-bar LED (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $185.04 | $185.04 | $192.31 | $185.04 | $192.31 |
This part, NH2034QE34Differs from the NH2034QE34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NH2034QE34 Smart Lithium-Ion Battery: The NH2034 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current.
The NH2034 can perform as low as -10°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application).
Also, with its 8A discharge capability, the NH2034 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NH2034QE34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
The NH2034QE34 is our newest model, designed to outperform the previous NH2034QE31 model.
Custom options
Make it yours.
The NH2034QE34 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
Explore custom optionsCustom label
Your brand or OEM labeling, printed in-house on our label line.
Custom firmware
Battery-management parameters tuned to your device's performance requirements.
Custom connector
Proprietary or standard connector options to match your device's interface.
Custom cell configuration
A different cell count, array or chemistry to hit your voltage and runtime targets.
Custom enclosure
New tooling and injection molding for a form factor built around your device.
