N-Series
Battery pack

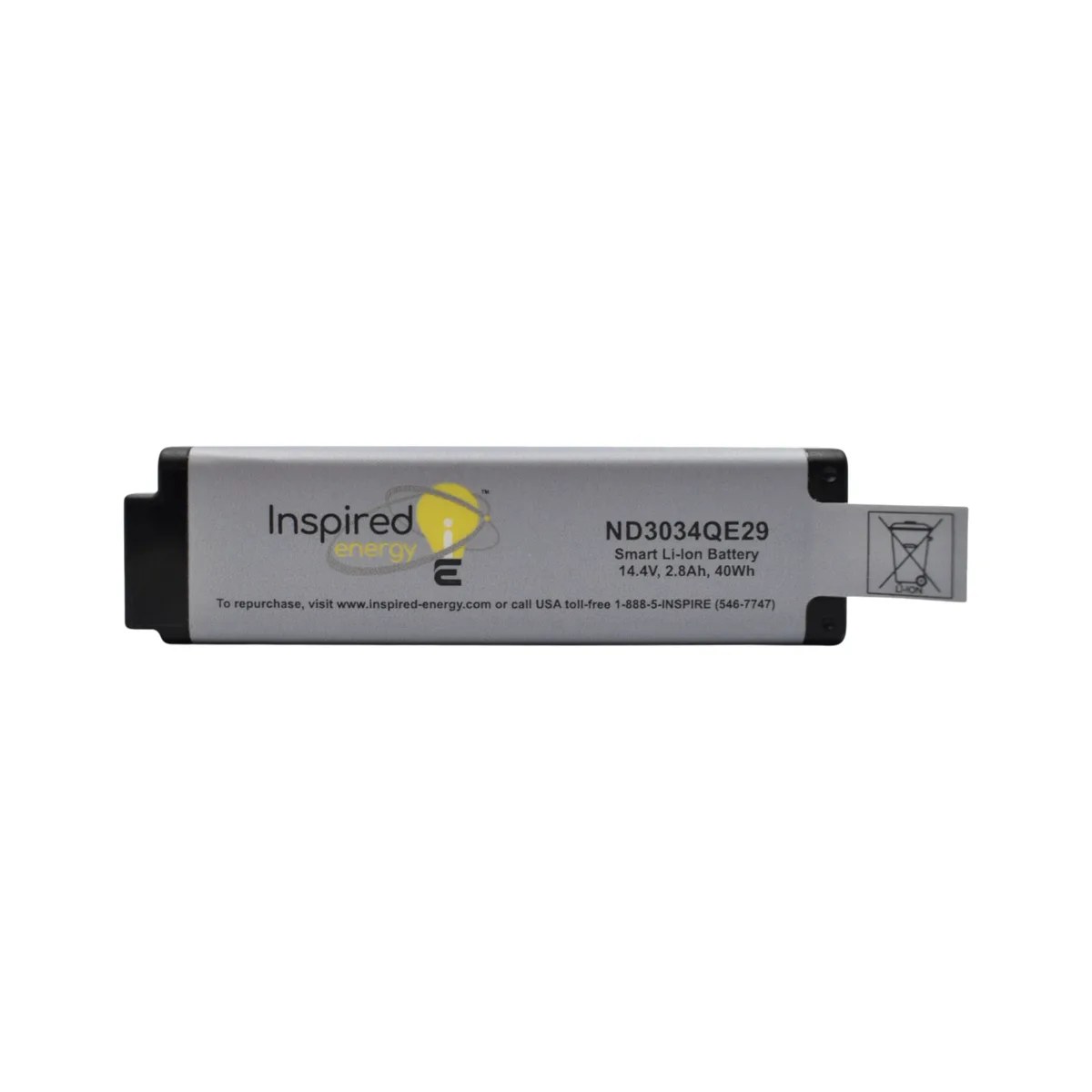

ND3034QE29

14.4 V smart lithium-ion battery

Active Specs per datasheet Rev 1.0.1 UL approved

Voltage: 14.4V
Capacity: 2.8Ah
Energy: 40Wh
Max discharge: 10A
Power: 100W
18650 cells: 4S1P

Specifications (nominal & typical)

Source: datasheet Rev 1.0.1

Electrical

Electrical specifications for ND3034QE29
Voltage	14.4 V
Capacity	2.8 Ah
Energy	40 Wh
Volumetric energy density	271 Wh per litre
Gravimetric energy density	174 Wh per kg
Maximum discharge current	10 A
Power	100 W
Chemistry	Lithium-ion
Cells	4 × 18650
Configuration	4S1P

Mechanical

Mechanical specifications for ND3034QE29
Dimensions (L × W × H)	153 × 42 × 23 mm (6 × 1.7 × 0.9 in)
Weight	230 g (0.51 lb)
Form factor	Rectangular
Device cavity	24mm x 43mm cross-section
Ingress protection	None

Temperature limits

Temperature limits specifications for ND3034QE29
Discharge (operating)	−30 °C to +60 °C
Charge	0 °C to +45 °C
Storage	−20 °C to +60 °C

Interface

Interface specifications for ND3034QE29
Mating connector	AMP P/N 5787422-1 or 5787446-1
State-of-charge display	Always on 5-Bar LCD

Compliance and shipping

Compliance and shipping specifications for ND3034QE29
Certifications	EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), CAN/CSA C22.2 No. 62133-2, TÜV
Equivalent lithium content	4 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

Chargers that support the ND3034QE29
Charger	Bays	Charge	Calibrate	Set SoC 25%	Status
CH1000	1	Yes	Yes	No	Active
CH4000	1	Yes	No	No	Active
CH1000CAL	1	Yes	Yes	No	Active
CH1010	2	Yes	Yes	No	Active
CH1111	4	Yes	Yes	No	Active
CH5000	1	Yes	Yes	No	Active
CH7000	1	Yes	No	No	Active
CH7100	1	Yes	No	No	Active
CH4040	2	Yes	No	No	Active
CH5050	2	Yes	Yes	No	Active
CH7070	2	Yes	No	No	Active
CH7171	2	Yes	No	No	Active
CH1111CAL	4	Yes	Yes	No	Active
CH4444	4	Yes	No	No	Active
CH5555	4	Yes	Yes	No	Active
CH6555	6	Yes	Yes	No	Active
CR12	12	Yes	No	No	Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

Connectors that fit the ND3034QE29
Part	What it is
610005	Straight Connector - TE Part Number: 5787446-1
610007	90° Connector with Right-Hand Key - TE Part Number: 5787422-1
610018	90° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237A	Connector Mounting Circuit Board
EB397A	Connector Board with Ideal Diode Circuit.

Cables

Cables that fit the ND3034QE29
Part	What it is
629080	3' 5-Way cable

Accessories

Accessories that fit the ND3034QE29
Part	What it is
936188	Travel / dust cap for 203x range batteries
ATA004N	USB-to-SMBus smart battery interface with “Y” USB/Battery cable.

Compare with its family

Volume pricing available on every part.

ND3034QE29 compared with related parts
	ND3034QE29 This part	ND2034QE34 Same family	ND3054QE30 Same series	ND2054QE34 Same series	ND4054QE50 Same series
Voltage	14.4 V	14.4 V	14.4 V	14.4 V	14.4 V
Capacity	2.8 Ah	3.4 Ah (differs)	3 Ah (differs)	3.4 Ah (differs)	5 Ah (differs)
Energy	40 Wh	49 Wh (differs)	43 Wh (differs)	49 Wh (differs)	72 Wh (differs)
Max discharge	10 A	4 A (differs)	10 A	4 A (differs)	8 A (differs)
Power	100 W	40 W (differs)	100 W	40 W (differs)	80 W (differs)
Cells	4 × 18650	4 × 18650	4 × 18650	4 × 18650	4 × 21700 (differs)
Configuration	4S1P	4S1P	4S1P	4S1P	4S1P
Dimensions (mm)	153 × 42 × 23	153 × 42 × 23	86.4 × 78.7 × 23.02 (differs)	86.4 × 78.7 × 23.02 (differs)	94.89 × 96.57 × 27.26 (differs)
Volume (mm³)	147,798	147,798	156,529 (differs)	156,529 (differs)	249,798 (differs)
Weight	230 g	240 g (differs)	237 g (differs)	240 g (differs)	372 g (differs)
Gravimetric density	174 Wh per kg	204 Wh per kg (differs)	181 Wh per kg (differs)	204 Wh per kg (differs)	194 Wh per kg (differs)
Discharge temperature	−30 °C to +60 °C	−20 °C to +60 °C (differs)	−30 °C to +60 °C	−20 °C to +60 °C (differs)	−20 °C to +55 °C (differs)
SoC display	Always on 5-Bar LCD	Always on 5-Bar LCD	Always on 5-Bar LCD	Always on 5-Bar LCD	Push button 4-bar LED (differs)
Mating connector	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1	5-Pin Standard Connector (differs)	AMP P/N 5787422-1 or 5787446-1	AMP P/N 5787422-1 or 5787446-1
Price, qty 1-11	$131.39	$123.24	$135.51	$123.24	$169.88

This part, ND3034QE29Differs from the ND3034QE29

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The ND3034QE29 can perform as low as -30°C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application).

Also, with its 10A discharge capability, the ND3034QE29 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.

Features:

SMbus
Pull tab for easy removal
On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

ND3034QE29 Smart Li-ion battery customization options:

Custom label
Custom Firmware
Additional performance options for OEM applications N-series chargers are recommended for these batteries.

Custom options

Make it yours.

The ND3034QE29 is a strong starting point. Inspired Energy's real advantage is what we can build from it: custom configurations made in Newberry, Florida, with no third-party manufacturer involved.
