- N-Series
- Battery pack

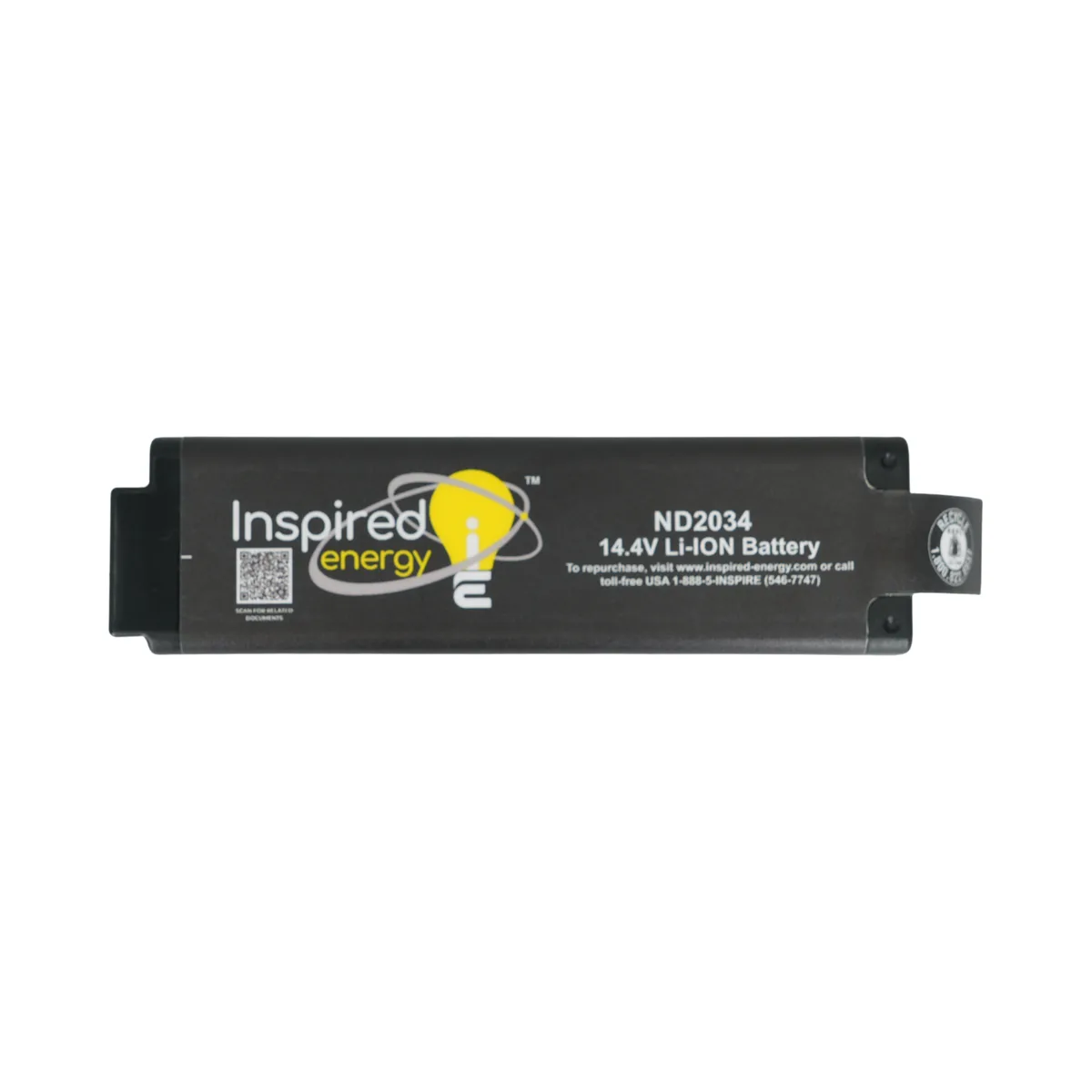

ND2034HD34
14.4 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 2.0
Electrical
| Voltage | 14.4 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 49 Wh |
| Volumetric energy density | 332 Wh per litre |
| Gravimetric energy density | 204 Wh per kg |
| Maximum discharge current | 4 A |
| Power | 40 W |
| Chemistry | Lithium-ion |
| Cells | 4 × 18650 |
| Configuration | 4S1P |
Mechanical
| Dimensions (L × W × H) | 153 × 42 × 23 mm (6 × 1.7 × 0.9 in) |
|---|---|
| Weight | 240 g (0.53 lb) |
| Form factor | Rectangular |
| Device cavity | 24mm x 43mm cross-section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B |
|---|---|
| Equivalent lithium content | 4 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629080 | 3' 5-Way cable |
Accessories
Compare with its family
Volume pricing available on every part.
 ND2034HD34 This part |  ND3034HD29 Same family |  ND2034QE34 Same family |  ND3034QE29 Same family | |
|---|---|---|---|---|
| Voltage | 14.4 V | 14.4 V | 14.4 V | 14.4 V |
| Capacity | 3.4 Ah | 2.8 Ah (differs) | 3.4 Ah | 2.8 Ah (differs) |
| Energy | 49 Wh | 40 Wh (differs) | 49 Wh | 40 Wh (differs) |
| Max discharge | 4 A | 10 A (differs) | 4 A | 10 A (differs) |
| Power | 40 W | 100 W (differs) | 40 W | 100 W (differs) |
| Cells | 4 × 18650 | 4 × 18650 | 4 × 18650 | 4 × 18650 |
| Configuration | 4S1P | 4S1P | 4S1P | 4S1P |
| Dimensions (mm) | 153 × 42 × 23 | 153 × 42 × 23 | 153 × 42 × 23 | 153 × 42 × 23 |
| Volume (mm³) | 147,798 | 147,798 | 147,798 | 147,798 |
| Weight | 240 g | 230 g (differs) | 240 g | 230 g (differs) |
| Gravimetric density | 204 Wh per kg | 174 Wh per kg (differs) | 204 Wh per kg | 174 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −30 °C to +60 °C (differs) | −20 °C to +60 °C | −30 °C to +60 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 |
| Price, qty 1-11 | $120.58 | $128.73 | $123.24 | $131.39 |
This part, ND2034HD34Differs from the ND2034HD34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
ND2034HD34 Smart Lithium-Ion Battery: The Inspired Energy 203x range of rechargeable smart Li-Ion battery packs are ideally designed for use in compact and handheld devices.
The ND2034HD34 (4S1P) 14.4V, 4A smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication.
The ND 2034 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
ND2034HD34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Consider the ND2034QE34 smart battery The ND2034HD34 is our newest model, design to outperform the previous ND2034HD29 & ND2034HD31 models.
