• N-Series
  • Battery pack

ND2034QE34

14.4 V smart lithium-ion battery

Active Specs per datasheet Rev 2.2 UL approved

Voltage
14.4V
Capacity
3.4Ah
Energy
49Wh
Max discharge
4A
Power
40W
18650 cells
4S1P
Datasheet (Rev 2.2) Request a quote

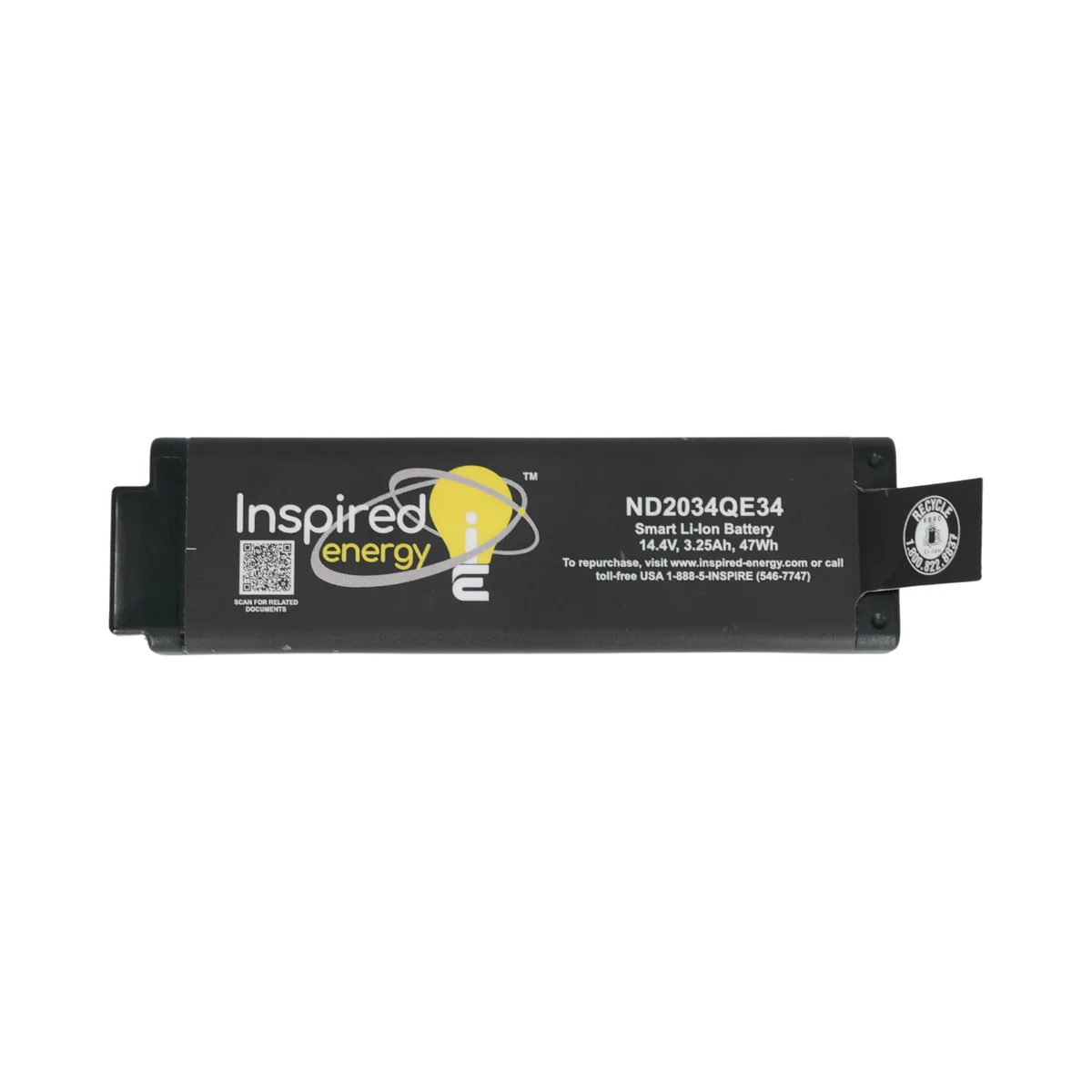

ND2034QE34 product photo

Specifications (nominal & typical)

Source: datasheet Rev 2.2

Electrical

Voltage14.4 V
Capacity3.4 Ah
Energy49 Wh
Volumetric energy density332 Wh per litre
Gravimetric energy density204 Wh per kg
Maximum discharge current4 A
Power40 W
ChemistryLithium-ion
Cells4 × 18650
Configuration4S1P

Mechanical

Dimensions (L × W × H)153 × 42 × 23 mm (6 × 1.7 × 0.9 in)
Weight240 g (0.53 lb)
Form factorRectangular
Device cavity24mm x 43mm cross-section
Ingress protectionNone

Temperature limits

Discharge (operating)−20 °C to +60 °C
Charge0 °C to +45 °C
Storage−20 °C to +60 °C

Interface

Mating connectorAMP P/N 5787422-1 or 5787446-1
State-of-charge displayAlways on 5-Bar LCD

Compliance and shipping

CertificationsEMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, CAN/CSA C22.2 No. 62133-2, BIS (India), KC (Korea)
Equivalent lithium content4 g

Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.

Compatibility

Chargers

ChargerBaysChargeCalibrateSet SoC 25%Status
CH1000 1 Yes Yes No Active
CH7000 1 Yes No No Active
CH1000CAL 1 Yes Yes No Active
CH1010 2 Yes Yes No Active
CH5555 4 Yes Yes No Active

Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.

Connectors

PartWhat it is
610005Straight Connector - TE Part Number: 5787446-1
61000790° Connector with Right-Hand Key - TE Part Number: 5787422-1
61001890° Connector with Left-Hand Key - TE Part Number 5787428-1
BL237AConnector Mounting Circuit Board
EB397AConnector Board with Ideal Diode Circuit.

Cables

PartWhat it is
6290803' 5-Way cable

Accessories

PartWhat it is
936188Travel / dust cap for 203x range batteries
ATA004NUSB-to-SMBus smart battery interface with “Y” USB/Battery cable.

Compare with its family

Volume pricing available on every part.

ND2034QE34 This part ND3034QE29 Same family ND2054QE34 Same series ND3054QE30 Same series ND4054QE50 Same series
Voltage 14.4 V14.4 V14.4 V14.4 V14.4 V
Capacity 3.4 Ah2.8 Ah3.4 Ah3 Ah5 Ah
Energy 49 Wh40 Wh49 Wh43 Wh72 Wh
Max discharge 4 A10 A4 A10 A8 A
Power 40 W100 W40 W100 W80 W
Cells 4 × 186504 × 186504 × 186504 × 186504 × 21700
Configuration 4S1P4S1P4S1P4S1P4S1P
Dimensions (mm) 153 × 42 × 23153 × 42 × 2386.4 × 78.7 × 23.0286.4 × 78.7 × 23.0294.89 × 96.57 × 27.26
Volume (mm³) 147,798147,798156,529156,529249,798
Weight 240 g230 g240 g237 g372 g
Gravimetric density 204 Wh per kg174 Wh per kg204 Wh per kg181 Wh per kg194 Wh per kg
Discharge temperature −20 °C to +60 °C−30 °C to +60 °C−20 °C to +60 °C−30 °C to +60 °C−20 °C to +55 °C
SoC display Always on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDAlways on 5-Bar LCDPush button 4-bar LED
Mating connector AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-1AMP P/N 5787422-1 or 5787446-15-Pin Standard ConnectorAMP P/N 5787422-1 or 5787446-1
Price, qty 1-11 $123.24$131.39$123.24$135.51$169.88

This part, ND2034QE34Differs from the ND2034QE34

All N-Series parts in the finder

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The Inspired Energy ND203x range of rechargeable smart Li-Ion battery packs are ideally designed for use in handheld devices with a variety of design and performance specifications: ND2034ED34 ( 4S1P ) 14.4V, 8A ND3034HD29 ( 4S1P ) 14.4V, 10A (Discharge -30°C to +60°C) ND2037HD34 (2S2P) 7.2V, 8A ND2037QE34 (2S2P) 7.2V, 8A.

Features:

  • SMbus
  • Pull tab for easy removal
  • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.

ND2034QE34 Smart Li-ion battery customization options:

  • Custom label
  • Custom Firmware
  • Additional performance options for OEM applications N-series chargers are recommended for these batteries.

Consider the ND2037QE34 smart battery The ND2034QE34 is our newest model, designed to outperform the previous ND2034HD29 & ND2034HD31 models.
