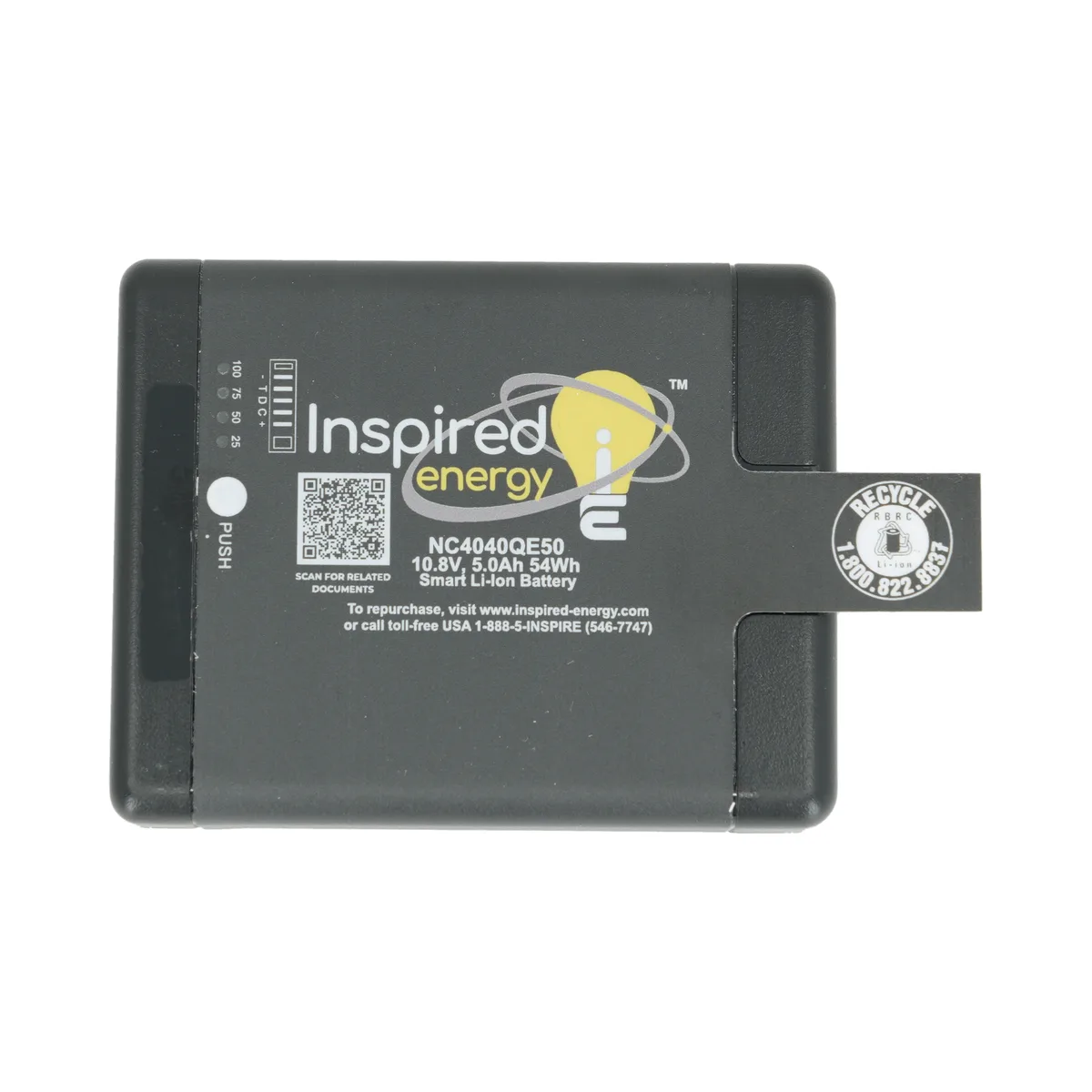

NC4040QE50
10.8 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.1
Electrical
| Voltage | 10.8 V |
|---|---|
| Capacity | 5 Ah |
| Energy | 54 Wh |
| Volumetric energy density | 279 Wh per litre |
| Gravimetric energy density | 190 Wh per kg |
| Maximum discharge current | 8 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | 3 × 21700 |
| Configuration | 3S1P |
Mechanical
| Dimensions (L × W × H) | 94.89 × 74.81 × 27.26 mm (3.74 × 2.95 × 1.08 in) |
|---|---|
| Weight | 284 g (0.63 lb) |
| Form factor | Square |
| Device cavity | 27.8mm x 76.4mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +55 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Push button 4-bar LED |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL/CSA 62133-2 (TÜV), BIS (India) |
|---|---|
| Equivalent lithium content | 2 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629103 | 3FT, 5-conductor straight cable for NC404x li-ion smart battery packs. |
Accessories
Compare with its family
Volume pricing available on every part.
 NC4040QE50 This part |  NC2040QE34 Same series |  NF2030QE34 Same series |  NF2040QE34 Same series |  NF3040QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 10.8 V | 10.8 V | 10.8 V | 10.8 V | 10.8 V |
| Capacity | 5 Ah | 3.4 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) | 6.8 Ah (differs) |
| Energy | 54 Wh | 37 Wh (differs) | 73 Wh (differs) | 73 Wh (differs) | 73 Wh (differs) |
| Max discharge | 8 A | 4 A (differs) | 8 A | 8 A | 10 A (differs) |
| Power | 60 W | 30 W (differs) | 60 W | 60 W | 75 W (differs) |
| Cells | 3 × 21700 | × 18650 (differs) | 6 × 18650 (differs) | 6 × 18650 (differs) | 6 × 18650 (differs) |
| Configuration | 3S1P | 3S1P | 3S2P (differs) | 3S2P (differs) | 3S2P (differs) |
| Dimensions (mm) | 94.89 × 74.81 × 27.26 | 84.87 × 58.77 × 21.89 (differs) | 219 × 42 × 23 (differs) | 151.1 × 59.02 × 22.4 (differs) | 151 × 59 × 22.4 (differs) |
| Volume (mm³) | 193,511 | 109,183 (differs) | 211,554 (differs) | 199,761 (differs) | 199,562 (differs) |
| Weight | 284 g | 184 g (differs) | 304 g (differs) | 349 g (differs) | 349 g (differs) |
| Gravimetric density | 190 Wh per kg | 201 Wh per kg (differs) | 240 Wh per kg (differs) | 209 Wh per kg (differs) | 209 Wh per kg (differs) |
| Discharge temperature | −20 °C to +55 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −30 °C to +60 °C (differs) |
| SoC display | Push button 4-bar LED | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) | Always on 5-Bar LCD (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $158.53 | $114.89 | $156.54 | $156.54 | $163.81 |
This part, NC4040QE50Differs from the NC4040QE50
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NC4040QE50 Smart Lithium-Ion Battery: The Inspired Energy 40xx range of rechargeable smart Li-Ion battery packs utilize 21700 cells and are designed for applications where size and runtime may be a consideration.
The NC4040QE50 (3S1P) 10.8V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication.
The NC4040 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance).
Features:
- SMbus
- Pull tab for easy removal
- On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance.
NC4040QE50 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications N-series chargers are recommended for these batteries.
Looking for something with a smaller format?
We recommend the NC3040HD29 smart battery Need additional capacity?
Check out our NF3040HD34 smart battery
