• Accessory

610018

Accessory

Active

Request the datasheet Request a quote

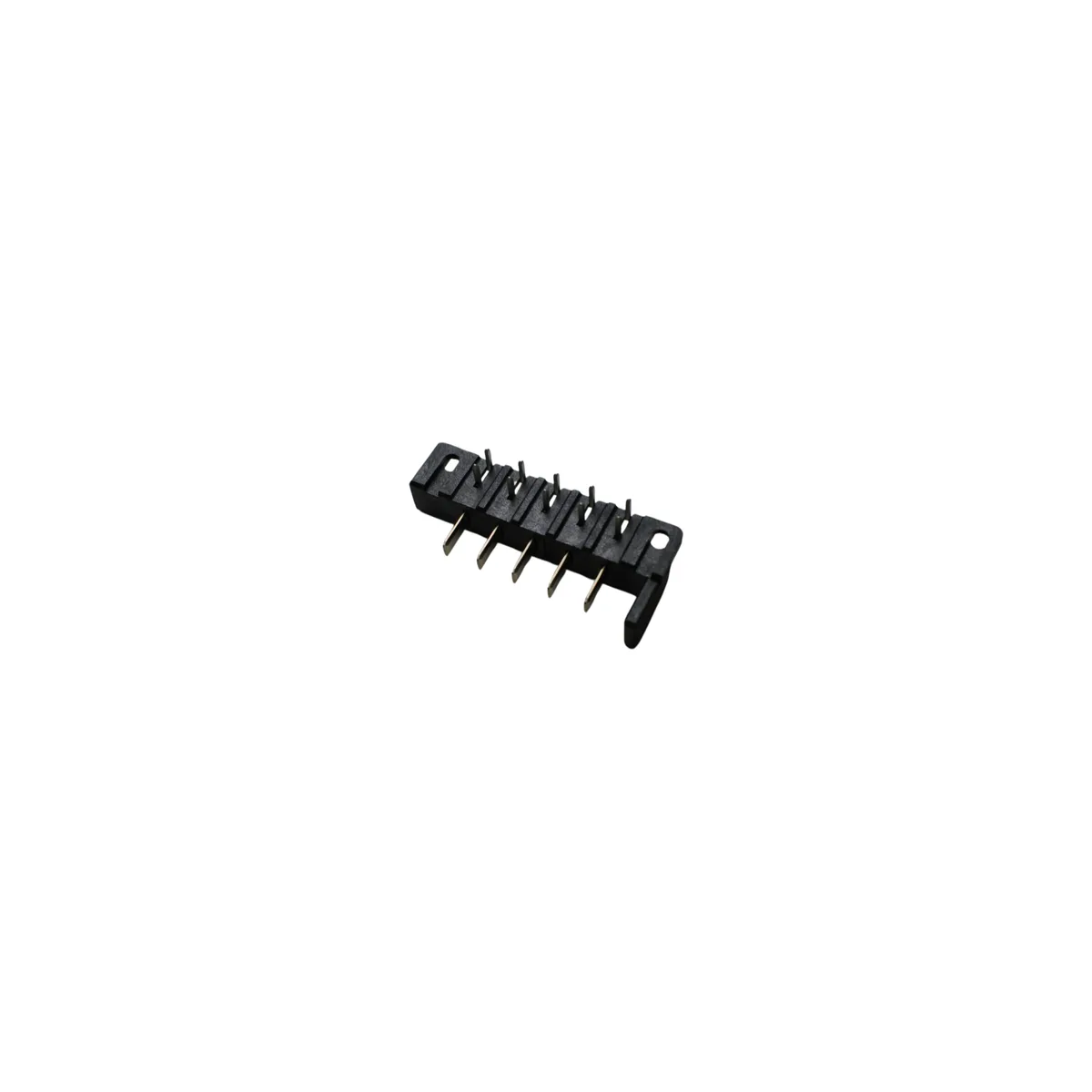

610018 product photo

Compatibility

Packs supported

PackVoltageCapacityEnergyConfigurationStatus
NB2037HD34 7.2 V 3.4 Ah 24 Wh 2S1P Active
NB2037QE34 7.2 V 3.4 Ah 24 Wh 2S1P Active
NB3037HD29 7.2 V 2.8 Ah 20 Wh 2S1P Active
NB4033HD50 3.6 V 10 Ah 36 Wh 1S2P Active
NB4037HD50 7.2 V 5 Ah 36 Wh 2S1P Active
NB4037QE50 7.2 V 5 Ah 36 Wh 2S1P Active
NC2040HD34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC2040QE34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC2560A22 10.8 V 2.2 Ah 24 Wh 3S1P Active
NC3040HD29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE30 10.8 V 3 Ah 32 Wh 3S1P Active
NC4040HD50 10.8 V 5 Ah 54 Wh 3S1P Active
NC4040QE50 10.8 V 5 Ah 54 Wh 3S1P Active
ND2017A34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2017QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2034ED34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2034HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2034QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2037HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2037QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2053ED34 3.6 V 13.6 Ah 49 Wh 1S4P Active
ND2054HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2054QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2057HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2057QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND3034HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3034QE29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3037HD29 7.2 V 5.6 Ah 40 Wh 2S2P Active
ND3054HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3054HD30 14.4 V 3 Ah 43 Wh 4S1P Active
ND3054QE30 14.4 V 3 Ah 43 Wh 4S1P Active
ND4054HD50 14.4 V 5 Ah 72 Wh 4S1P Active
ND4057HD50 7.2 V 10 Ah 72 Wh 2S2P Active
NE4068HD50 18 V 5 Ah 90 Wh 5S1P Active
NF2030HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2030QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2047HD34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF2047QE34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF3040HD29 10.8 V 5.6 Ah 60 Wh 3S2P Active
NF3040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF3040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NH2034HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2034QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2057ED34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NJ1020 12 V 3.9 Ah 47 Wh 10S1P Active
NL2020ED22 10.8 V 8.8 Ah 95 Wh 3S4P Obsolete
NL2024ED22 14.4 V 6.6 Ah 95 Wh 4S3P Contact sales
NL2054HD22 14.4 V 6.6 Ah 95 Wh 4S3P Obsolete
NL2054HD34 14.4 V 10.2 Ah 147 Wh 4S3P Active
NL2054QE34 14.4 V 10.2 Ah 147 Wh 4S3P Active
Ni1030CT 10.8 V 3.9 Ah 42 Wh 9S1P Active
Ni2020ED29 10.8 V 8.4 Ah 90 Wh 3S3P Active
Ni2020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040ED29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040QE29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni3020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
RH2024HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2024QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2044HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
Ri2050HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active

Documents

Datasheet on request. The current revision for this part is issued by engineering. Ask for it and it comes with the quote.

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

90° Connector with Left-Hand Key - TE Part Number 5787428-1

Can't find the right configuration?

We build custom battery packs, custom labels, firmware and connectors to fit your exact device. Tell us what it has to do.

Contact us Request a quote
