N-Series
Charger

CH1111CAL

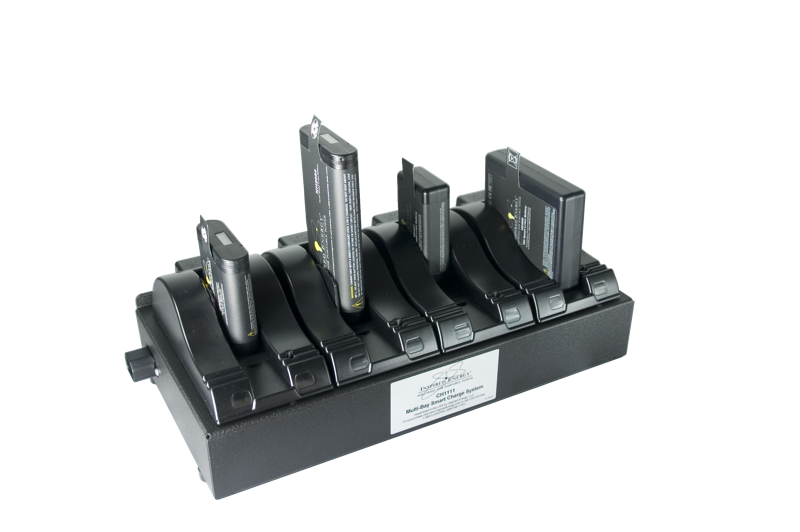

4-bay battery charger

Active

Capacity: 4bays
Supported: 60packs
Charge, Calibrate: 2modes

Specifications (nominal & typical)

Source: current catalog record

Charging

Charging specifications for CH1111CAL
Bays	4
Functions	Charge, Calibrate
Packs supported	60 listed below

Power

Power specifications for CH1111CAL
Power supply included	Yes
AC cord options	US, EU, UK

Mechanical and interface

Mechanical and interface specifications for CH1111CAL
Dimensions (L × W × H)	400 × 118 × 127 mm (16 × 8 × 5 in)
Mating connector	5-Pin Standard Connector

Compliance

Compliance specifications for CH1111CAL
Certifications	CE, REACH, RoHS3

Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.

Compatibility

Packs supported

Packs the CH1111CAL works with
Pack	Voltage	Capacity	Energy	Configuration	Status
NB4033HD50	3.6 V	10 Ah	36 Wh	1S2P	Active
NB4037HD50	7.2 V	5 Ah	36 Wh	2S1P	Active
NB4037QE50	7.2 V	5 Ah	36 Wh	2S1P	Active
NC2040QE34	10.8 V	3.4 Ah	37 Wh	3S1P	Active
NC3040HD29	10.8 V	2.8 Ah	30 Wh	3S1P	Active
NC3040QE29	10.8 V	2.8 Ah	30 Wh	3S1P	Active
NC3040QE30	10.8 V	3 Ah	32 Wh	3S1P	Active
NC4040HD50	10.8 V	5 Ah	54 Wh	3S1P	Active
NC4040QE50	10.8 V	5 Ah	54 Wh	3S1P	Active
ND2017A34	7.2 V	6.8 Ah	49 Wh	2S2P	Active
ND2034HD34	14.4 V	3.4 Ah	49 Wh	4S1P	Active
ND2034QE34	14.4 V	3.4 Ah	49 Wh	4S1P	Active
ND2037HD34	7.2 V	6.8 Ah	49 Wh	2S2P	Active
ND2037QE34	7.2 V	6.8 Ah	49 Wh	2S2P	Active
ND2053ED34	3.6 V	13.6 Ah	49 Wh	1S4P	Active
ND2054HD34	14.4 V	3.4 Ah	49 Wh	4S1P	Active
ND2054QE34	14.4 V	3.4 Ah	49 Wh	4S1P	Active
ND2057HD34	7.2 V	6.8 Ah	49 Wh	2S2P	Active
ND2057QE34	7.2 V	6.8 Ah	49 Wh	2S2P	Active
ND3034HD29	14.4 V	2.8 Ah	40 Wh	4S1P	Active
ND3034QE29	14.4 V	2.8 Ah	40 Wh	4S1P	Active
ND3054HD29	14.4 V	2.8 Ah	40 Wh	4S1P	Active
ND3054HD30	14.4 V	3 Ah	43 Wh	4S1P	Active
ND3054QE30	14.4 V	3 Ah	43 Wh	4S1P	Active
ND4054HD50	14.4 V	5 Ah	72 Wh	4S1P	Active
ND4054QE50	14.4 V	5 Ah	72 Wh	4S1P	Active
ND4057HD50	7.2 V	10 Ah	72 Wh	2S2P	Active
NE4068HD50	18 V	5 Ah	90 Wh	5S1P	Active
NE4068QE50	18 V	5 Ah	90 Wh	5S1P	Active
NF2030HD34	10.8 V	6.8 Ah	73 Wh	3S2P	Active
NF2030QE34	10.8 V	6.8 Ah	73 Wh	3S2P	Active
NF2040HD34	10.8 V	6.8 Ah	73 Wh	3S2P	Active
NF2040QE34	10.8 V	6.8 Ah	73 Wh	3S2P	Active
NF2047HD29	7.2 V	8.7 Ah	62.6 Wh	2S3P	Active
NF2047HD34	7.2 V	10.2 Ah	73 Wh	2S3P	Active
NF2047QE34	7.2 V	10.2 Ah	73 Wh	2S3P	Active
NF3040HD29	10.8 V	5.6 Ah	60 Wh	3S2P	Active
NH2054HD34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
NH2057ED34	7.2 V	13.6 Ah	98 Wh	2S4P	Active
NH2057HD34	7.2 V	13.6 Ah	98 Wh	2S4P	Active
NH2057QE34	7.2 V	13.6 Ah	98 Wh	2S4P	Active
NH3054HD34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
NH3054QE34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
NH3057HD34	7.2 V	13.6 Ah	98 Wh	2S4P	Active
NH3057QE34	7.2 V	13.6 Ah	98 Wh	2S4P	Active
NL2020ED22	10.8 V	8.8 Ah	95 Wh	3S4P	Obsolete
NL2054HD22	14.4 V	6.6 Ah	95 Wh	4S3P	Obsolete
NL2054HD34	14.4 V	10.2 Ah	147 Wh	4S3P	Active
NL2054QE34	14.4 V	10.2 Ah	147 Wh	4S3P	Active
Ni2020ED29	10.8 V	8.4 Ah	90 Wh	3S3P	Active
Ni2020HD29	10.8 V	8.4 Ah	91 Wh	3S3P	Active
Ni2040ED29	10.8 V	8.4 Ah	91 Wh	3S3P	Active
Ni2040HD29	10.8 V	8.4 Ah	91 Wh	3S3P	Active
Ni2040QE29	10.8 V	8.4 Ah	91 Wh	3S3P	Active
Ni3020HD29	10.8 V	8.4 Ah	91 Wh	3S3P	Active
RH2024HD34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
RH2024QE34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
RH2044HD34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
RH2054HD34	14.4 V	6.8 Ah	98 Wh	4S2P	Active
Ri2050HD29	10.8 V	8.4 Ah	91 Wh	3S3P	Active

Cables

Cables that fit the CH1111CAL
Part	What it is
551006	North American AC Cable: NEMA 5-15 to IEC320 C13: European AC Cable: UK AC Cable
551007	European AC Cable: Schucko 7/7 to IEC320 C13
551008	UK AC Cable: BS1363A to IEC320 C13

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The CH1111CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations.

The CH1111CAL is a standalone desktop unit has the added feature to perform a full recalibration cycle to Inspired Energy N & R-series battery products.

If you need a unit to fully charge the battery please review the CH1111 Variants are available for the AC mains cord.

North America (CH1111CALA), Europe (CH1111CALE) or the UK (CH1111CALU) for global compatibility.

Also avalable without the power cord (CH1111CALX) Compliant to the current environmental standards for REACH/RoHS3.

Declarations are available below.

CE Compliant To place an order or for additional quantity pricing, please contact us.
