CH1000CAL

1-bay battery charger

Active Specs per datasheet Rev 1.0

Capacity
1bay
Supported
62packs
Mains input
110-240VAC
Charge, Calibrate
2modes
Datasheet (Rev 1.0) Request a quote

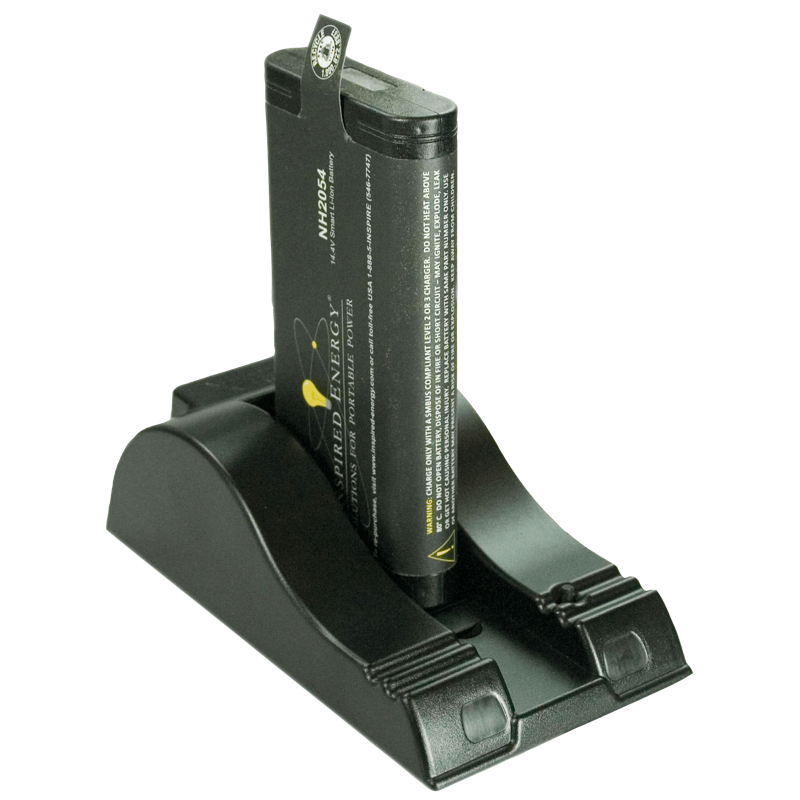

CH1000CAL product photo

Specifications (nominal & typical)

Source: datasheet Rev 1.0

Charging

Bays1
FunctionsCharge, Calibrate
Packs supported62 listed below

Power

Mains input110-240 VAC, 50-60 Hz
Power supply includedYes
AC cord optionsUS, EU, UK

Mechanical and interface

Dimensions (L × W × H)180 × 92 × 58 mm (7 × 3.5 × 2.25 in)
Mating connector5-Pin Standard Connector

Compliance

CertificationsREACH, RoHS3

Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.

Compatibility

Packs supported

PackVoltageCapacityEnergyConfigurationStatus
NB4033HD50 3.6 V 10 Ah 36 Wh 1S2P Active
NB4037HD50 7.2 V 5 Ah 36 Wh 2S1P Active
NB4037QE50 7.2 V 5 Ah 36 Wh 2S1P Active
NC2040QE34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC3040HD29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE30 10.8 V 3 Ah 32 Wh 3S1P Active
NC4040HD50 10.8 V 5 Ah 54 Wh 3S1P Active
NC4040QE50 10.8 V 5 Ah 54 Wh 3S1P Active
ND2017A34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2017QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2034HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2034QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2037HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2037QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2053ED34 3.6 V 13.6 Ah 49 Wh 1S4P Active
ND2054HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2054QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2057HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2057QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND3034HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3034QE29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3054HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3054HD30 14.4 V 3 Ah 43 Wh 4S1P Active
ND3054QE30 14.4 V 3 Ah 43 Wh 4S1P Active
ND4054HD50 14.4 V 5 Ah 72 Wh 4S1P Active
ND4054QE50 14.4 V 5 Ah 72 Wh 4S1P Active
ND4057HD50 7.2 V 10 Ah 72 Wh 2S2P Active
NE4068HD50 18 V 5 Ah 90 Wh 5S1P Active
NE4068QE50 18 V 5 Ah 90 Wh 5S1P Active
NF2030HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2030QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2047HD29 7.2 V 8.7 Ah 62.6 Wh 2S3P Active
NF2047HD34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF2047QE34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF3040HD29 10.8 V 5.6 Ah 60 Wh 3S2P Active
NF3040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2057ED34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NL2020ED22 10.8 V 8.8 Ah 95 Wh 3S4P Obsolete
NL2054HD22 14.4 V 6.6 Ah 95 Wh 4S3P Obsolete
NL2054HD34 14.4 V 10.2 Ah 147 Wh 4S3P Active
NL2054QE34 14.4 V 10.2 Ah 147 Wh 4S3P Active
Ni2020ED29 10.8 V 8.4 Ah 90 Wh 3S3P Active
Ni2020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040ED29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040QE29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni3020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
RH2024HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2024QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2044HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
Ri2050HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active

Cables

PartWhat it is
551006North American AC Cable: NEMA 5-15 to IEC320 C13: European AC Cable: UK AC Cable
551007European AC Cable: Schucko 7/7 to IEC320 C13
551008UK AC Cable: BS1363A to IEC320 C13

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

The CH1000CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations.

The CH1000CAL is a standalone desktop unit has the added feature to perform a full recalibration cycle to Inspired Energy N & R-series battery products.

If you need a unit to fully charge the battery please review the CH1000 Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility.

AC mains cord options available, please specify your country application when ordering.

Compliant to the current environmental standards for REACH/RoHS3.

Declarations are available below.

To place an order or for additional quantity pricing, please contact us.
