EB397A

Embeddable board

Active Specs per datasheet Rev 1.0

Datasheet (Rev 1.0) Request a quote

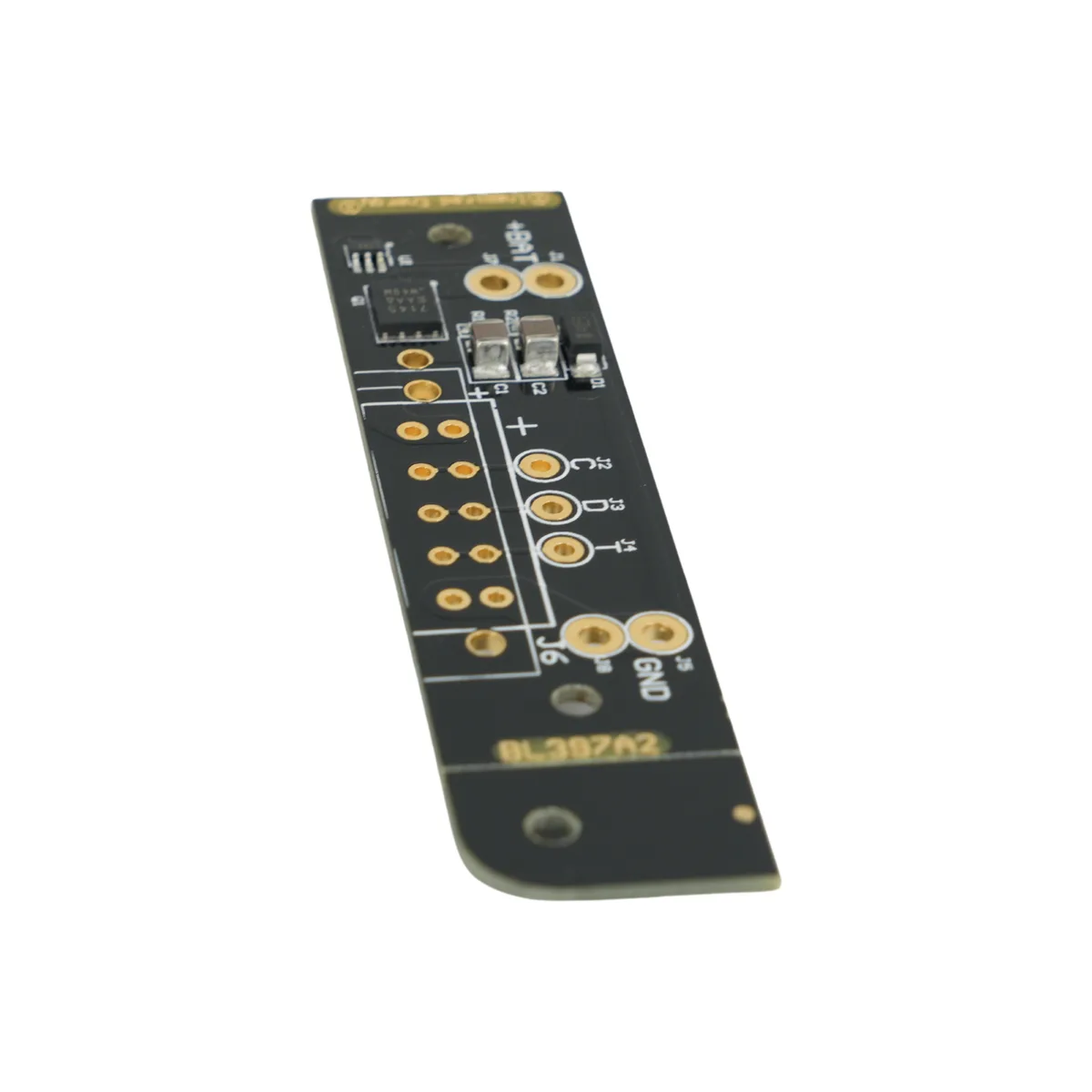

EB397A product photo

Specifications (nominal & typical)

Source: datasheet Rev 1.0

Electrical

OutputBattery voltage or input, whichever is higher

Confirm every value against the datasheet before you commit a design. Temperature limits, charge parameters and the pinout are on the datasheet.

Compatibility

Packs supported

PackVoltageCapacityEnergyConfigurationStatus
NB2037HD34 7.2 V 3.4 Ah 24 Wh 2S1P Active
NB2037QE34 7.2 V 3.4 Ah 24 Wh 2S1P Active
NB3037HD29 7.2 V 2.8 Ah 20 Wh 2S1P Active
NB4033HD50 3.6 V 10 Ah 36 Wh 1S2P Active
NB4037HD50 7.2 V 5 Ah 36 Wh 2S1P Active
NB4037QE50 7.2 V 5 Ah 36 Wh 2S1P Active
NC2040HD34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC2040QE34 10.8 V 3.4 Ah 37 Wh 3S1P Active
NC2560A22 10.8 V 2.2 Ah 24 Wh 3S1P Active
NC3040HD29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE29 10.8 V 2.8 Ah 30 Wh 3S1P Active
NC3040QE30 10.8 V 3 Ah 32 Wh 3S1P Active
NC4040HD50 10.8 V 5 Ah 54 Wh 3S1P Active
NC4040QE50 10.8 V 5 Ah 54 Wh 3S1P Active
ND2017A34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2017QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2034ED34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2034HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2034QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2037HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2037QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2053ED34 3.6 V 13.6 Ah 49 Wh 1S4P Active
ND2054HD34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2054QE34 14.4 V 3.4 Ah 49 Wh 4S1P Active
ND2057HD34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND2057QE34 7.2 V 6.8 Ah 49 Wh 2S2P Active
ND3034HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3034QE29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND3037HD29 7.2 V 5.6 Ah 40 Wh 2S2P Active
ND3054HD29 14.4 V 2.8 Ah 40 Wh 4S1P Active
ND4054HD50 14.4 V 5 Ah 72 Wh 4S1P Active
ND4057HD50 7.2 V 10 Ah 72 Wh 2S2P Active
NF2030HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2030QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF2047HD34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF2047QE34 7.2 V 10.2 Ah 73 Wh 2S3P Active
NF3040HD29 10.8 V 5.6 Ah 60 Wh 3S2P Active
NF3040HD34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NF3040QE34 10.8 V 6.8 Ah 73 Wh 3S2P Active
NH2034HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2034QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH2057ED34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH2057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3054QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
NH3057HD34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NH3057QE34 7.2 V 13.6 Ah 98 Wh 2S4P Active
NJ1020 12 V 3.9 Ah 47 Wh 10S1P Active
NL2020ED22 10.8 V 8.8 Ah 95 Wh 3S4P Obsolete
NL2024ED22 14.4 V 6.6 Ah 95 Wh 4S3P Contact sales
NL2054HD22 14.4 V 6.6 Ah 95 Wh 4S3P Obsolete
NL2054HD34 14.4 V 10.2 Ah 147 Wh 4S3P Active
NL2054QE34 14.4 V 10.2 Ah 147 Wh 4S3P Active
Ni1030CT 10.8 V 3.9 Ah 42 Wh 9S1P Active
Ni2020ED29 10.8 V 8.4 Ah 90 Wh 3S3P Active
Ni2020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040ED29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni2040QE29 10.8 V 8.4 Ah 91 Wh 3S3P Active
Ni3020HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active
RH2024HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2024QE34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2044HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
RH2054HD34 14.4 V 6.8 Ah 98 Wh 4S2P Active
Ri2050HD29 10.8 V 8.4 Ah 91 Wh 3S3P Active

Documents

Need a STEP model, drawing or test data that is not listed? Contact us.

Application notes

From the current catalog

Connector Board with Ideal Diode Circuit.

One EB397 is required per battery and connectors for the batteries must be purchased separately.

Can't find the right configuration?

We build custom battery packs, custom labels, firmware and connectors to fit your exact device. Tell us what it has to do.
