- N-Series
- Battery pack

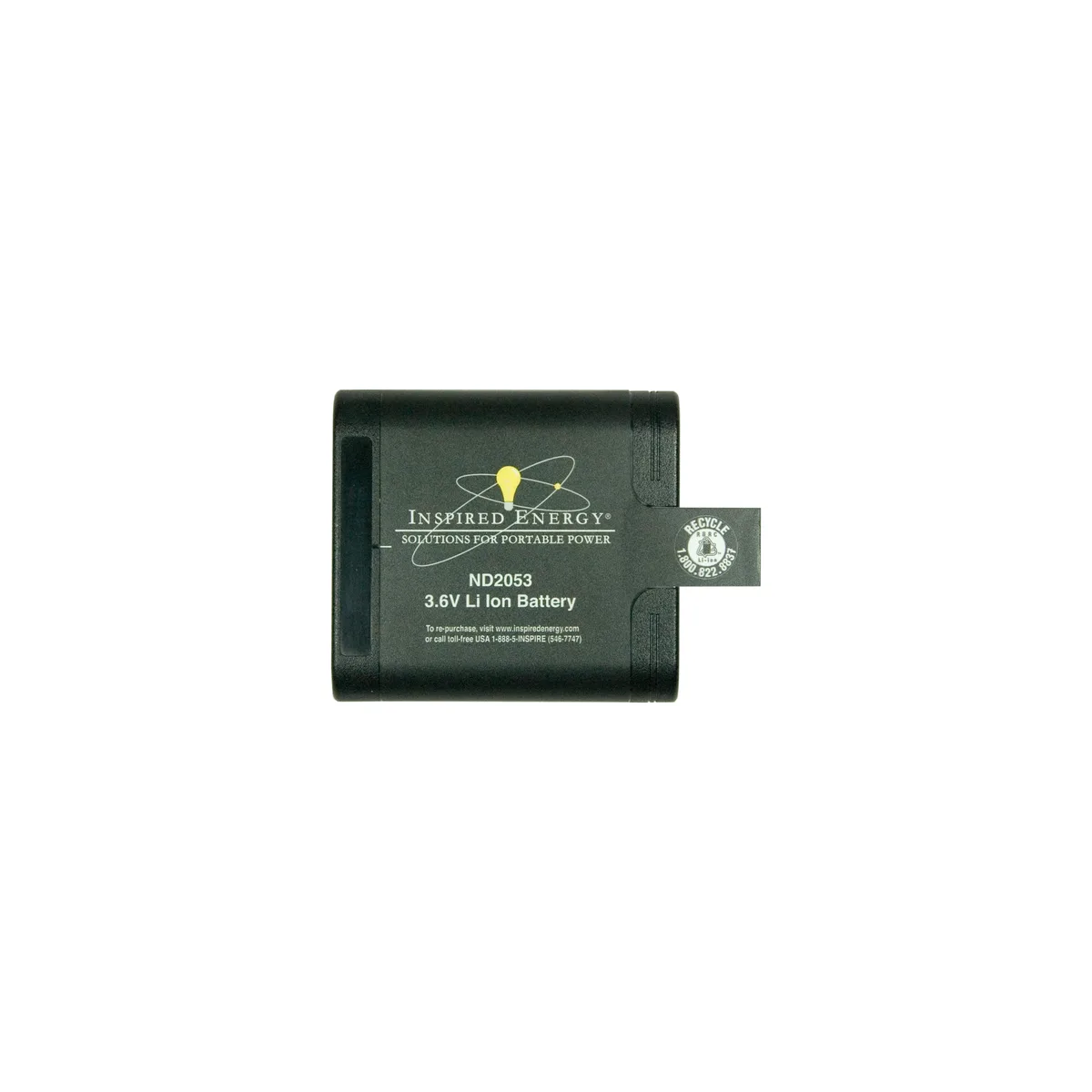

ND2053QE34
3.6 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0
Electrical
| Voltage | 3.6 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 49 Wh |
| Volumetric energy density | 331 Wh per litre |
| Gravimetric energy density | 204 Wh per kg |
| Chemistry | Lithium-ion |
| Cells | 4 × 18650 |
| Configuration | 1S4P |
Mechanical
| Dimensions (L × W × H) | 85.09 × 77.39 × 22.51 mm (3.35 × 3.047 × 0.886 in) |
|---|---|
| Weight | 240 g (0.53 lb) |
| Form factor | Square |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −10 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Communications | SMBUS |
|---|---|
| Mating connector | AMP P/N 5787446-1 |
| State-of-charge display | Always on 5-Bar LCD |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, CAN/CSA C22.2 No. 62133-2 |
|---|
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Compare with its family
Volume pricing available on every part.
 ND2053QE34 This part |  NH2057QE34 Same series |  NH3057QE34 Same series |  NF2047QE34 Same series |  ND2017QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 3.6 V | 7.2 V (differs) | 7.2 V (differs) | 7.2 V (differs) | 7.2 V (differs) |
| Capacity | 13.6 Ah | 13.6 Ah | 13.6 Ah | 10.2 Ah (differs) | 6.8 Ah (differs) |
| Energy | 49 Wh | 98 Wh (differs) | 98 Wh (differs) | 73 Wh (differs) | 49 Wh |
| Max discharge | - | 10 A (differs) | 12 A (differs) | 10 A (differs) | 3 A (differs) |
| Power | - | 50 W (differs) | 60 W (differs) | 50 W (differs) | 15 W (differs) |
| Cells | 4 × 18650 | 8 × 18650 (differs) | 8 × 18650 (differs) | 6 × 18650 (differs) | 4 × 18650 |
| Configuration | 1S4P | 2S4P (differs) | 2S4P (differs) | 2S3P (differs) | 2S2P (differs) |
| Dimensions (mm) | 85.09 × 77.39 × 22.51 | 153 × 78.7 × 23 (differs) | 150.37 × 77.39 × 22.51 (differs) | 151.1 × 59.02 × 22.4 (differs) | 144.65 × 37.59 × 20.07 (differs) |
| Volume (mm³) | 148,231 | 276,945 (differs) | 261,952 (differs) | 199,761 (differs) | 109,128 (differs) |
| Weight | 240 g | 435 g (differs) | 435 g (differs) | 349 g (differs) | 220 g (differs) |
| Gravimetric density | 204 Wh per kg | 225 Wh per kg (differs) | 225 Wh per kg (differs) | 209 Wh per kg (differs) | 223 Wh per kg (differs) |
| Discharge temperature | −10 °C to +60 °C | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) | −20 °C to +60 °C (differs) |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Push button 4-bar LED (differs) |
| Mating connector | AMP P/N 5787446-1 | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | AMP P/N 5787422-1 or 5787446-1 (differs) | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | Quote | $192.31 | $195.31 | $156.54 | $123.24 |
This part, ND2053QE34Differs from the ND2053QE34
