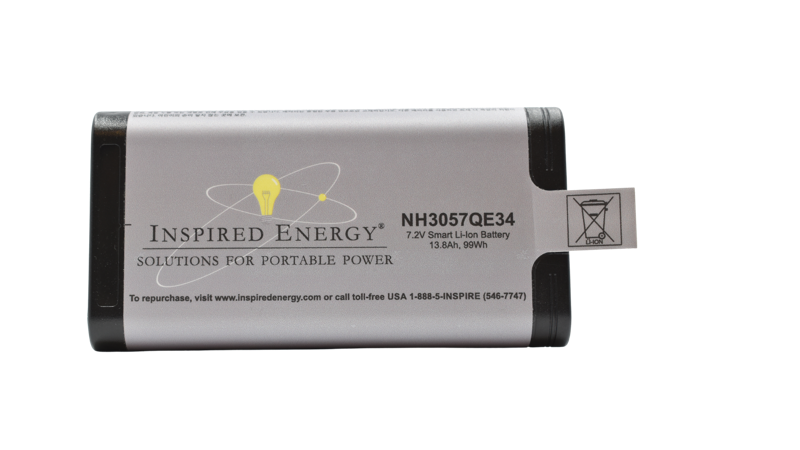

NH3057QE34
7.2 V smart lithium-ion battery
Specifications (nominal & typical)
Source: datasheet Rev 1.0.1
Electrical
| Voltage | 7.2 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 98 Wh |
| Volumetric energy density | 374 Wh per litre |
| Gravimetric energy density | 225 Wh per kg |
| Maximum discharge current | 12 A |
| Power | 60 W |
| Chemistry | Lithium-ion |
| Cells | 8 × 18650 |
| Configuration | 2S4P |
Mechanical
| Dimensions (L × W × H) | 150.37 × 77.39 × 22.51 mm (5.92 × 3.047 × 0.886 in) |
|---|---|
| Weight | 435 g (0.96 lb) |
| Form factor | Rectangular |
| Device cavity | 23.5mm x 80mm cross section |
| Ingress protection | None |
Temperature limits
| Discharge (operating) | −20 °C to +60 °C |
|---|---|
| Charge | 0 °C to +45 °C |
| Storage | −20 °C to +60 °C |
Interface
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
|---|---|
| State-of-charge display | Always on 5-Bar LCD |
| Optional belt pack | MPL205X or MCL205X |
Compliance and shipping
| Certifications | EMC Directive, UKCA, Battery Directive, RoHS3, REACH, WEEE, UN 38.3, CE, FCC Part 15 Class B, IEC 62133-2 (CB report), UL 62133-2, CAN/CSA C22.2 No. 62133-2, KC (Korea), BIS (India), PSE (Japan) |
|---|---|
| Equivalent lithium content | 8 g |
Confirm every value against the datasheet before you commit a design. Weight and temperature limits are read from the datasheet; energy densities are calculated from it. Charge parameters and the pinout are on the datasheet.
Compatibility
Chargers
| Charger | Bays | Charge | Calibrate | Set SoC 25% | Status |
|---|---|---|---|---|---|
| CH1000 | 1 | Yes | Yes | No | Active |
| CH4000 | 1 | Yes | No | No | Active |
| CH1000CAL | 1 | Yes | Yes | No | Active |
| CH1010 | 2 | Yes | Yes | No | Active |
| CH1111 | 4 | Yes | Yes | No | Active |
| CH5000 | 1 | Yes | Yes | No | Active |
| CH7000 | 1 | Yes | No | No | Active |
| CH7100 | 1 | Yes | No | No | Active |
| CH4040 | 2 | Yes | No | No | Active |
| CH5050 | 2 | Yes | Yes | No | Active |
| CH7070 | 2 | Yes | No | No | Active |
| CH7171 | 2 | Yes | No | No | Active |
| CH1111CAL | 4 | Yes | Yes | No | Active |
| CH4444 | 4 | Yes | No | No | Active |
| CH5555 | 4 | Yes | Yes | No | Active |
| CH6555 | 6 | Yes | Yes | No | Active |
| CR12 | 12 | Yes | No | No | Active |
Calibrate runs a full cycle so the fuel gauge reports true capacity. Set SoC 25% parks packs at storage charge for shipping.
Connectors
| Part | What it is |
|---|---|
| 610005 | Straight Connector - TE Part Number: 5787446-1 |
| 610007 | 90° Connector with Right-Hand Key - TE Part Number: 5787422-1 |
| 610018 | 90° Connector with Left-Hand Key - TE Part Number 5787428-1 |
| BL237A | Connector Mounting Circuit Board |
| EB397A | Connector Board with Ideal Diode Circuit. |
Cables
| Part | What it is |
|---|---|
| 629028 | 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries. |
| 629030 | 3', 2-Conductor coiled cable |
Accessories
| Part | What it is |
|---|---|
| 936186 | Travel / dust cap for 205x range batteries |
| ATA004N | USB-to-SMBus smart battery interface with “Y” USB/Battery cable. |
| MCL205VC Car Charger | No description published. |
Compare with its family
Volume pricing available on every part.
 NH3057QE34 This part |  ND2057QE34 Same family |  NH2057QE34 Same family |  NF2047QE34 Same series |  ND2017QE34 Same series | |
|---|---|---|---|---|---|
| Voltage | 7.2 V | 7.2 V | 7.2 V | 7.2 V | 7.2 V |
| Capacity | 13.6 Ah | 6.8 Ah (differs) | 13.6 Ah | 10.2 Ah (differs) | 6.8 Ah (differs) |
| Energy | 98 Wh | 49 Wh (differs) | 98 Wh | 73 Wh (differs) | 49 Wh (differs) |
| Max discharge | 12 A | 8 A (differs) | 10 A (differs) | 10 A (differs) | 3 A (differs) |
| Power | 60 W | 40 W (differs) | 50 W (differs) | 50 W (differs) | 15 W (differs) |
| Cells | 8 × 18650 | 4 × 18650 (differs) | 8 × 18650 | 6 × 18650 (differs) | 4 × 18650 (differs) |
| Configuration | 2S4P | 2S2P (differs) | 2S4P | 2S3P (differs) | 2S2P (differs) |
| Dimensions (mm) | 150.37 × 77.39 × 22.51 | 86.4 × 78.7 × 23.02 (differs) | 153 × 78.7 × 23 (differs) | 151.1 × 59.02 × 22.4 (differs) | 144.65 × 37.59 × 20.07 (differs) |
| Volume (mm³) | 261,952 | 156,529 (differs) | 276,945 (differs) | 199,761 (differs) | 109,128 (differs) |
| Weight | 435 g | 240 g (differs) | 435 g | 349 g (differs) | 220 g (differs) |
| Gravimetric density | 225 Wh per kg | 204 Wh per kg (differs) | 225 Wh per kg | 209 Wh per kg (differs) | 223 Wh per kg (differs) |
| Discharge temperature | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C | −20 °C to +60 °C |
| SoC display | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Always on 5-Bar LCD | Push button 4-bar LED (differs) |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | AMP P/N 5787422-1 or 5787446-1 | 5-Pin Standard Connector (differs) |
| Price, qty 1-11 | $195.31 | $123.24 | $192.31 | $156.54 | $123.24 |
This part, NH3057QE34Differs from the NH3057QE34
Documents
Need a STEP model, drawing or test data that is not listed? Contact us.
Application notes
From the current catalog
NH3057QE34 Smart Lithium-Ion Battery: Capable of higher discharge rates than NH2057 smart battery packs, the NH3057QE34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LCD display for relative SOC indication.
With its’ 12A discharge capability, the NH3057QE34 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Inspired Energy's rechargeable smart lithium-ion battery packs can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current.
This Battery Complies with the following: EMC Directive, UKCA Directive, Battery Directive, RoHS3 & REACH Directives, and WEEE Directive.
NH3057QE34 Smart Li-ion battery customization options:
- Custom label
- Custom Firmware
- Additional performance options for OEM applications The NH3057QE34 is our newest model, designed to outperform the previous NH2057ED34 model.
